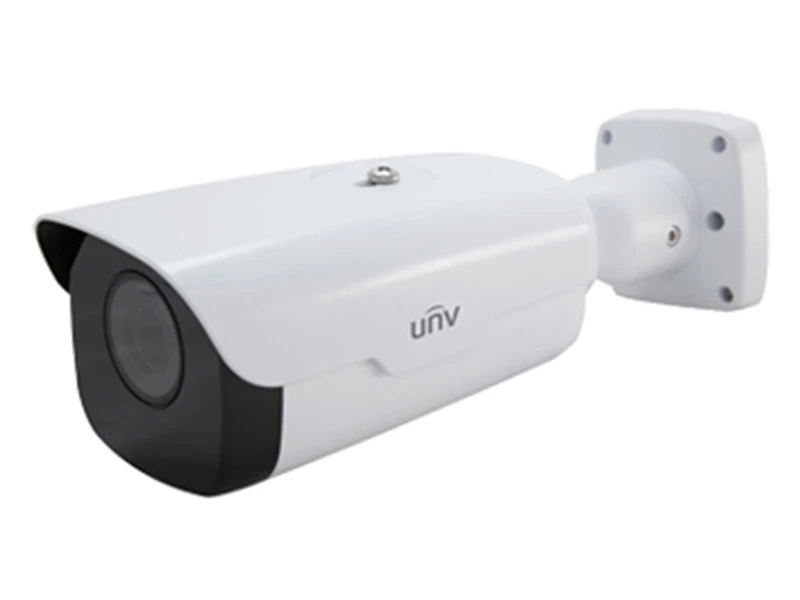

Uniview IPC268ER9 DZ IP HD Bullet Kamera
Özellikler
- Day/night functionality
- Smart IR, up to up to 100m (328 ft) IR distance
- Up to 120 dB Optical WDR(Wide Dynamic Range)
- 3D DNR (Digital Noise Reduction)
- Optical glass window with higher light transmittance
- H.265, H.264, MJPEG
- Embedded smart algorithm
- Triple streams
- ROI (Region of Interest)
- 9:16 corridor mode
- Customized OSD
- ONVIF Conformance
- Wide temperature range: -40°C to 60°C (-40°F to 140°F)
- Wide voltage range of ±25%
- IP67
Teknik Özellikler
| Camera | |
| Sensor | 1/2.5", 8 megapixel, progressive scan CMOS |
| Lens | 2.8~12mm@F1.6, P-Iris |
| Angle of View (H) | 110° (wide)~ 36° (tele) |
| Shutter | Auto/Manual, 1/6~1/100000s |
| Min. Illumination | Colour: 0.02 Lux (F1.6, AGC ON) |
| 0 Lux with IR | |
| IR Range | Smart-IR ,up to 100m (328ft) IR range |
| Day/Night | IR-cut filter with auto switch (ICR) |
| S/N | >55dB |
| WDR | True WDR 120dB |
| Video | |
| Max. Resolution | 3840×2160 |
| Video Compression | H.265, H.264, MJPEG |
| Frame Rate | 4K (3840×2160): Max.30 fps; 1080P (1920×1080): Max. 30 fps |
| Video Streaming | Triple |
| 9:16 Corridor Mode | Supported |
| ROI | Supported |
| HLC | Supported |
| Evaluative Metering | Supported |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 8 areas |
| Smart | |
| Behavior Detection | Intrusion, crossing line, motion detection |
| Exception Detection | Audio detection |
| Intelligent Identification | Face detection, Defocus, Scene Change |
| Statistical Analysis | People counting |
| Audio | |
| Audio Compression | G.711 |
| Two-way audio | Supported |
| Storage | |
| Edge Storage | Micro SD, Up to 128 GB |
| Network | |
| Protocols | L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x |
| Compatible Integration | ONVIF, API |
| Interface | |
| Audio I/O | Audio cable |
| 1 Input: impedance 35 kΩ; amplitude 2 V [p-p] | |
| 1 Output: impedance 600 Ω; amplitude 2 V [p-p] | |
| Alarm I/O | 2/1 |
| Serial Port | 1 RS485 |
| Network | 1 RJ45, 10M/100M Base-TX Ethernet |
| Video Output | 1 BNC, impedance 75 Ω; amplitude 1 V [p-p] |
| Reset Button | Supported |
| General | |
| Power | DC12V±25%, AC24V±25% or PoE (IEEE802.3 at) |
| Power consumption: Max. 15W | |
| Dimensions (L × W × H) | 305.5 ×104.1 ×97.3mm (12.0” × 4.1” × 3.8”) |
| Material | Cast aluminum |
| Weight | 1.65 kg (3.6 lb) |
| Working Environment | -40°C ~ +60°C (-40°F ~ 140°F), Humidity ≤ 95% RH(non-condensing) |
| Ingress Protection | IP67 |
Uniview IPC268ER9 DZ IP HD Bullet Kamera Pdf Dosyası404.82 KB
Teknik Kısa
Depolama : Var
Çözünürlük : 8MP
