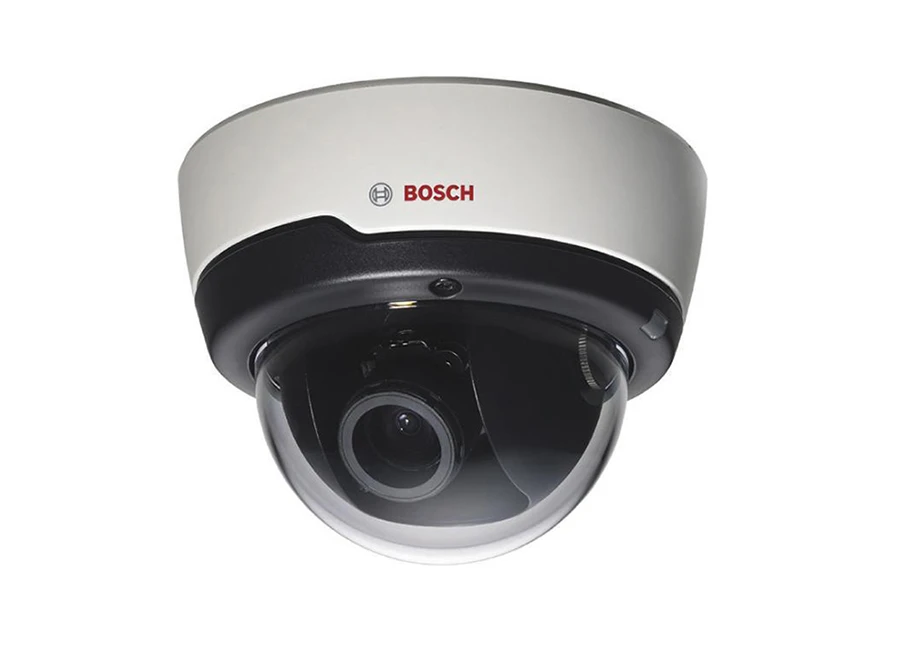

Bosch NIN 40012 V3 IP Dome Kamera
Teknik Özellikler
| Video | |
| Sensor Type | 1/2.7" CMOS |
| Pixels | 1280 x 720 |
| Sensitivity | At 3200 K, reflectivity 89%, 30IRE, F1.3: 0.24 lux (color), 0.05 lux (mono |
| Dynamic Range | 76 dB |
| True Day/NightControl | Auto, Color, Monochrome |
| Shutter Speed | Automatic Electronic Shutter (AES) |
| Fixed (1/30 [1/25] to 1/15,000) | |
| Video Resolution | 720p, 432p, 288p, 144p |
| Aspect Ratio | 16:09 |
| Video Compression | H.264 MP (Main Profile); M-JPEG |
| Frame Rate | 30 ips (M-JPEG frame rate can vary depending on system loading) |
| Video Setting | Video watermarking, Alarm mode stamping, Image mirror, Image flip, Contrast, Saturation, Brightness, White balance, |
| Sharpness level, Contrast enhancement, Backlight compensation, Privacy mask, Motion detection, Tamper alarm, Upright mode, Pixel counter | |
| Lens | |
| Lens Type | Varifocal 3-10 mm, DC Iris F1.3-360 |
| Lens Mount | Board mounted |
| Field of View | Horizontal: 36 to 117° |
| Vertical: 20 to 61° | |
| Input/Output | |
| Analog Video Output | 2.5 mm jack (1 Vpp CVBS) |
| Alarm Input | Short or 5 VDC activation |
| Relay Output | Input rating: maximum 1 A, 24 VAC/VDC |
| Audio Input | Built-in microphone |
| Line-in jack connector | |
| Audio Output | Line-out jack connector |
| Streaming Performance | |
| Audio Streaming | Full duplex / half duplex |
| Signal-to-NoiseRatio | >50 dB |
| Storage | |
| Local Storage | 10 sec pre-alarm recording |
| Memory Card Slot | Supports up to 32 GB microSDHC / 2 TB microSDXC card (SD card of Class 6 or higher is recommended for HD recording) |
| Recording | Continuous recording, ring recording, alarm/events/schedule recording |
| Software | |
| Unit Configuration | Via Web browser or Configuration Manager |
| Firmware Updates | Remotely programmable |
| Viewer | Bosch Video Client |
| Network | |
| Protocols | IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/ RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, Telnet, |
| ARP, DHCP, SNTP, SNMP (V1, MIB‑II), 802.1x, DNS, DNSv6, DDNS, SMTP, iSCSI, UPnP (SSDP), | |
| DiffServ (QoS), LLDP, SOAP, Dropbox, CHAP, Digest Authentication | |
| Encryption | TLS 1.0, SSL, DES, 3DES, AES (optional) |
| Ethernet | 10/100 Base-T, auto-sensing, half/full duplex |
| Ethernet Connector | RJ45 |
| Connectivity | ONVIF Profile S, Auto-MDIX |
| Environmental | |
| Operating Temperature | -4 to +122°F (-20 to +50°C) |
| Storage Temperature | -4 to +158°F (-20 to +70°C) |
| Humidity | 20 to 90% relative humidity (non-condensing) |
| Electrical | |
| Input Voltage | +12 VDC or Power-over-Ethernet (48 VDC nominal) |
| Power Consumption | 4.5 W maximum |
| PoE | IEEE 802.3af (802.3at Type 1) |
| Power Level: Class 1 | |
| Power Supply | 100-240 VAC to +12 VDC power supply unit included |
Teknik Kısa
Çözünürlük : 1MP (720P)
