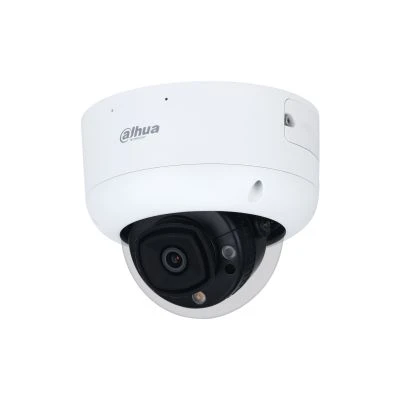

Dahua IPC-HDBW5541R1-AS-PV IP Dome Kamera

Özellikler

5MP, 1/2.7” CMOS image sensor, low illuminance, high image definition.
Outputs max. 5MP (2592 × 1944) @20 fps, and supports 4MP (2688 × 1520) @25/30 fps.
Built-in high-efficiency warm light and IR LED, and Max. IR distance: 50 m.
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Sound and light alarm linkage. When the alarm is triggered, the sound and light will be linked.
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic and speaker, support two-way talk.
12V DC/PoE power supply.
IP67, IK10 protection.
SMD 3.0.

Teknik Özellikler

Camera
Image Sensor	1/2.7”5Megapixel progressive CMOS
Max. Resolution	2592 (H) × 1944 (V)
ROM	128 M
RAM	512 M
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s
Min. Illumination	0.005 Lux@F1.6 (Color, 30 IRE)
	0.0005 Lux@F1.6 (B/W, 30 IRE)
	0 Lux (Illuminator on)
S/N Ratio	>56 dB
Illumination Distance	50 m (164.0 ft)
Illuminator On/Off Control	Auto/Manual
Illuminator Number	2 (IR LED); 1 (Warm light)
Pan/Tilt/Rotation Range	Pan: 0°–355°
	Tilt: 0°–80°
	Rotation: 0°–355°
Lens
Lens Type	Fixed-focal
Mount Type	M12
Focal Length	2.8 mm; 3.6 mm; 6 mm
Max. Aperture	2.8 mm: F1.6
	3.6 mm: F1.6
	6 mm: F1.6
Field of View	2.8 mm: Horizontal 98° × Vertical 71° × Diagonal 129°
	3.6 mm: Horizontal 80° × Vertical 58° × Diagonal 107°
	6 mm: Horizontal 50° × Vertical 37° × Diagonal 64°
Iris Type	Fixed
Close Focus Distance	2.8 mm: 0.9 m (3.0 ft)
	3.6 mm: 1.6 m (5.2 ft)
	6 mm: 3.2 m (10.5 ft)
DORI Distance	Lens	Detect	Observe	Recognize	Identify
	2.8mm	56.0 m	22.4 m	11.2 m	5.6 m
		(183.7 ft)	(73.5 ft)	(36.7 ft)	(18.4 ft)
	3.6mm	80.0 m	32.0 m	16.0 m	8.0 m
		(262.5 ft)	(105.0 ft)	(52.5 ft)	(26.2 ft)
	6mm	120.0 m	48.0 m	24.0 m	12.0 m
		(393.7 ft)	(157.5 ft)	(78.7 ft)	(39.4 ft)
Smart event
IVS	Abandoned object; missing object
Heat Map	Yes
Professional, intelligent
IVS (Perimeter Protection)	Tripwire; intrusion; fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection; people gathering; parking detection
Face Detection	Face detection; track; optimization; snapshot; face enhancement; face exposure; face matting setting: face, single inch photo; three snapshot methods: real-time snapshot, optimization snapshot, quality priority; face angle filter; optimization time setting
People Counting	Support the counting of enter number, leave number and pass number, and displaying and outputting yearly/ monthly/daily reports Support the counting of number in area, and 4 rules configuration Count number of people or stay time and link alarm Support queue management, and 4 rules configuration. Count number of people or stay time and link alarm
Intelligent Search	Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Video
Video Compression	H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codec	Smart H.265+/Smart H.264+
Video Frame Rate	Main stream: 2592 × 1944@(1-20 fps)/2688 × 1520@(1-25/30 fps) /1920 × 1080@(1-50/60 fps)
	Sub stream: (704 × 576@1-50 fps/704 × 480@1-60 fps)
	Third stream: (1920 × 1080@1-25/30 fps)
	*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability	3 streams
Resolution	5M (2592 × 1944); 4M (2688 × 1520); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control	CBR/VBR
Video Bit Rate	H.264: 32 kbps–8192 kbps
	H.265: 12 kbps–8192 kbps
Day/Night	Auto (ICR)/Color/B/W
BLC	Yes
HLC	Yes
WDR	120 dB
Scene Self-adaptation (SSA)	Yes
White Balance	Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control	Auto/Manual
Noise Reduction	3D NR
Motion Detection	OFF/ON (4 areas)
Region of Interest (RoI)	Yes (4 areas)
Smart Illumination	Yes
Defog	Yes
Image Rotation	°/90°/180°/270° (Support 90°/270° with 4M resolution and lower)
Mirror	Yes
Privacy Masking	8 areas
Audio
Built-in MIC	Yes
Audio Compression	PCM; G.711a; G.711Mu; G.726; G.723
Alarm
Alarm Event	No SD card; SD card full; SD card error; service life warning; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; defocus detection; external alarm; face detection; people counting in area; stay alarm; people counting; people No. exception detection; safety exception; light alarm; sound alarm (21 built-in sounds and custom voices importing)
Network
Network	RJ-45 (10/100 Base-T)
SDK and API	Yes
Cyber Security	Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Protocol	IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; Bonjour
Interoperability	ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec
User/Host	20 (Total bandwidth: 80 M)
Storage	FTP; SFTP; Micro SD card (support max. 256 G); NAS
Browser	IE: IE8, IE9, IE11
	Chrome
	Firefox
Management Software	Smart PSS; DSS; DMSS
Mobile Phone	IOS; Android
Certification
Certification	CE-LVD: EN62368-1
	CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
	FCC: 47 CFR FCC Part 15, Subpart B
	UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Port
Audio Input	1 channel (RCA port)
Audio Output	1 channel (RCA port)
Alarm Input	1 channel in: 5mA 3V–5V DC
Alarm Output	1 channel out: 300mA 12V DC
Power
Power Supply	12V DC (±30%)/PoE (802.3af)
Power Consumption	Basic power consumption: 1.9W (12V DC); 2.5W (PoE)
	Max. power consumption (WDR + H.265 + IR full intensity + white light + max. speaker volume): 8.9W (12V DC); 9.6W (PoE)
Environment
Operating Conditions	–40°C to +60°C (–40°F to +140°F)/Less than 95% RH
Strorage Conditions	–40°C to +60°C (–40°F to +140°F)
Protection Grade	IP67; IK10
Structure
Casing	Metal
Dimensions	105 mm × Φ126 mm (4.1" × Φ5.0")
Net Weight	716.4 g (1.6 lb)
Gross Weight	929.7 g (2.0 lb)
