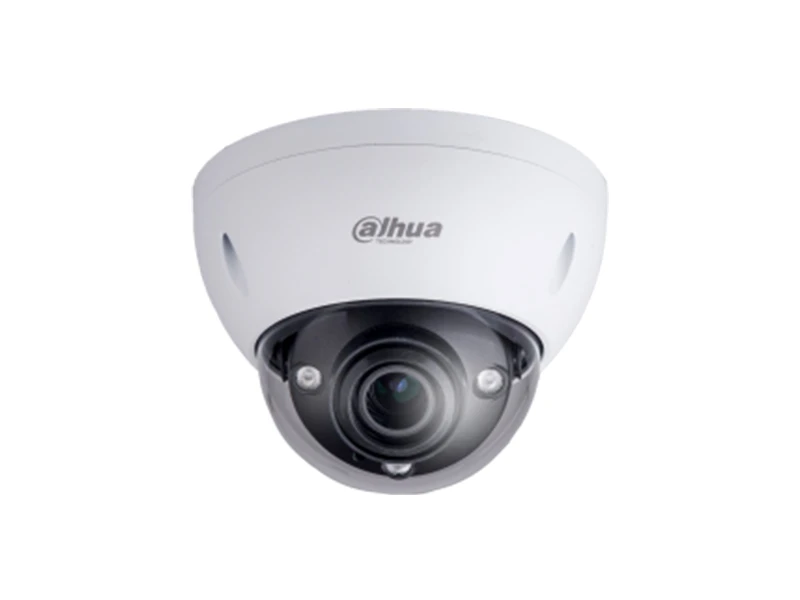

Dahua IPC HDBW81230E Z IP Dome Kamera
Özellikler
- 1/1.7” 12Megapixel progressive scan STARVIS™ CMOS
- H.265&H.264 triple-stream encoding
- 20fps@12M(4000×3000),25/30fps@4K(3840×2160)
- DWDR, Day/Night(ICR), 3DNR,AWB,AGC,BLC
- Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
- 4.1mm ~16.4mm motorized lens
- Max. IR LEDs Length 50m
- Micro SD memory,IP67,IK10,PoE+
Teknik Özellikler
| Camera | |||||
| Image Sensor | 1/1.7” 12Megapixel progressivescan CMOS | ||||
| Effective Pixels | 4000(H)x3000(V) | ||||
| RAM/ROM | 1024MB/128MB | ||||
| Scanning System | Progressive | ||||
| Electronic Shutter Speed | Auto/Manual, 1/3~1/100000s | ||||
| Minimum Illumination | 0.01Lux/F1.53(Color,1/3s,30IRE) 0.1Lux/F1.53(Color,1/30s,30IRE) 0Lux/F1.53(IR on) | ||||
| S/N Ratio | More than 50dB | ||||
| IR Distance | Distance up to 50m(164ft) | ||||
| IR On/Off Control | Auto/ Manual | ||||
| IR LEDs | 3 | ||||
| Lens | |||||
| Lens Type | Motorized /Auto Iris(HALL) | ||||
| Mount Type | Board-in | ||||
| Focal Length | 4.1~16.4mm motorized | ||||
| Max. Aperture | F1.53 | ||||
| Angle of View | H: 105˚~35 ˚ V:77 ˚ ~26˚ | ||||
| Optical Zoom | 4x | ||||
| Focus Control | Motorized | ||||
| Close Focus Distance | 1m(3.28ft) | ||||
| DORI Distance | Lens | Detect | Observe | Recognize | Identify |
| W | 115m(377ft) | 46m(151ft) | 23m(75ft) | 11m(36ft) | |
| T | 227m(909ft) | 111m(364ft) | 55m(180ft) | 28m(92ft) | |
| Pan/Tilt/Rotation | |||||
| Pan/Tilt/Rotation Range | Pan:0˚~355˚; Tilt:0˚~65˚; Rotation:0˚~355˚ | ||||
| Intelligence | |||||
| IVS | Tripwire, Intrusion, Object Abandoned/Missing | ||||
| Advanced Intelligent Functions | Face Detection, People Counting, Heat Map | ||||
| Video | |||||
| Compression | H.265+/H.265/H.264+/H.264 | ||||
| Streaming Capability | 3 Streams | ||||
| Resolution | 12M(4000x3000)/ 4K(3840x2160)/6M(3072x2048)/ 5M(2560x1920)/
3M(2048x1536)/ 3M(2304x1296)/1080P(1920×1080)/ 1.3M(1280x960)/
720P(1280x720)/ D1(704×576/704x480) / VGA(640x480)/ CIF(352×288/342x240) | ||||
| Frame Rate | Main Stream: 12M(1~20fps)/ 4K(1~25/30fps) | ||||
| Sub Stream: D1 (1 ~ 25/30fps) | |||||
| Third Stream: 1080P(1~25/30fps) | |||||
| Bit Rate Control | CBR/VBR | ||||
| Bit Rate | H.264: 24~ 16384Kbps H.265: 14~ 9984Kbps | ||||
| Day/Night | Auto(ICR) / Color / B/W | ||||
| BLC Mode | BLC / HLC / DWDR/ SSA | ||||
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual | ||||
| Gain Control | Auto/Manual | ||||
| Noise Reduction | 3D DNR | ||||
| Motion Detetion | Off / On (4 Zone, Rectangle) | ||||
| Region of Interest | Off / On (4 Zone) | ||||
| Electronic Image Stabilization(EIS) | Support | ||||
| Smart IR | Support | ||||
| Defog | Support | ||||
| Digital Zoom | 16x | ||||
| Flip | °/90°/180°/270° | ||||
| Mirror | Off / On | ||||
| Privacy Masking | Off / On (4 Area, Rectangle) | ||||
| Audio | |||||
| Compression | G.711a/G.711Mu/AAC/ G.726 | ||||
| Network | |||||
| Ethernet | RJ-45 (100/1000Base-T) | ||||
| Protocol | |||||
| Interoperability | ONVIF, PSIA, CGI | ||||
| Streaming Method | Unicast / Multicast | ||||
| Max. User Access | 10 Users/20 Users | ||||
| Edge Storage | NAS | ||||
| Local PC for instant recording | |||||
| Mirco SD card 128GB | |||||
| Web Viewer | IE, Chrome, Firefox, Safari | ||||
| Management Software | Smart PSS, DSS, Easy4ip | ||||
| Smart Phone | IOS, Android | ||||
| Certifications | |||||
| Certifications | CE (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15 Subpart B | ||||
| Interface | |||||
| Video Interface | 1 Port(For adjustment only) | ||||
| Audio Interface | 1/1 channel In/Out | ||||
| RS485 | N/A | ||||
| Alarm | 1 channel In: 5mA 5VDC | ||||
| 1 channel Out: 1A 30VDC / 0.5A 50VAC | |||||
| Electrical | |||||
| Power Supply | DC12V,AC24V, PoE+ (802.3at)(Class 4) | ||||
| Power Consumption | <18w td=""> | ||||
| Environmental | |||||
| Operating Conditions | -40° C ~ +60° C (-40° F ~ +140° F) /Less than 95% RH | ||||
| Strorage Conditions | -40° C ~ +60° C (-40° F ~ +140° F) /Less than 95% RH | ||||
| Ingress Protection | IP67 | ||||
| Vandal Resistance | IK10 | ||||
| Construction | |||||
| Casing | Metal | ||||
| Dimensions | Φ159.1mm×117.9mm(Φ6.26”×4.64”) | ||||
| Net Weight | 0.96kg(2.12lb) | ||||
| Gross Weight | 1.75 kg(3.56lb) | ||||
