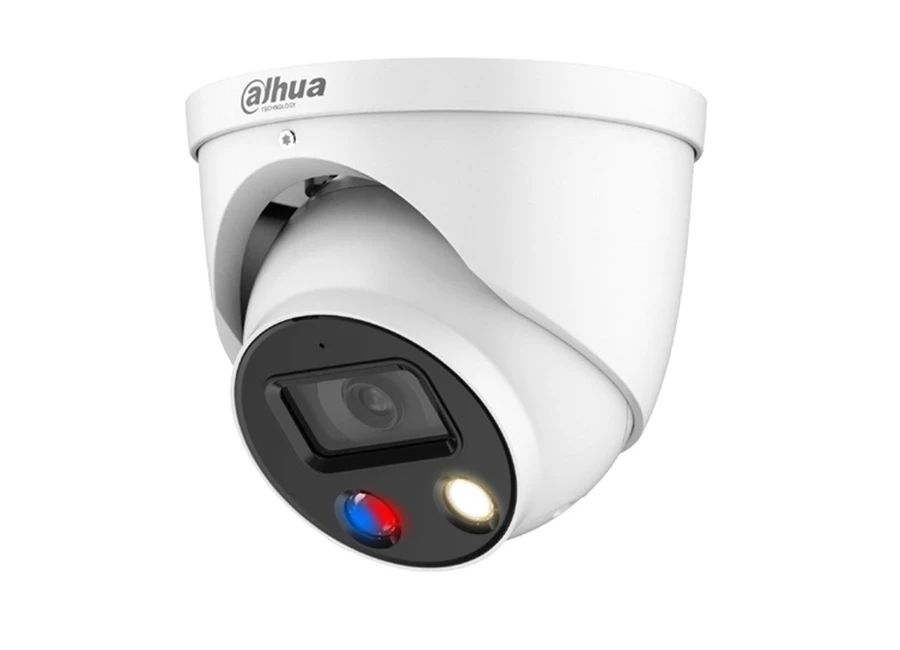

Dahua IPC-HDW3849H-AS-PV IP Eyeball Kamera

Özellikler

8MP, 1/2.8” CMOS image sensor, low illuminance, high image definition
Outputs max.8MP (3840 × 2160) @20 fps (AI function enabled by default)and supports 8MP (3840 × 2160) @25/30 fps (when AI function disabled)
H.265 codec, high compression rate, low bit rate
Built-in warm illuminator, and the max. illumination distance: 30 m
ROI, Smart H.265+/Smart H.264+, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent detection: Intrusion, tripwire (support the classification and · accurate detection of vehicle and human)
Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
Supports sound and light alarm linkage. When an alarm is triggered, the camera links sound alarm and light flashing
Supports one-tap disarming. You can disarm the events of alarm output, sending email, audio, and light in the configured period
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic and speaker
12V DC/PoE power supply
IP67 protection
SMD Plus
Red and blue flashlight alarm

Teknik Özellikler

Camera
Image Sensor	1/2.8”8Megapixel progressive CMOS
Max. Resolution	3840(H) × 2160 (V)
ROM	128 MB
RAM	512 MB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s
Min. Illumination	0.007 Lux @ F1.4
S/N Ratio	>56 dB
Illumination Distance	30 m (98.4 ft)
Illuminator On/Off Control	Auto/Manual
Illuminator Number	1 (Warm light)
Pan/Tilt/Rotation Range	Pan: 0°–360°
	Tilt: 0°–78°
	Rotation: 0°–360°
Lens
Lens Type	Fixed-focal
Mount Type	M12
Focal Length	2.8 mm; 3.6 mm
Max. Aperture	F1.4
Field of View	2.8 mm: Horizontal 107° × Vertical 56° × Diagonal 127°
	3.6 mm: Horizontal 89° × Vertical 46° × Diagonal 102°
Iris Type	Fixed
Close Focus Distance	2.8 mm: 1.5 m (4.9 ft)
	3.6 mm: 2.2m (7.2 ft)
DORI Distance	Lens	Detect	Observe	Recognize	Identify
	2.8 mm	87.7m(287.7 ft)	35.1 m( 115.2 ft)	17.5m(57.4 ft)	8.8m(28.8 ft)
	3.6 mm	110.3m(361.8 ft)	44.1m(144.7ft)	22.1m(72.5 ft)	11m(36 ft)
Professional, intelligent
IVS (Perimeter Protection)	Tripwire; intrusion (support the classification and accurate detection of vehicle and human)
Intelligent Search	Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Video
Video Compression	H.265; H.264; H.264H; H.264B; MJPEG(only supported by the sub stream)
Smart Codec	Smart H.265+/Smart H.264+
Video Frame Rate	Main stream:
	3840 × 2160 @(1–20 fps by default)
	3840 × 2160 @(1–25/30 fps when AI function disabled)
	sub stream: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps)
	third stream:1280 × 1080 @ (1–25/30 fps)
Stream Capability	3 streams
Resolution	8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1(704 × 576/704 × 480);
	VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control	CBR/VBR
Video Bit Rate	H.264: 32 kbps–8192 kbps
	H.265: 12 kbps–8192 kbps
Day/Night	Color/B/W
BLC	Yes
HLC	Yes
WDR	120 dB
Scene Self-adaptation	Yes
White Balance	Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control	Auto/Manual
Noise Reduction	3D NR
Motion Detection	OFF/ON (4 areas)
Region of Interest (RoI)	Yes (4 areas)
Smart Illumination	Yes
Image Rotation	°/90°/180°/270° (Support with 1920 × 1080 resolution and lower)
Mirror	Yes
Privacy Masking	4 areas
Audio
Built-in MIC	Yes
Audio Compression	PCM; G.711a; G.711Mu; G.726; AAC; G.723
Alarm
Alarm Event	No SD card; SD card full; SD card error; service life warning (supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; external alarm; SMD; safety exception; light alarm; sound alarm (11 built-in sounds and custom voices importing)importing)
Network
Network	RJ-45 (10/100 Base-T)
SDK and API	Yes
Protocol	IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP
Interoperability	ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P
User/Host	20 (Total bandwidth: 80 M)
Storage	FTP; SFTP; Micro SD card (support max. 256 G); Dahua Colud; NAS
Browser	IE: IE8 and later
	Chrome
	Firefox
	Safari: Safari 12 and later
Management Software	Smart PSS; DSS; DMSS
Mobile Phone	IOS; Android
Certification
Certification	CE-LVD: EN62368-1
	CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
	FCC: 47 CFR FCC Part 15, Subpart B
Port
Audio Input	1 channel (RCA port)
Audio Output	1 channel (RCA port)
Alarm Input	1 channel in: 5mA 3V–5V DC
Alarm Output	1 channel out: 300mA 12V DC
Power
Power Supply	12V DC/PoE (802.3af)
Power Consumption	Basic power consumption: 3.1W (DC12V); 3.5W (POE)Max. power consumption (WDR + H.265 + red and blue lights flashing alternately + warm light + sound alarm): 7.8W (DC12V); 8.2W (POE)
Environment
Operating Conditions	–40°C to +60°C (–40°F to +140°F)/Less than 95% RH
Storage Conditions	–40°C to +60°C (–40°F to +140°F)
Protection Grade	IP67
Structure
Casing	Metal
Dimensions	Φ122.0 mm × 110.9 mm (4.8" × 4.4")
Net Weight	754 g (1.7 lb)
Gross Weight	915 g (2.0 lb)
