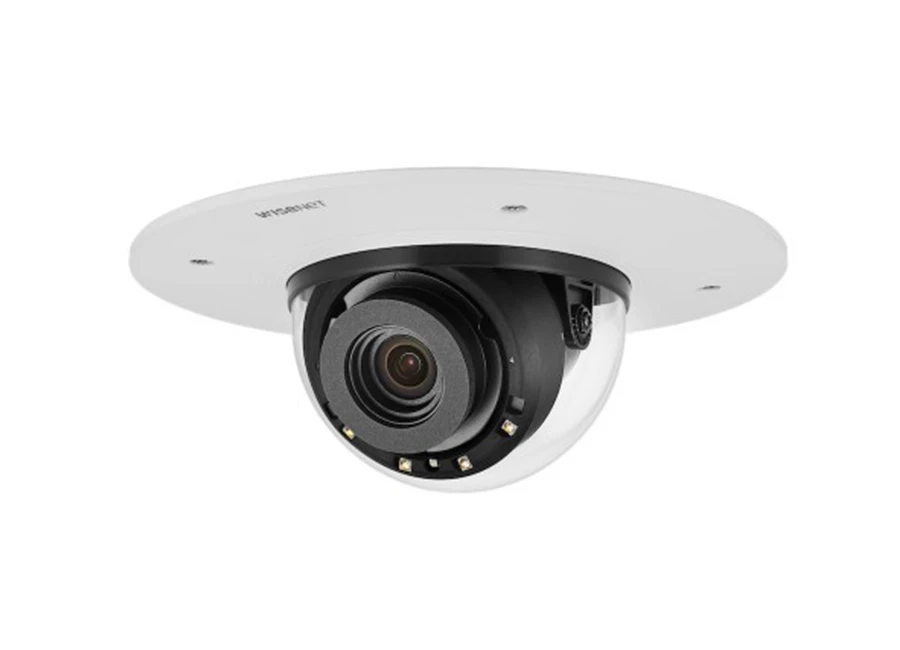

Hanwha Techwin PND-A9081RF IP Dome Kamera
Özellikler
- Max. 4K resolution
- 0.05Lux@F1.6 (Colour), 0Lux (B/W, IR LED on)
- Day & Night(ICR), WDR(120dB)
- H.265, H.264, MJPEG codec, WiseStreamII
- Video Analytics based on Deep Learning
- Artificial Intelligence (AI)
- Compatible with Wisenet Retail Insight v2.0 for Business Intelligence
Teknik Özellikler
| Video | |
| Imaging Device | 1/1.8" CMOS |
| Resolution | 3840x2160, 3072x1728, 2592x1944, 2688x1520, 2560x1440, 2048x1536, 1920x1080, 1600x1200, 1280x1024,1280x960, 1280x720, 1024x768, |
| 800 x 600, 800 x 448, 720 x 576, 720x480, 640x480, 640x360 | |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) |
| MJPEG: Max. 15fps/12fps(60Hz/50Hz) | |
| Min. Illumination | Color: 0.05Lux(F1.6, 1/30sec) |
| BW: 0Lux(IR LED on) | |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation |
| USB: Micro USB Type B, 1280x720 for installation | |
| Lens | |
| Focal Length (Zoom Ratio) | 4.5~10mm(2.2x) motorized varifocal |
| Max. Aperture Ratio | F1.6(Wide)~F2.65(Tele) |
| Angular Field of View | H:101.4°(Wide)~45.5°(Tele) / V:53.6°(Wide)~25.5°(Tele) / D:120.7°(Wide)~52.3°(Tele) |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Simple focus |
| Lens Type | DC auto iris, P iris |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | ˚~360˚ / -45˚~85˚ / 0˚~355˚ |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, DWDR, SSDR |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Stabilization Support(built-in gyro sensor) |
| Motion Detection | 8ea, polygonal zones |
| Privacy Masking | 6ea, rectangle zones |
| - Color: Gray/Green/Red/Blue/Black/White | |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
| Analytics | - Classified object type : Person/Face/Vehicle/License plate with attributes, BestShot per object |
| - Analytics events based on AI engine : Object detection, Face mask detection, Directional detection, Digital auto tracking, Enter/Exit, Loitering, Virtual line | |
| - Analytics events : Defocus detection, Motion detection, Appear/Disappear, Tampering, Audio detection, Sound classification, Shock detection | |
| Business Intelligence | People counting, Queue management, Heatmap based on AI engine |
| Alarm I/O | Input 1ea / Output 1ea / DC 12V Power(Max. 50mA) 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail |
| Notification via e-mail | |
| SD/SDHC/SDXC or NAS recording at event triggers | |
| Alarm output | |
| Handover | |
| Audio playback | |
| Audio In | Selectable(mic in/line in) |
| Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm | |
| Audio Out | Line out, Max.output level: 1Vrms |
| IR Viewable Length | 30m(98.42ft) |
| Network | |
| Ethernet | Metal shielded RJ-45(10/100/1000 BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable |
| G.726(ADPCM) 8KHz, G.711 8KHz | |
| G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps | |
| AAC-LC: 48Kbps at 16KHz | |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR |
| MJPEG: VBR | |
| Streaming | Unicast(6 users) / Multicast |
| Multiple streaming(Up to 3 profiles) | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast) |
| Security | HTTPS(SSL) Login Authentication |
| Digest Login Authentication | |
| IP Address Filtering | |
| User access log | |
| 802.1X Authentication(EAP-TLS, EAP-LEAP) | |
| Device Certificate(Hanwha Techwin Root CA) | |
| Application Programming Interface | ONVIF Profile S/G/T |
| SUNAPI(HTTP API) | |
| Wisenet open platform | |
| General | |
| Webpage Language | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, |
| Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek | |
| Web Viewer | Supported OS: Windows 8.1, 10, Mac OS X 10.12, 10.13, 10.14 |
| Recommended Browser: Google Chrome | |
| Supported Browser : MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only) | |
| Edge Storage | Micro SD/SDHC/SDXC 2slots 512GB |
| Memory | 4096MB RAM, 512MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -25°C ~ +50°C (-13°F ~ +122°F) / Less than 90% RH |
| Storage Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH |
| Certification | IP52, IK10, Plenum rate |
| Input Voltage | PoE+(IEEE802.3at), 12VDC |
| Power Consumption | PoE+: Max 20.00W, typical 16.00W |
| 12VDC: Max 17.70W, typical 14.00W | |
| Mechanical | |
| Color / Material | White / Aluminum |
| RAL Code | RAL9003 |
| Product dimensions / weight | Ø205x163mm(8.07x4.92"), Weight : 1.95Kg (4.30lb) |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | Wide: 62.9m(206.34ft) / Tele: 183m(600.33ft) |
| Observe (63PPM/ 19PPF) | Wide: 25.1m(82.34ft) / Tele: 73.3m(240.46ft) |
| Recognize (125PPM/ 38PPF) | Wide: 12.6m(41.33ft) / Tele: 36.6m(120.07ft) |
| Identify (250PPM/ 76PPF) | Wide: 6.3m(20.67ft) / Tele: 18.3m(60.03ft) |
Hanwha Techwin PND-A9081RF IP Dome Kamera Pdf Dosyası1010.8 KB Teknik Kısa
Depolama : Var
Ses : Var
Çözünürlük : 8MP
Irled : Var
