Açıklama

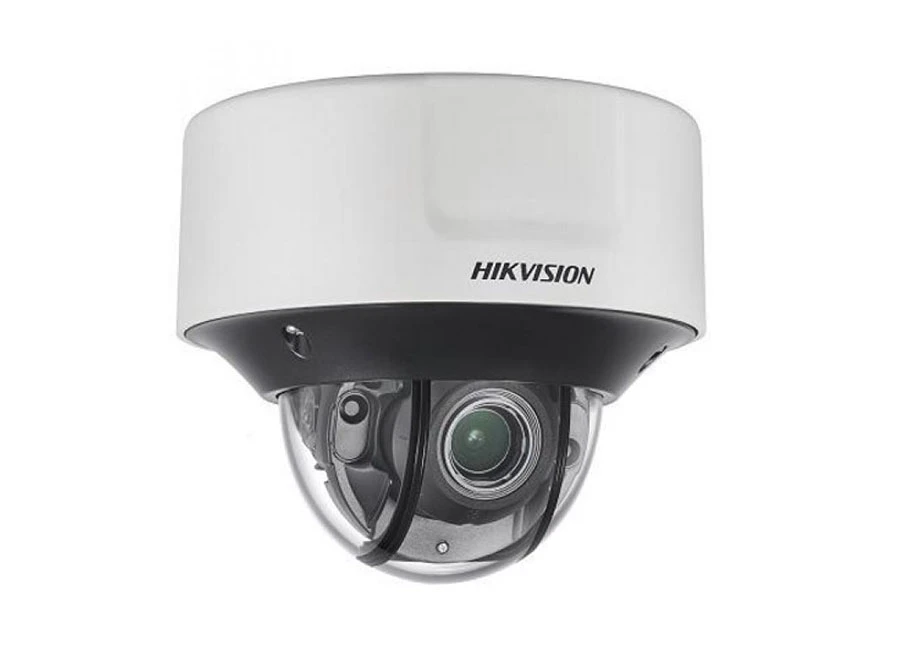

Hikvision DS 2CD55C5G0 IZS IP Dome Kamera
Özellikler
- 1/1.7”Progressive Scan CMOS
- 4000× 3000 @ 20fps
- 2.8 to 12 mm motor-driven lens
- Color 0.008 Lux @ (F1.2, AGC ON)
- H.265, H.265+, H.264, H.264+
- Digital WDR
- 3D DNR
- IR range up to 30 m
- Five streams and up to five custom streams
- 6 behavior analyses, 3exception detection, and face detection
- Built-in microSD/SDHC/SDXC card slot,up to 256 GB
- Alarm I/O
- IP67, IK10
Teknik Özellikler
| Camera | |
| Image Sensor | 1/1.7" Progressive Scan CMOS |
| Signal System | PAL/NTSC |
| Min. Illumination | Color 0.008 Lux @ (F1.2, AGC ON) |
| 0 Lux with IR | |
| Shutter time | 1 s to 1/100,000 s |
| Slow shutter | Yes |
| Lens | 2.8 to 12 mm |
| Lens Mount | Integrated |
| Adjustment Range | Pan 0° to 355°, tilt 0° to 75°, rotate 0° to 355° |
| Day& Night | IR Cut Filter |
| Wide Dynamic Range | Digital WDR |
| Digital noise reduction | 3D DNR |
| Focus | Auto, semi-auto, manual |
| Compression Standard | |
| Video Compression | H.265+/H.265/H.264+/H.264/MJPEG |
| H.264 code profile | Baseline Profile/Main Profile/High Profile |
| Video bit rate | 32Kbps~16Mbps |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio bit rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM) |
| Dual Stream | Yes |
| Triple Streams | Yes |
| Image | |
| Max. Image Resolution | 4000 × 3000 |
| Frame Rate | 50Hz 20fps(4000 × 3000), 25fps (4096 × 2160, 3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 x 720) |
| 60Hz 20fps(4000 × 3000), 30fps (4096 × 2160, 3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 x 720) | |
| Sub Stream | 50Hz 25fps (704 × 576, 640 × 480) |
| 60Hz 30fps (704 × 480, 640 × 480) | |
| Third Stream | 50Hz 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) |
| 60Hz 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) | |
| Image Enhancement | BLC, HLC, Defog, EIS, 3D DNR, Lens Distortion Correction |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser |
| Distortion Correction | Support |
| Target Cropping | Yes |
| BLC | Support |
| HLC | Support |
| Smart Defog | Support |
| EIS | Support |
| 3D DNR | Support |
| ROI | 4 fixed regions for main stream, sub stream, third stream, fourth stream, and fifth stream, and dynamic face tracking |
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24bit bmp format |
| Day/Night Switch | Auto/Schedule/Day/Night/Triggered by Alarm In |
| Network | |
| Network Storage | Support microSD/SDHC/SDXC card (256 GB) local storage and NAS (NFS,SMB/CIFS), ANR |
| Alarm Trigger | Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| General Function | One-key reset, anti-flicker, five streams and up to 5 custom streams, heartbeat, password protection, privacy mask, watermark, IP address filter |
| System Compatibility | ONVIF (Profile S, Profile G), ISAPI |
| Interface | |
| Communication Interface | 1 RJ45 10M/100M/1000M Ethernet port |
| Audio | 1-ch 3.5 mm input (line in), 1-ch 3.5mm output, mono |
| Alarm | 1-ch input, 1-ch output (up to 24 VDC 1A or 110 VAC 500 mA) |
| Alarm Input | 1 |
| Alarm Output | 1 |
| Video Output | 1Vp-p composite output (75 Ω/CVBS) |
| On-board storage | Built-in micro SD/SDHC/SDXC slot, up to 256 GB |
| Reset Button | Yes |
| Audio | |
| Environment Noise Filtering | Support |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz |
| Smart Feature-set | |
| Behavior Analysis | Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal |
| Exception Detections | Scene change detection, audio exception detection, defocus detection |
| Recognition | Face Detection |
| Statistics | Object Counting (Entrance and Exit object number is accounted and showed on screen in real time) |
| General | |
| IR Range | Up to 30 m |
| Operation Condition | -IZS -30 °C to 65 °C (-22 °F to 149 °F), humidity 95% or less (non-condensing) |
| -IZHS -40 °C to 65 °C (-40 °F to 149 °F), humidity 95% or less (non-condensing) | |
| Power Supply | Recommended DC input 12 V, voltage range of 10 to 48 VDC allowed, two-core terminal block |
| Power Consumption | -IZHS |
| With extra load 12 VDC, 1.4 A, max. 17 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A, class 4 | |
| Without extra load 12 VDC, 1.2 A, max. 15 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A, class 4 | |
| “with extra load” means that an extra device is connected to and powered by the camera. | |
| -IZS | |
| With extra load 12 VDC, 1.1 A, max. 12 W; PoE (802.3at, 42.5 V to 57 V), 0.3 A to 0.2 A, class 4 | |
| Without extra load 12 VDC, 0.95 A, max. 10 W; PoE (802.3at, 42.5 V to 57 V), 0.3 A to 0.2 A, class 4 | |
| “with extra load” means that an extra device is connected to and powered by the camera. | |
| Impact Protection | IK10 |
| Weather Proof | IP67 |
| Dimensions | Camera Φ162 × 140.3 mm (Φ6.4″ × 5.5″) |
| With package 251 × 215 × 189 mm (9.9″ × 8.5″ × 7.4″) | |
| Weight | Camera 1500 g (3.31 lb.) |
| With package 1950 g (4.30 lb.) | |
Teknik Kısa
Çözünürlük : 12MP
Ses : Var
Depolama : Var
