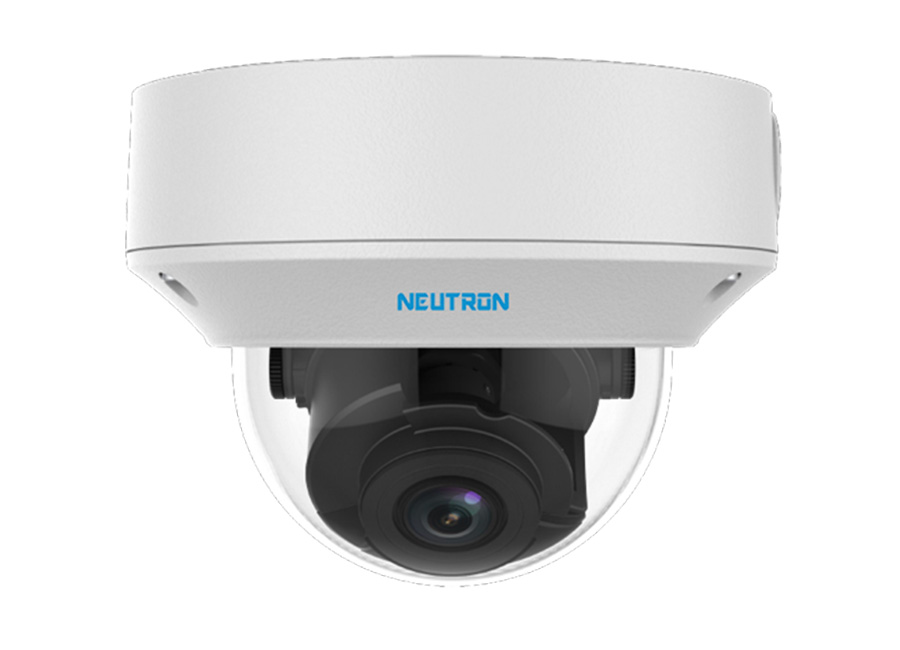

Neutron IPC3232ER DV C IP Dome Kamera

Özellikler

1/2.9", 2 Megapiksel (1920X1080) 30 fps
2.8 mm-12 mm F1.6
ICR ( IR-CUT) Filtre
Ses girisi destegi (IPC3232ER-DV)
120dB True WDR , Smart IR Teknolojisi
IP67,IK10 standartı

Teknik Özellikler

	IPC3232ER-DV-C			IPC3232ER-VS-C
Camera
Sensor	1/2.8", progressive scan ,2.0 megapixel, CMOS
Lens	2.8~12mm@ F1.6
DORI Distance	Lens	Detect(m)	Observe(m)	Recognize(m)	Identify(m)
	2.8mm	45	18	9	4.May
	12mm	192.9	77.1	38.6	19.Mar
Angle of View (H)	94.0°~28°
Angle of View (V)	56.7°~14.4°
Angle of View (O)	122.2°~34.4°
Adjustment angle	Pan: 0°~360°		Tilt: 0°~80°	Rotate: 0°~360°
Shutter	Auto/Manual, 1~1/100000 s
Minimum Illumination	Colour: 0.001 Lux (F1.6, AGC ON)
	0 Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Digital noise reduction	2D/3D DNR
S/N	>52dB
IR Range	Up to 30m (98 ft) IR range
Defog	Digital Defog
WDR	120dB
Video
Video Compression	Ultra 265, H.264, MJPEG
H.264 code profile	Baseline profile, Main Profile, High Profile
Frame Rate	Main Stream:2MP (1920×1080): Max. 30 fps;
	Sub Stream:2MP (1920×1080): Max. 30 fps;
	Third Stream:D1 (720×576): Max. 30 fps
HLC	Supported
BLC	Supported
9:16 Corridor Mode	Supported
OSD	Up to 8 OSDs
Privacy Mask	Up to 8 areas
ROI	Up to 8 areas
Motion Detection	Up to 4 areas
Audio
Audio Compression	G.711			N/A
Two-way audio	Supported			N/A
Suppression	Supported			N/A
Sampling Rate	8 KHZ			N/A
Smart
Behavior Detection	Intrusion, cross line, motion detectio			Intrusion, cross line, motion detectio
Intrusion	Enter and loiter in a pre-defined virtual region
cross line	Cross a pre-defined virtual line
motion detection	Moving within a pre-defined virtual region
Recognition	Face detection、Audio detection			Face detection
Intelligent Identification	Defocus, Scene Change, Object Left, Object Moving
Statistical Analysis	People counting
General Function	Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication			Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Storage
Edge Storage	Micro SD, up to 256 GB
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP
Compatible Integration	ONVIF(Profile S, Profile G, Profile T), API
Interface
Audio I/O	Audio cable			N/A
	Input: impedance 35 kΩ; amplitude 2 V [p-p]			N/A
	Output: impedance 600 Ω; amplitude 2 V [p-p]			N/A
Alarm I/O	1.Oca			N/A
Network	1 RJ45 10M/100M Base-TX Ethernet
Video Output	1 BNC, impedance 75 Ω; amplitude 1 V [p-p]			N/A
General
Power	DC12V±25%, PoE (IEEE802.3 af)
	Power consumption: max. 7.2 W
Dimensions (Ø x H)	Φ148 x 111.3 mm (Ø5.8” x 4.4”)
Weight	0.92 kg (2.0 lb)
Working Environment	-40°C ~ +60°C (-40°F ~ 140°F), Humidity:10%~90% RH(non-condensing)
Ingress Protection	IP67
Vandal Resistant	IK10
Reset Button	Supported
