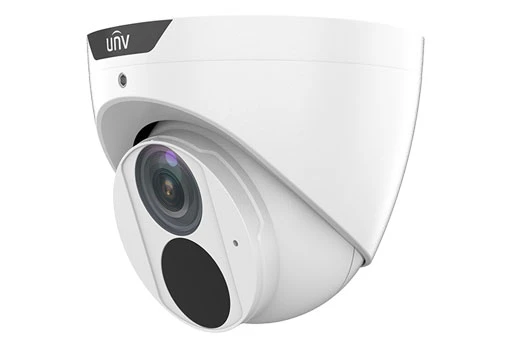

Uniview IPC3615SS-ADF40KM-I0 IP Dome Kamera
Özellikler
- 1/2.7’’, Powered by lighthunter
- Smart IR, up to 40m (131 ft) IR distance
- Up to 120 dB Optical WDR (Wide Dynamic Range)
- Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
- People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
- Ultra 265, H.265, H.264, MJPEG
- Triple streams
- 2592*1944@20fps in the main stream
- ROI (Region of Interest)
- ONVIF Conformance
- Built-in Mic
- DC12V or PoE power supply
- Wide voltage range of ±25% in DC
- Micro SD, up to 256 GB
- IP67 ingress protection
Teknik Özellikler
| Camera | |||||||||
| Sensor | 1/2.7", 5.0 megapixel, progressive scan, CMOS | ||||||||
| Lens |
| ||||||||
| Iris | Fixed | ||||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||||
| 2.8 | 63.0(206.7ft) | 25.2(82.7ft) | 12.6(41.7ft) | 6.3(20.7ft) | |||||
| 4.0 | 90.0(295.3ft) | 36.0(118.1ft) | 18.0(59.1ft) | 9.0(29.5ft) | |||||
| Field of View (H) | 79.6° | ||||||||
| Field of View (V) | 56.6° | ||||||||
| Field of View (D) | 97.9° | ||||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||||
| Adjustment angle | Pan: 0°~360° | Tilt: 0°~75° | Rotate: 0°~360° | ||||||
| Min. Illumination | Colour:0.002lux (F1.6, AGC ON) | ||||||||
| 0 lux with IR | |||||||||
| WDR | 120dB | ||||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||||
| S/N | >56dB | ||||||||
| IR Range | Up to 40m (131 ft) IR range | ||||||||
| Wavelength | 850nm | ||||||||
| IR On/Off Control | Auto/Manual | ||||||||
| Defog | Digital Defog | ||||||||
| Video | |||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||||
| Frame Rate | Main Stream: 5MP(2592*1944),Max 20fps; 4MP(2560*1440),Max 30fps; | ||||||||
| Sub Stream: 2MP (1920*1080), Max 30fps; | |||||||||
| Third Stream: D1 (720*576), Max 30fps | |||||||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||||||
| ROI | Supported | ||||||||
| Video stream | Triple streams | ||||||||
| OSD | Up to 8 OSDs | ||||||||
| Privacy Mask | Up to 8 areas(8 blacks/8 mosaics) | ||||||||
| Image | |||||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||||
| Digital noise reduction | 2D/3D DNR | ||||||||
| Smart IR | Support | ||||||||
| Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||||||
| HLC | Support | ||||||||
| BLC | Support | ||||||||
| Intelligent | |||||||||
| Smart intrusion prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection | ||||||||
| Statistical Analysis | People counting, support people flow counting and crowd density monitoring | ||||||||
| Events | |||||||||
| Basic Detection | Motion detection, Audio detection, Tampering alarm | ||||||||
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||||||
| Exception Detection And Statistics | Object Removed, Object Left Behind | ||||||||
| Audio | |||||||||
| Audio Compression | G.711U,G.711A | ||||||||
| Two-way Audio | N/A | ||||||||
| Suppression | Supported | ||||||||
| Sampling Rate | 8KHZ | ||||||||
| Storage | |||||||||
| Edge Storage | Micro SD, up to 256 GB | ||||||||
| Network Storage | ANR,NAS(NFS) | ||||||||
| Network | |||||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP | ||||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||||||
| Client | EZStation | ||||||||
| EZLive | |||||||||
| Ezview | |||||||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||||||||
| Interface | |||||||||
| Audio I/O | N/A | ||||||||
| Alarm I/O | N/A | ||||||||
| Built-in Mic | Supported | ||||||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||||||
| Certification | |||||||||
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) | ||||||||
| FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | |||||||||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) | ||||||||
| CB (IEC 62368-1:2014) | |||||||||
| UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | |||||||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | ||||||||
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) | ||||||||
| General | |||||||||
| Power | DC12V(±25%), PoE(IEEE 802.3af) | ||||||||
| Power consumption: Max 4W | |||||||||
| Dimensions (Ø x H) | Φ110.5 x 94.1mm(Φ4.35’’ x 3.7’’) | ||||||||
| Weight | 0.43kg(0.95lb) | ||||||||
| Working Environment | -40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||||
| Storage Environment | -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) | ||||||||
| Surge protection | 2KV | ||||||||
Uniview IPC3615SS-ADF40KM-I0 IP Dome Kamera Pdf Dosyası589.06 KB
Teknik Kısa
Ses : Var
Depolama : Var
Çözünürlük : 5MP
Irled : Var
