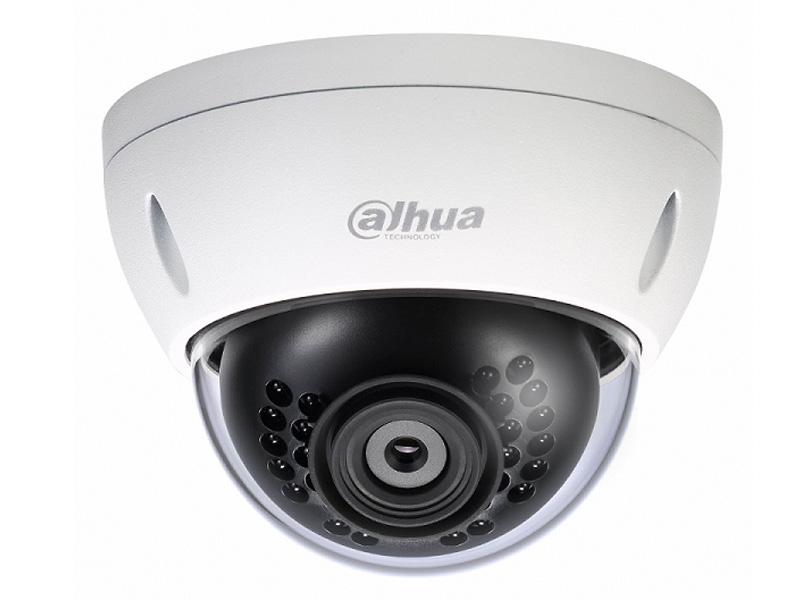

Dahua IPC HDBW4300EP AS IP HD Dome Kamera
Özellikler
- 3 Megapiksel Full HD Waterproof IR Dome IP Kamera
- 3,6mm Sabit lens, 1/3" 3 MP CMOS,
- 20fps @ 3MP(2048x1536),
- H.264/MJPEG Dual Codec,
- Çoklu Network Görüntüleme,
- D-WDR, Gece/Gündüz (ICR),
- AWB, AGC, BLC, 3D-DNR,
- IR LED G.Mesafesi: 30m, 1xRJ45(100M),
- Max. 64Gb Micro SD Memory,
- Akıllı IR, IP66, IK10, PoE,
- 1/1xAlarm, 1/1xSes
Teknik Özellikler
| Camera technology : IP |
| Camera type : Dome |
| Image Sensor : 1/3 3Megapixel progressive scan CMOS |
| Pixel : 2052(H)x1536(V) |
| Interlacing : Progressive |
| S/N Ratio : More than 50 dB |
| Electronic Shutter Speed : Auto/Manual, 1/3(4) - 1/10000s |
| Min. Illumination : 0. 1 Lux/F1.8 (color), 0.01 Lux/F1.8(B/W) |
| Lens Type : Fixed lens |
| Lens Mount : Board-in Type |
| Lens Control : Manual |
| Focal Length : 3.6 mm |
| Angle of View : H: 72.5°/90°/44° |
| Vario-Objektiv : Fixed lens |
| Day & Night System : Auto(ICR)/Color/B/W |
| Digital Noise Reduction : 3D |
| Automatic Gain Control (AGC) : Auto/Manual |
| Back Light Compensation (BLC) : ON / OFF |
| High Light Compensation (HLC) : ON / OFF |
| Wide Dynamic Range (WDR) : DWDR |
| IR LED Lighting Distance : 030 m |
| Brightness Control : Auto/Manual |
| Privacy Zone : Up to 4 areas |
| Video Compression : H.264/MJPEG |
| Resolution : 3M(2048×1536)/1080p(1920×1080) / 720p(1280×720) / D1(704×576/704×480) /CIF(352×288/352×240) |
| Frame Rate (main) : 3M(1 - 20 fps)/ 1080p/720p(1 - 25/30 fps) |
| Bit Rate : H.264: 32K ~ 8192Kbps |
| Audio Compression : G.711a/G.711u/PCM(-AS) |
| Audio Interface : 1/1 channel In/Out(-AS) |
| Ethernet : 1 RJ-45 port |
| Protocol : ONVIF,PSIA,CGI, IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour |
| Smart Phone : iPhone, iPad, Android, Windows Phone |
| Mikro SD : Micro SD Max 64GB(-AS/-S) |
| Memory Slot : Yes |
| Alarm Output : 1/1 channel In/Out(-AS) |
| Power Supply : DC12 V, PoE (802.3af) |
| Power Consumption : Max 4 W |
| Operating Temperature/Humidity : -30°C~+60°C, Less than 95% RH |
| IP Rating : IP66 |
| Vandal-Resistant Housing : IK10 |
| Max. User Access : 20 users |
| Dimensions : 110mm - 81mm |
| Weight : 0,39 kg |
Dahua IPC HDBW4300EP AS IP HD Dome Kamera Pdf Dosyası251.73 KB
Teknik Kısa
Çözünürlük : 3MP
Depolama : Var
Irled : Var
Ses : Var
