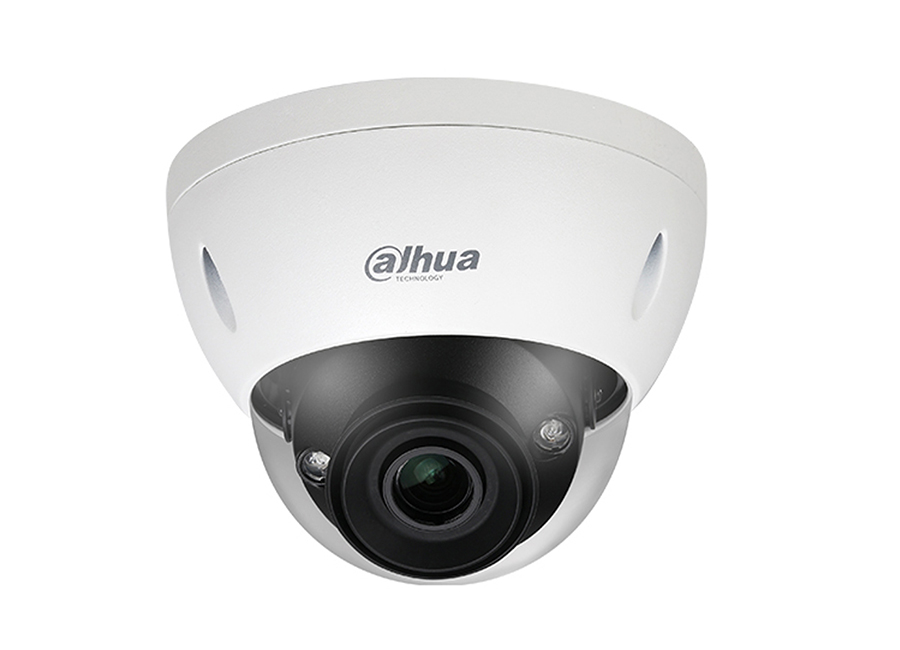

Dahua IPC-HDBW5241E-ZE-27135 IP Dome Kamera

Özellikler

1 / 2.8 “ CMOS Sensör, 2.7mm-13.5mm Motorize Lens
0.002 Lüx Renkli, ePoE destekli (800mt)
25fps@1080p, BLC/HLC/WDR (120dB), 3DNR, AWB, AGC, ICR
Yapay Zeka: Yüz Yakalama, 6 Farklı Yüz Özelliği(Yaş, Cinsiyet, Yüz İfadesi, Gözlük, Ağızda Maske, Sakal&Bıyık)
Çevre Koruması: Tripwire (Sanal Sınır ihlali)
Intrusion (Alan İhlali),İnsan ve Araç olarak sınıflandırma
Kişi Sayma: Çizgisel Kişi Sayma, Bölgesel Kişi Sayma
Kuyruk Sayma, 4 farklı Alan Algılama, Kayıp/Terkedilmiş
Nesne Algılama, SD Kart Desteği(256GB), IP67, IK10, PoE
Alarm Giriş/Çıkış: 1/1, Ses Giriş/Çıkış: 1/1, Metal Kasa

Teknik Özellikler

Camera
Image Sensor	1/2.8” 2Megapixel progressive scan STARVIS™ CMOS
Effective Pixels	1920 (H) × 1080 (V)
RAM/ROM	512 MB/128 MB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual, 1/3 s–1/100000 s
Minimum Illumination	0.002 Lux@F1.5
IR Distance	Distance up to 40 m (131 ft)
IR On/Off Control	Auto/Manual
IR LEDs	3
Lens
Lens Type	Motorized
Mount Type	Board-in
Focal Length	2.7 mm–13.5 mm
Max. Aperture	F1.5
Angle of View	H: 109°–30°, V: 57°–17°
Optical Zoom	5x
Aperture Type	Auto
Close Focus Distance	0.8 m (2.62 ft)
DORI Distance	Lens	Detect	Observe	Recognize	Identify
	W	44m(144ft)	18m(59ft)	9m(30ft)	4m(13ft)
	T	146m(479ft)	58m(190ft)	29m(95ft)	15m(49ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range	Pan: 0˚–355˚; Tilt: 0˚–65˚; Rotation: 0˚–355˚
Artificial Intelligence
Face Capture	Support face image capture
Face Attributes	Support 6 kinds of face attributes extraction: Age, Gender, Expression(Jolly, Surprise, Normal, Rage, Sad, Disgusted, Confused, Frightened), Glasses, Mouth Mask, Moustache & Beard
Perimeter Protection	Tripwire, Intrusion (Human & Vehicle classification)
People Counting	Support Line crossing/Region/Queueing people counting; Support 4 accesses independent detection, 4 areas independent detection
General Intelligence
Event Trigger	Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access, Storage anomaly
General Intelligence	Object Abandoned/Missing
Video
Compression	H.265+, H.265, H.264+, H.264, H.264B, H.264H,
	MJPEG (sub stream)
Streaming Capability	3 Streams
Resolution	1080P (1920 × 1080)/1.3M (1280 × 960)/720P (1280 × 720)/D1 (704 × 576/704 × 480)/VGA (640 × 480)/CIF (352 × 288/352 × 240)
Frame Rate	Main Stream: 1080P (1 fps–25/30 fps)
	Sub Stream: D1 (1 fps–25/30 fps)
	Third Stream: 1080P (1 fps–6 fps)
Bit Rate Control	CBR/VBR
Bit Rate	H.264: 32 Kbps–8192 Kbps
	H.265: 19 Kbps–7424 Kbps
Day/Night	Auto (ICR)/Color/B/W
BLC Mode	BLC/HLC/WDR (120 dB)
White Balance	Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control	Auto/Manual
Noise Reduction	3D DNR
Motion Detetion	Off/On (4 Zone, Rectangle)
Region of Interest	Off/On (4 Zone)
Electronic Image Stabilization (EIS)	Support
Smart IR	Support
Defog	Support
Digital Zoom	N/A
Flip	°/90°/180°/270°
Mirror	Off/On
Privacy Masking	Off/On (4 Area, Rectangle)
Audio
Compression	G.711a, G.711Mu, G.726, AAC, G.723
Network
Ethernet	RJ-45 (10/100 Base-T)
Protocol	HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP,
	FTP, DHCP, DNS, DDNS, PPPoE, IPv4/v6, SNMP, QoS,
	UPnP, NTP, ICMP, HTTPS, IGMP, 802.1x
Interoperability	ONVIF (Profile S/Profile G), CGI, Milstone, Genetec, P2P
Streaming Method	Unicast/Multicast
Max. User Access	20 Users
Edge Storage	NAS
	FTP
	Micro SD card 256 GB
Web Viewer	IE (versions newer than IE8), Chrome,
	Firefox, Safari (versions newer than Safari 12)
Management Software	Smart PSS, DSS, P2P
Smart Phone	iOS, Android
Certifications
Certifications	CE-LVD: EN60950-1
	CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
	FCC: 47 CFR FCC Part 15, Subpart B
	UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Interface
Video Interface	1 Port (For adjustment only)
Audio Interface	1/1 channel In/Out
RS485	N/A
Alarm	1 channel In: 5mA 5V DC
	1 channel Out: 300mA 12V DC
Electrical
Power Supply	DC 12V (±30%), AC 24V (±30%), PoE (802.3af) (Class 0)
Power Consumption	<11.8W
Environmental
Operating Conditions	-30° C to +60° C (-22° F to +140° F)/10%RH–95%RH
Strorage Conditions	-30° C to +60° C (-22° F to +140° F)
Ingress Protection	IP67
Vandal Resistance	IK10
Construction
Casing	Metal
Dimensions	Φ159.0 mm × 117.9 mm (6.26” × 4.64”)
Net Weight	0.95 kg (2.09 lb)
Gross Weight	1.20 kg (2.65 lb)
