Açıklama

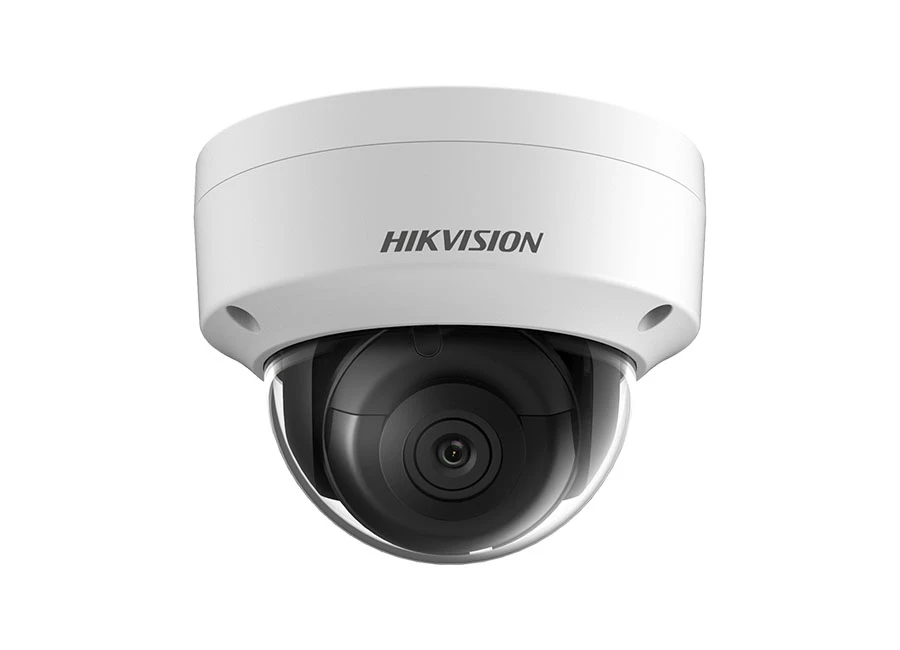

Hikvision DS 2CD2143G0 IS IP Dome Kamera

Özellikler

1/3" Progressive Scan CMOS
2688 ×1520@30fps
2.8/4/6/8mm fixed lens
Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
H.265+, H.265, H.264+, H.264
Three streams
120dB WDR
2 Behavior analyses, and face detection
BLC/3D DNR/ROI
IP67
Built-in micro SD/SDHC/SDXC card slot, up to 128 GB
3-Axis adjustment

Teknik Özellikler

Camera
Image Sensor	1/3" Progressive Scan CMOS
Signal System	PAL/NTSC
Min. Illumination	Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter time	1/3 s to 1/100,000 s
Slow shutter	Support
Lens	2.8 mm @ F1.6: horizontal FOV: 103°, vertical FOV: 58°, diagonal FOV: 123°
	4 mm @F1.6: horizontal FOV: 83°, vertical FOV: 45°, diagonal FOV: 99°
	6 mm @F1.6: horizontal FOV: 51°, vertical FOV: 29°, diagonal FOV: 58°
	8 mm @F1.6: horizontal FOV: 39°, vertical FOV: 22°, diagonal FOV: 45°
Lens Mount	M12
Adjustment Range	Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Day& Night	IR cut filter with auto switch
Wide Dynamic Range	120 dB
Digital noise reduction	3D DNR
Compression Standard
Video Compression	H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate	256Kbps~16Mbps
Audio Compression	-S: G.711/G.722.1/G.726/MP2L2/PCM
Audio bit rate	64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Triple Streams	Yes
Max. Image Resolution	2688 × 1520
Frame Rate	50Hz:25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080)
Frame Rate	60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080)
Sub Stream	50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
Sub Stream	60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream	50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)
Third Stream	60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Image Enhancement	BLC/3D DNR
Image Settings	Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
Target Cropping	No
ROI	1 fixed region for main stream and sub-stream
Day/Night Switch	Day/Night/Auto/Schedule/Triggered by alarm in (-S)
Network
Network Storage	microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger	Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP?, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function	One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
General Function	mask, Watermark, IP address filtering
System Compatibility	ONVIF (Profile S, Profile G),ISAPI
Interface
Audio	With –S model: 1 input (line in), 1 output
Communication Interface	1 RJ45 10M / 100M Ethernet interface
Alarm	with -S model：1 input, 1 output (up to 12 VDC, 30 mA), terminal block
On-board storage	Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button	Yes
Audio
Environment Noise Filtering	Support
Audio Sampling Rate	16kHz / 32kHz / 44.1kHz / 48kHz
Smart Feature-set
Behavior Analysis	Line crossing detection, intrusion detection
Line Crossing Detection	Cross a pre-defined virtual line
Intrusion Detection	Enter and loiter in a pre-defined virtual region
Recognition	Face Detection
General
Operating Conditions	-30 °C ~ 60 °C (-22 °F ~ 140 °F)
Operating Conditions	Humidity 95% or less (non-condensing)
Power Supply	12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption	12 VDC, 0.5A, max. 6W
Power Consumption	PoE (802.3af, 37V to 57V), 0.2A to 0.1A, max. 7.5W
Weather Proof	IP67
IR Range	Up to 30m
Dimensions	Camera: Φ 111 × 82.4 mm (Φ 4.4″ × 3.2″)
Dimensions	Package: 134 × 134 × 108 mm (5.27″ × 5.27″ × 4.25″)
Weight	Camera: Approx. 610 g (1.3 lb.)
Weight	With Package: Approx. 820 g (1.8 lb.)
