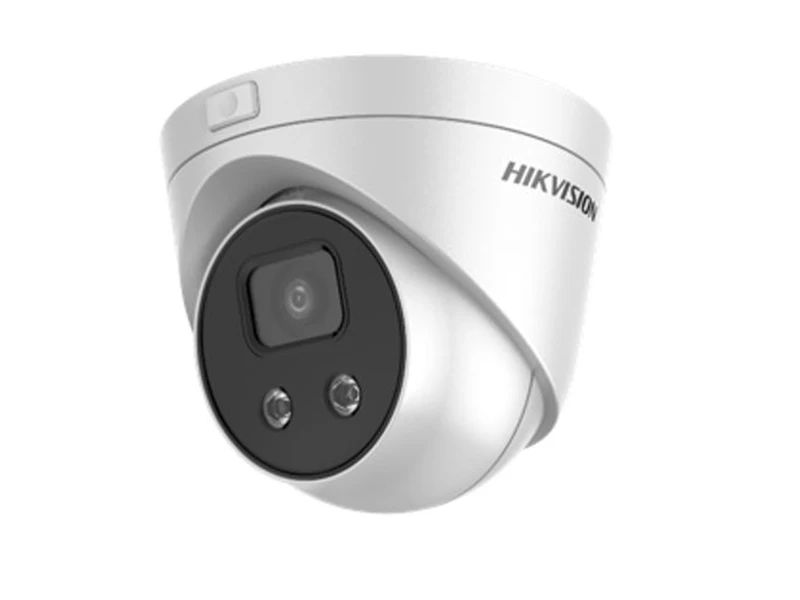

Hikvision DS 2CD2326G2 I IR IP Turret Kamera

Özellikler

Up to 8 megapixel high resolution
Max. 1920 × 1080 @ 25fps
8 mm/4 mm/6 mm fixed lens
H.265, H.264
120dB WDR
False alarm filter by target classification
12 VDC & PoE (802.3af, class 3)
IR range: Up to 50 m
Support on-board storage, up to 128 GB
IP67
BLC/3D DNR/ROI
Color: 0.005 Lux @ (F1.2, AGC ON), 0.009 Lux @ (F1.6, AGC ON)

Teknik Özellikler

Camera
Image Sensor	1/2.8” CMOS progressive scan CMOS
Signal System	PAL/NTSC
Min. Illumination	Color: 0.005 Lux @ (F1.2, AGC ON), 0.009 Lux @ (F1.6, AGC ON)
Shutter time	1/3 s to 1/100,000 s
Slow shutter	Support
Lens	2.8 mm, horizontal FOV: 108°, vertical FOV: 58°, diagonal FOV: 128°
	4 mm, horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 103°
	6 mm, horizontal FOV: 52°, vertical FOV: 29°, diagonal FOV: 60°
Lens Mount	M12
Adjustment Range	Pan: 0° to 360°, tilt: 0° to 70°, rotate: 0° to 360°
Day& Night	IR cut filter with auto switch
Wide Dynamic Range	120 dB
Digital noise reduction	3D DNR
Focus	Fixed
Compression Standard
Video Compression	H.265/H.264/MJPEG
Video bit rate	32Kbps~16Mbps
Max. Image Resolution	1920 x 1080
Frame Rate	50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
Frame Rate	60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream	50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)
Sub Stream	60Hz: 30fps (704 × 576, 640 × 480, 352 × 288)
Image Enhancement	BLC/3D DNR
Image Settings	Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
ROI	Support 1 fixed region for main stream and sub stream separately
Day/Night Switch	Day/Night/Auto/Schedule
Network
Network Storage	microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function	One-key reset, anti-filter
System Compatibility	ONVIF (Profile S, Profile G),ISAPI
Interface
Communication Interface	1 RJ45 10M / 100M Ethernet interface
On-board storage	Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button	Yes
Smart Feature-set
Behavior Analysis	Line crossing detection, intrusion detection, region entrance detection, region exit detection, false alarm filter by target classification
Line Crossing Detection	Cross a pre-defined virtual line
Intrusion Detection	Enter and loiter in a pre-defined virtual region
Region Entrance	Enter a pre-defined virtual region from the outside place
Region Exiting	Exit from a pre-defined virtual region
General
Operating Conditions	-30 °C ~ 60 °C (-22 °F ~ 140 °F)
Operating Conditions	Humidity 95% or less (non-condensing)
Power Supply	12 VDC ± 25%, 5.5 mm coaxial power plug ,PoE (802.3af, class 3)
Power Consumption	12 VDC, 0.6 A, max: 7 W
Power Consumption	PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max: 8.5 W
Weather Proof	IP67
IR Range	Up to 50m
Dimensions	Camera: Φ130 × 105 mm (Φ5.1″ × 4.1″)
Weight	Camera: 500 g (1.1 lb.)
Weight	With package: 780 g (1.7 lb.)
