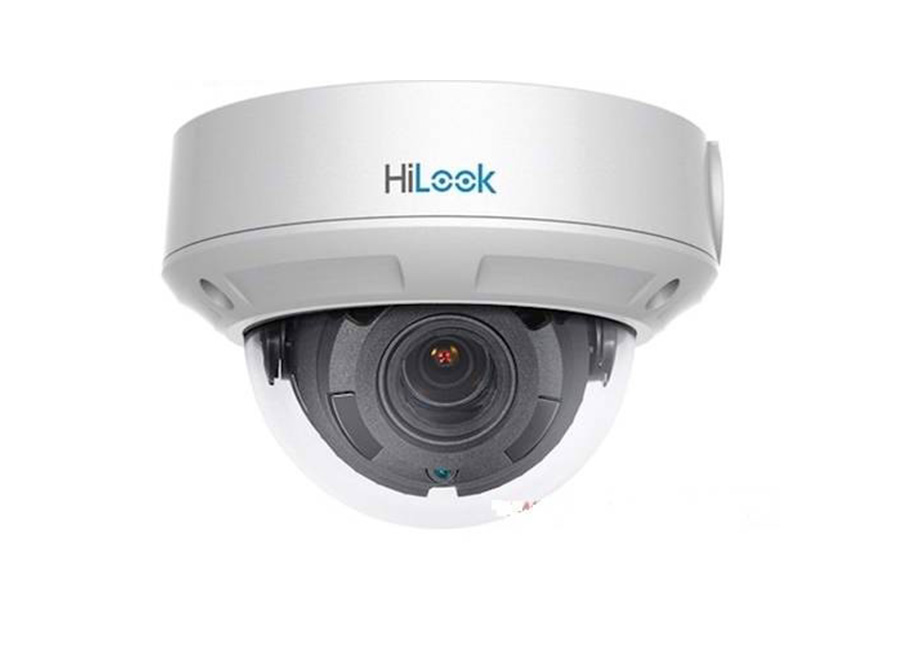

HiLook IPC D650H V IR IP Dome Kamera

Özellikler

1/2.7" progressive scan CMOS
2560 × 1920 @15fps
2.8 mm to 12 mm vari-focal lens
H.265+, H.265, H.264+, H.264
Dual stream
3D DNR (Digital Noise Reduction)
Up to 30 m IR range
PoE (Power over Ethernet)
IP67

Teknik Özellikler

Camera
Image Sensor	1/2.7” Progressive Scan CMOS
Min. Illumination	Color: 0.01 Lux @(F1.2, AGC ON), 0.018Lux @ (F1.6, AGC ON)
Shutter time	1/3 s to 1/100, 000 s
Slow shutter	support
Lens	Horizontal FOV 98° to 28°, vertical FOV 71° to 21°, diagonal FOV 130° to 35°
Lens Mount	φ14
Adjustment Range	Pan: 0° to 355°, tilt: 0°to 70°, rotation: 0° to 360°
Day& Night	IR Cut Filter
Wide Dynamic Range	120 dB
Digital noise reduction	3D DNR
Compression Standard
Video Compression	H.265+/H.265/H.264+/H.264/MJPEG
H.264 code profile	Baseline Profile/Main Profile/High Profile
Video bit rate	32Kbps~8Mbps
Dual Stream	Yes
Max. Image Resolution	2560×1920
Frame Rate	50Hz: 12.5fps (2560 × 1920), 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1280, 1280 × 720)
Frame Rate	60Hz: 15fps (2560 × 1920), 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1280, 1280 × 720)
Sub Stream	50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
Sub Stream	60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Image Enhancement	BLC, 3D DNR
Image Settings	Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
BLC	Support
Day/Night Switch	Auto, scheduled, day, night
Network
Network Storage	microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger	Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 UDP, Bonjour
General Function	One-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
System Compatibility	ONVIF (Profile S, Profile G),ISAPI
Interface
On-board storage	Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button	Yes
General
Operating Conditions	-30 °C ~ 60 °C (-22 °F ~ 140 °F)
Operating Conditions	Humidity 95% or less (non-condensing)
Power Supply	12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption	With –Z model:
	12 VDC, 0.8 A, max. 10 W
	PoE (802.3af, 36 to 57 V), 0.4 A to 0.2 A, max. 12 W
	Without –Z model:
	12 VDC, 0.5 A, max. 6 W
	PoE (802.3af, 36 to 57 V), 0.3 A to 0.1 A, max. 8 W
Impact Protection	IK10
Weather Proof	IP67
IR Range	Up to 30m
Dimensions	Camera: Φ141 mm × 99 mm (5.6" × 3.9")
Dimensions	With package: 140 mm × 140 mm × 154 mm (5.5" × 5.5" × 6.1")
Weight	Camera: approx. 800 g (1.8 lb.)
Weight	With package: approx. 1050 g (2.3 lb.)
