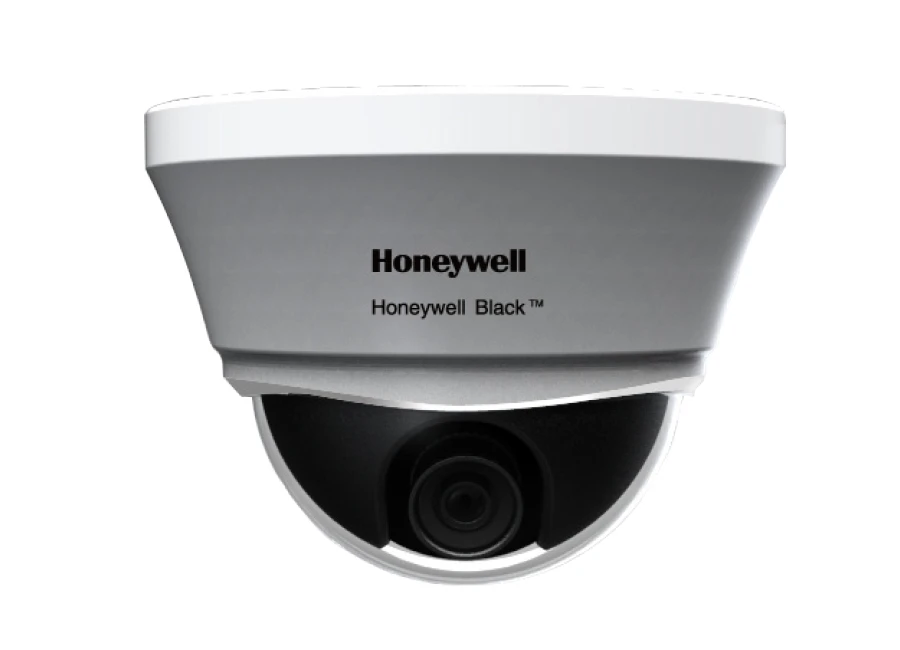

Honeywell CAIPDC210TV P IP HD Dome Kamera
Özellikler
- 2 Megapixel (1600H x 1200V)
- High-profile H.264 Compression format, support multiple video stream simultaneously
- True Day/Night – IR-CUT removable
- Motion detection, Privacy Masking, Reset
- Alarm I/O, RS485 interface
- Support local storage for SD card
- Local analog output for easy setup
- Built-in 2.8 - 12mm vari-focal lens with auto iris
- 12 VDC/24 VAC or PoE (CAIPDC210TV-P only)
- ONVIF compliant
Teknik Özellikler
| Image Sensor | 2 Megapixel, 1/3” CMOS Image Sensor |
| Effective Pixels | 1600 (H) x 1200 (V) |
| Minimum Illumination | Color: 0.5Lux @ F1.2, AGC ON |
| B/W: 0.08Lux @ F1.2, AGC ON | |
| Day/Night | TDN, IR cut removable |
| Lens | Built-in 2.8 - 12mm vari-focal lens with auto iris |
| Shutter Speed | 1/25 - 1/10,000 Sec |
| Digital Noise Reduction | ON/OFF |
| Sync System | Internal |
| Auto Gain Control | ON/OFF |
| White Balance | AWB |
| BLC | ON/OFF |
| Image Set | Saturation, Brightness, Sharpness and Contrast setup is quick and easy and can be customized through IE Browser |
| OSD Overlay | Name / date / position adjustable |
| Video Compression | H.264, MJPEG, Multiple video streams |
| Image Resolution | PAL: 12.5fps (1600×1200), 25fps (1280×720) |
| NTSC: 15fps (1600×1200), 30fps (1280×720) | |
| Bit Rate | 32K - 8Mbps |
| Network Interface Protocol | ONVIF |
| Ethernet | 10/100Mbps self-adaptive Ethernet interface |
| Supported Protocol | TCP/IP, UDP, RTP/RTCP, RTSP, HTTP, SMTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, UPNP (SNMP, HTTPS, SIP optional) |
| Audio Compression | G.711 |
| Audio Compression Rate | 64Kbps |
| Audio Input | Mic/Line in, bi-directional audio, frequency responsibility: 50 - 16000Hz, S/N>60dB |
| Audio Output | Line out PWL Resistance: 600 Ohm |
| Local Storage | SD card |
| SD card Storage | Support max 32GB |
| Alarm Trigger | Intelligent video motion detection, video shelter and external input |
| Motion Detection | 12 zones |
| Alarm Event | Event server: FTP server, SMTP server, web browser |
| Privacy Masking | 3 zones |
| Power Supply | 12VDC & 24VAC |
| Power over Ethernet(PoE) | CAIPDC210TV: n/a |
| CAIPDC210TV-P: IEEE 802.3af | |
| Power Consumption | 4W (excluding external loading) |
| Dimensions | 145mm(D) x 110.5mm(H) |
| Weight | 477g |
| Connector | RS485 |
| Operating Temperature | -10°C to +55°C |
| Operating Humidity | 0% to 90% relative humidity |
| Storage Temperature | -20°C to +60°C |
| Browser | IE 6.0 or above |
| Search and Installation | IP finder |
| CMS | Honeywell Vista CAIPC-CMS100 |
| Certification | CE, C-tick |
Honeywell CAIPDC210TV P IP HD Dome Kamera Pdf Dosyası482.11 KB
Teknik Kısa
Çözünürlük : 2MP (1080P)
Ses : Var
Depolama : Var
