Açıklama

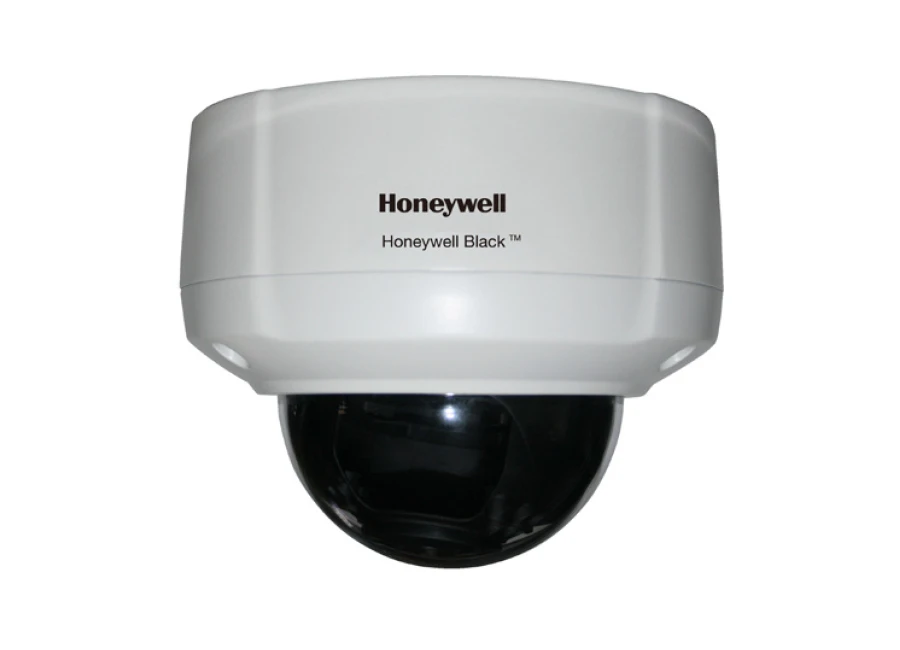

Honeywell CAIPDC330TWV PV IP HD Dome Kamera

Özellikler

3 Megapixel (2048H x 1536V)
High-profile H.264 Compression format, support multiple video stream simultaneously
Extended Wide Dynamic Range (WDR)
True Day/Night – IR-CUT removable
Motion detection, Privacy Masking, Reset
Alarm I/O, RS485 interface
Support local storage for SD card
Local analog output for easy setup
Built-in 2.8 – 12mm vari-focal lens with auto iris
12 VDC/24 VAC or PoE (CAIPDC330TWV-PV only)
Vandal-proof housing
ONVIF compliant

Teknik Özellikler

Image Sensor	3 Megapixel, 1/3" Progressive Scan CMOS Sensor
Effective Pixels	2048 (H) x 1536 (V)
Minimum Illumination	Color: 0.3 Lux @ F1.2, AGC ON
Minimum Illumination	B/W: 0.05 Lux @ F1.2, AGC ON
Day/Night	TDN, IR cut removable
Lens	Built-in 2.8 - 12mm manual vari-focal lens with auto iris
Shutter Speed	1/5 - 1/10,000 Sec
Wide Dynamic Range	Extended Wide Dynamic Range, up to 100 dB
Digital Noise Reduction	ON/OFF
Sync System	Internal
Auto Gain Control	ON/OFF
White Balance	AWB
BLC	ON/OFF
Image Set	Saturation, Brightness, Sharpness and Contrast setup is quick and easy and can be customized through IE Browser
OSD Overlay	Name / date / position adjustable
Video Compression	H.264, MJPEG, Multiple video streams
Image Resolution	PAL: 12.5fps (2048 x 1536), 25fps (1920 x 1080), 25fps (1280 x 720)
Image Resolution	NTSC: 15fps (2048 x 1536), 30fps (1920 x 1080), 30fps (1280 x 720)
Bit Rate	32K - 16Mbps
Network Interface Protocol	ONVIF
Ethernet	10/100Mbps self-adaptive Ethernet interface
Supported Protocol	TCP/IP, UDP, RTP/RTCP, RTSP, HTTP, SMTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, UPNP (SNMP, HTTPS, SIP optional)
Audio Compression	G.711
Audio Compression Rate	64Kbps
Audio Input	Mic/Line in, bi-directional audio, frequency responsibility: 50 - 16000Hz, S/N>60dB
Audio Output	Line out PWL Resistance: 600Ohm
Local Storage	SD card
SD card Storage	Support max 32GB
Alarm Trigger	Intelligent video motion detection, video shelter and external input
Motion Detection	12 zones
Alarm Event	Event server: FTP server, SMTP server, web browser
Privacy Masking	3 zones
Power Supply	12VDC & 24VAC
Power over Ethernet(PoE)	CAIPBC330TWV-V: n/a
Power over Ethernet(PoE)	CAIPBC330TWV-PV: IEEE 802.3af
Power Consumption	4W (excluding external loading)
Dimensions	152.70mm(D) x 128.30mm(H)
Weight	1179g
Connector	RS485
Protection	IEC 60068-2-75 test Eh, 50 J
Protection	EN 50102, exceeding IK10
Operating Temperature	-10°C to +55°C
Operating Humidity	0% to 90% relative humidity
Storage Temperature	-20°C to +60°C
Browser	IE 6.0 or above
Search and Installation	IP finder
CMS	Honeywell Vista CAIPC-CMS100
Certification	CE, C-tick
