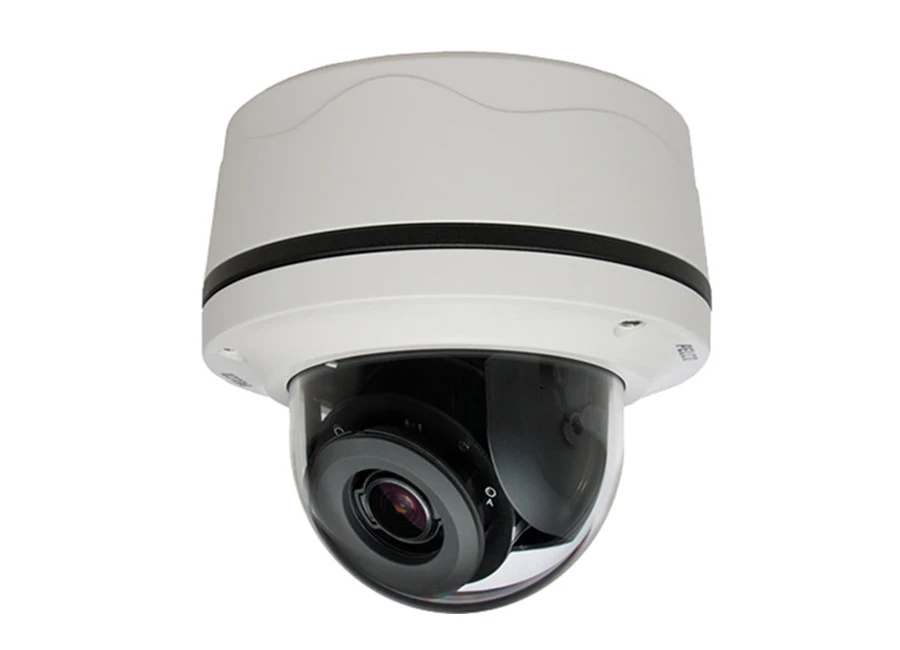

Pelco IMP521A 1IS IP Dome Kamera
Özellikler
- Autofocus motorized remote zoom lens
- Motion detection and camera sabotage detection
- Smart compression technology
- Advanced color science and mechanical IR cut filter for increased sensitivity in low-light installations
- Supports up to two simultaneous video streams and a third service stream
- Connects to Pelco video management systems such as VideoXpert, Endura version 2.0 (or later), and Digital Sentry version 7.3 (or later)
- Integrates with third-party systems through the open Pelco API or the ONVIF Profile S, G, and Q standards
- Standard web browser interface for easy remote setup and administration
- IK10 vandal resistant
Teknik Özellikler
| Sensor | 5 MP 1/1.8" CMOS |
| Focal Length | 3 to 10.5mm |
| Maximum Aperture | f/1.4 |
| Zoom | Optical: 3.5x |
| Lens Field of View | Diagonal: 110 to 46° |
| Horizontal: 88 to 37° | |
| Vertical: 64 to 27° | |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.03 Lux |
| B&W: 0.002 Lux | |
| Shutter Speed | 1/30,000 to 1/5 Seconds |
| Camera Angle Adjustment | Horizontal: 0 to 370° |
| Vertical: 0 to 90° | |
| Video | |
| Streaming Resolution | 2592 x 1944 at 15 fps |
| Supported Video Compression | H.264, MJPEG |
| Multi-View Streaming | Yes, 2 Streams |
| Audio | |
| Streaming | Two-Way |
| Audio Formats | G.711 |
| Built-In Mic | Yes |
| External Audio Input | 3.5 mm |
| External Audio Output | 3.5 mm |
| Networking | |
| Security | HTTPS, Password Protection |
| Supported Protocols | DNS, FTP, GB28181, HTTP, ICMP, IGMP, IPv4/v6, LDAP, NTP, ONVIF Profile G, ONVIF Profile Q, ONVIF Profile S, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSH, SSL/TLS, TCP, UDP, UPnP |
| System Integration | |
| Application Programming Interface (API) | Pelco API, ONVIF |
| Analytics | Simple Motion Detection, Camera Sabotage Detection |
| Event Trigger | Yes |
| Event Action | Recording, Alarm |
| Data Streaming | Yes |
| Environmental | |
| Operating Temperature | 14 to 131°F / -10 to 55°C |
| Storage Temperature | -40 to 140°F / -40 to 60°C |
| Operating Humidity | 5 to 90% |
| IK Rating | IK10 |
| General | |
| Recording Media | microSD (up to 64 GB) |
| Pan/Tilt | None |
| Alarm I/O | 1/1 |
| I/O Connections | 1 x RJ45 |
| 1 x Power | |
| IR Illuminators | None |
| Video Management Software | VideoXpert, Endura 2.0 (or Later), Digital Sentry 7.3 (or Later) |
| Supported Languages | Arabic |
| English | |
| French | |
| German | |
| Italian | |
| Korean | |
| Portuguese | |
| Russian | |
| Simplified Chinese | |
| Spanish | |
| Turkish | |
| Certifications | EN 50130-4, EN 55022 Class A, FCC (Part 15 Class A), ICES-003 Class A, IEC60950-1, IEC60950-22, KC, NEMA TS2, RCM, UL, cUL, as per Manufacturer |
| Internal Storage | None |
| External Storage Options | Local PC |
| Power Source | PoE 802.3af (15 W) |
| Power Consumption | 6 W |
| Material of Construction | Plastic |
| Dimensions | ø: 5.4 x H: 5.5" / ø: 13.7 x H: 14.0 cm |
| Weight | 1.76 lb / 0.8 kg |
Pelco IMP521A 1IS IP Dome Kamera Pdf Dosyası656.04 KB
Teknik Kısa
Depolama : Var
Çözünürlük : 5MP
Ses : Var
