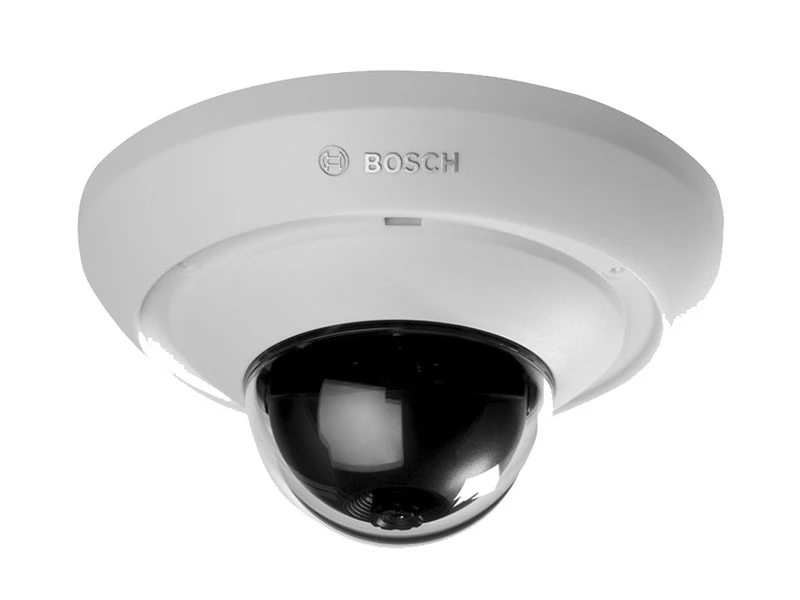

Bosch NUC 50051 F4 Micro IP HD Dome Kamera
Teknik Özellikler
| Video | |
| Sensor Type | 1/3" CMOS |
| Pixels | 2592 x 1944 |
| Sensitivity | At 3200 K, Reflectivity 89%, 30 IRE: 2.0 lux |
| Dynamic Range | 65 dB |
| True Day/NightControl | Auto, Color, Monochrome |
| Shutter Speed | Automatic Electronic Shutter (AES) |
| Fixed (1/30 [1/25] to 1/15,000) | |
| Video Resolution | 5 MP, 480p |
| Aspect Ratio | 04:03 |
| Video Compression | H.264 MP (Main Profile); M-JPEG |
| Frame Rate | 12 ips (M-JPEG frame rate can vary depending on system loading) |
| Video Setting | Video watermarking, Alarm mode stamping, Image mirror, Image flip, |
| Contrast, Saturation, Brightness, White balance, | |
| Sharpness level, Contrast enhancement, Backlight Compensation, | |
| Privacy Mask, Motion detection, Tamper alarm, Upright mode, Pixel counter | |
| Lens | |
| Lens Type | 3.74 mm, fixed |
| Lens Mount | Board mounted |
| Viewing Angle (H/V) | 62.6 x 48.8° |
| Input/Output | |
| Analog Video Output | 2.5 mm jack for installation only (NTSC) |
| Storage | |
| Local Storage | 10 sec pre-alarm recording |
| Memory Card Slot | Supports up to 32 GB microSDHC / 2 TB microSDXC card (SD card of Class 6 or higher is recommended) |
| Recording | Continuous recording, ring recording |
| Alarm/events/schedule recording | |
| Software | |
| Unit Configuration | Via Web browser or PC surveillance Software |
| Firmware Updates | Remotely programmable |
| Network | |
| Protocols | IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/ RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, Telnet, ARP, DHCP, SNTP, |
| SNMP (V1, MIB‑II), 802.1x, DNS, DNSv6, DDNS, SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS), LLDP, SOAP, Dropbox, CHAP, Digest Authentication | |
| Encryption | TLS 1.0, SSL, DES, 3DES, AES |
| Ethernet | 10/100 Base-T, auto-sensing, half/full duplex |
| Ethernet Connector | RJ45 |
| PoE | IEEE 802.3af (802.3at Type 1) |
| Power Level: Class 1 | |
| Connectivity | ONVIF Profile S, Auto-MDIX |
| Environmental | |
| Operating Temperature | -22 to +122°F (-30 to +50°C) |
| Storage Temperature | -22 to +158°F (-30 to +70°C) |
| Humidity | 0 to 95% relative humidity (non condensing) |
| Electrical | |
| Input Voltage | +12 VDC, +24 VDC or Power over Ethernet (48 VDC nominal) |
| Power Consumption | 3.84 W maximum |
Teknik Kısa
Çözünürlük : 5MP
Depolama : Var
