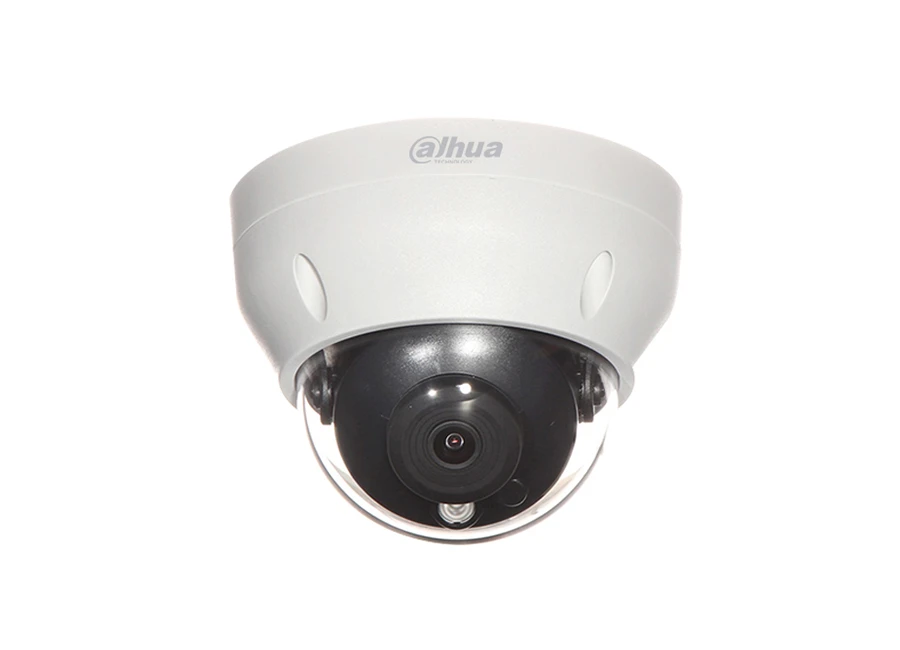

Dahua IPC D2B20 0280B IP Mini Dome Kamera

Özellikler

1/2.7” 2Megapixel progressive CMOS
H.265+ & H.265 dual-stream encoding
25/30fps@1080P(1920x1080)
DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
2.8 mm fixed lens (3.6 mm optional)
Max IR LEDs Length 30m
IP67, PoE

Teknik Özellikler

Camera
Image Sensor	1/2.7” 2Megapixel progressive scan CMOS
Effective Pixels	1920(H) x 1080(V)
RAM/ROM	64MB/16MB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual, 1/3~1/100000s
Minimum Illumination	0.009Lux/F2.0( Color,1/3s,30IRE)
	0.05Lux/F2.0( Color,1/30s,30IRE)
	0Lux/F2.0(IR on)
S/N Ratio	More than 50dB
IR Distance	Distance up to 30m(98ft)
IR On/Off Control	Auto/Manual
IR LEDs	1
Lens
Lens Type	Fixed
Mount Type	Board-in
Focal Length	02.Ağu
Max. Aperture	F2.0/F2.0
Angle of View	H:115°/87.5°, V:60°/47°
Focus Control	Fixed
Close Focus Distance	0.6m(1.97ft)
DORI Distance
Lens	Observe	Recognize	Identify
2.8 mm	17.4m(57ft)	8.7m(28.5ft)	4.3m(14ft)
3.6 mm	21.3m(70ft)	10.7m(35ft)	5.3m(17.4ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range	Pan:0° ~355° ;Tilt:0° ~75° ;Rotation:0° ~355°
Video
Compression	H.265/H.264H/MJPEG(Sub Stream)
Smart Codec	Support H.265+/H.264+
Streaming Capability	2 Streams
Resolution	1080P(1920×1080)/1.3M(1280x960)/
	720P(1280×720)/D1(704×576/704×480)/
	VGA(640×480)/CIF(352×288/352×240)
Frame Rate	Main Stream: 1080P(1~25/30fps)
	Sub Stream: D1(1~25/30fps)
Bit Rate Control	CBR/VBR
Day/Night	Auto(ICR) / Color / B/W
BLC Mode	BLC / HLC / DWDR
White Balance	Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control	Auto/Manual
Noise Reduction	3D DNR
Motion Detetion	Off / On (4 Zone, Rectangle)
Region of Interest	Off / On (4 Zone)
Electronic Image Stabilization	N/A
(EIS)
Smart IR	Support
Digital Zoom	16x
Flip	°/90°/180°/270°
Mirror	Off / On
Privacy Masking	Off / On (4 Area, Rectangle)
Audio
Compression	N/A
Network
Ethernet	RJ-45 (10/100Base-T)
Protocol	HTTP;TCP;ARP;RTSP;RTP;RTCP;UDP;DHCP;DNS;IPV4;NTP;Multicas; ICMP; IGMP
Interoperability	ONVIF Profile S
Streaming Method	Unicast / Multicast
Max. User Access	10 Users/20 Users
Edge Storage	N/A
Web Viewer	IE, Chrome, Firefox, Safari
Management Software	Smart PSS, DSS, DMSS
Smart Phone	IOS, Android
Certifications
Certifications	CE: (EN 60950:2000)
	FCC: FCC Part 15 Subpart B
Interface
Video Interface	N/A
Audio Interface	N/A
RS485	N/A
Alarm	N/A
Electrical
Power Supply	DC12V, PoE (802.3af)(Class 0)
Power Consumption	<5.1W
Environmental
Operating Conditions	-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions	-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection	IP67
Vandal Resistance	N/A
Construction
Casing	Plastic
Dimensions	Φ122mm×98.1mm(4.8''x3.86'')
Net Weight	0.35Kg(0.77lb)
Gross Weight	0.49Kg(1.08lb)
