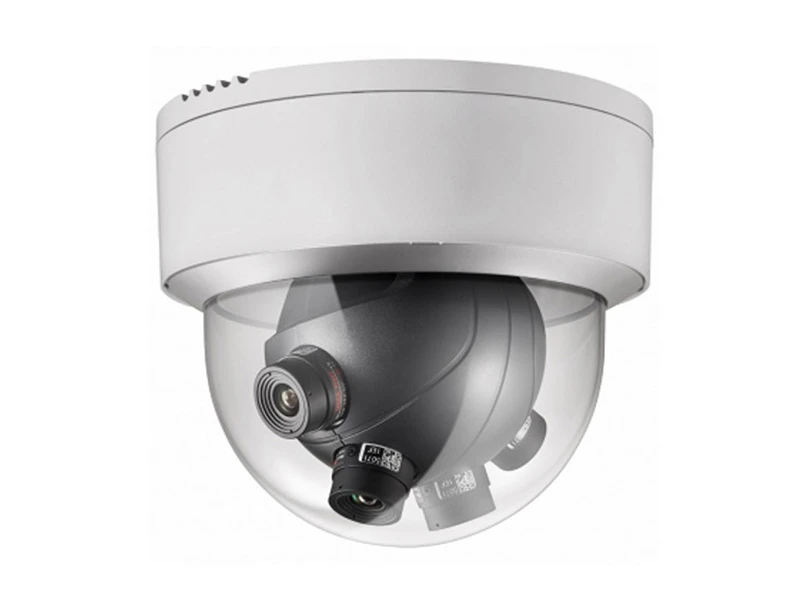

Hikvision DS 2CD6986F H Panoramik Ip Kamera
Özellikler
- 1/1.8" Progressive Scan CMOS
- Panoramic camera
- Up to 7.3MP resolution (4096×1800)
- 4×5mm fixed lens
- Ultra-low light
- Digital WDR
- Heater & fan optional
- IP66
Teknik Özellikler
| Camera | |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Signal System | PAL/NTSC |
| Min. Illumination | 0.002 Lux @ (F1.2, AGC ON) |
| Shutter time | 1/25s ~ 1/100,000s |
| Lens | 5mm ×4, Pan: 180°, Tilt:78.4° |
| Lens Mount | CS |
| Adjustment Range | Pan: 0°~360°, tilt: 45°~90° |
| Day& Night | IR cut filter with auto switch |
| Wide Dynamic Range | Digital WDR |
| Digital noise reduction | 3D DNR |
| Compression Standard | |
| Video Compression | H.264/MJPEG |
| H.264 code profile | Baseline Profile / Main Profile / High Profile |
| Video bit rate | 32Kbps~16Mbps |
| Audio Compression | G.711/G.722.1/G.726/MP2L2 |
| Audio bit rate | 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-192Kbps(MP2L2) / 16-64Kbps(AAC) |
| Dual Stream | Yes |
| Image | |
| Max. Image Resolution | 4096×1800 |
| Frame Rate | Mode1: |
| Main stream: | |
| 50Hz: 25fps(4096 × 1800, 3840× 1680) | |
| 60Hz: 30fps(4096 × 1800, 3840× 1680) | |
| Mode2: | |
| Main stream: | |
| 50Hz: 25fps(2400 × 3840, 1200 × 1920) | |
| 60Hz: 24fps(2400 × 3840),30fps(1200 × 1920) | |
| Sub Stream | Mode1: |
| 50Hz: 25fps (704× 320) | |
| 60Hz: 30fps(704× 320) | |
| Mode2: | |
| 50Hz: 25fps(480 × 768, 320× 512) | |
| 60Hz: 30fps(480 × 768, 320× 512) | |
| Image Enhancement | BLC/ 3D DNR/ROI/Defog |
| Image Settings | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
| BLC | Support |
| Smart Defog | Support |
| 3D DNR | Support |
| ROI | Support |
| Picture Overlay | LOGO picture can be overlaid on video with 128x128 24bit bmp format |
| Day/Night Switch | Auto/Schedule/Triggered by Alarm In |
| Network | |
| Network Storage | NAS (Support NFS,SMB/CIFS), ANR |
| Alarm Trigger | Motion detection, tampering alarm, network disconnect , IP address conflict, storage exception |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, Bonjour |
| General Function | User Authentication, Watermark, IP address filtering |
| System Compatibility | ONVIF, ISAPI |
| Interface | |
| Audio | 1-ch 3.5 mm audio in (Mic in/Line in)/out interface |
| Alarm | 1 input, 1 output (up to DC24V 1A or AC110V 500mA) |
| Alarm Input | 1 |
| Alarm Output | 1 |
| On-board storage | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Button | Yes |
| General | |
| Operating Conditions | -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
| Humidity 95% or less (non-condensing) | |
| Power Supply | DC12V±10% / PoE (AC24V optional) |
| Power Consumption | 22W |
| Impact Protection | IK10 |
| Dimensions | Φ195×159 mm |
| Weight | 2850 g |
Hikvision DS 2CD6986F H Panoramik Ip Kamera Pdf Dosyası839.04 KB
Teknik Kısa
Depolama : Var
