Açıklama

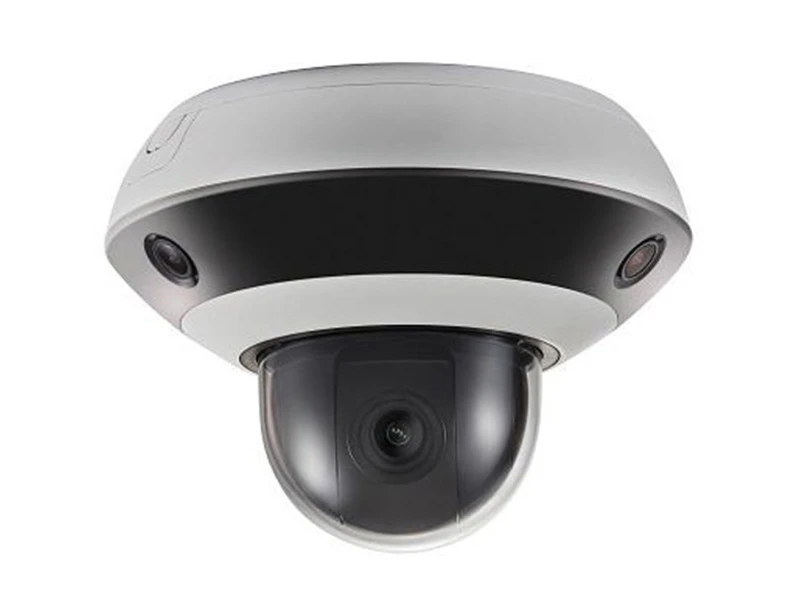

Hikvision DS 2PT3122IZ DE3 Panoramik PTZ Kamera

Özellikler

1-ch panoramic image and 1-ch close-up image
Support PTZ linkage
1-ch audio input and 1-ch audio output
Support H.265 video compression
Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
Open-ended API, support ONVIF, ISAPI, and CGI,support HIKVISION SDK and Third-Party Management Platform
Up to 10 m IR distance
Support Hik-Connec

Teknik Özellikler

Panoramic Camera
Image Sensor	1/2.8" progressive scan CMOS
Max. Image Resolution	1920 × 1080
Min. Illumination	Color: 0.05 Lux @(F2.0, AGC ON) B/W: 0.01 Lux @(F2.0, AGC ON) 0 Lux with IR
Lens	f2mm/F2.0
Angle of View	Horizontal field of view: 128.5°
	Vertical field of view: 75.7°
	Diagonal field of view: 144°
Main Stream	50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
Main Stream	60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Sub Stream	50 Hz: 20 fps (704 × 576, 640 × 480, 352 × 288)
	60 Hz: 20 fps (704 × 480, 640 × 480, 352 × 240)
Image Compression	H.265/H.264
White Balance	Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
Shutter Time	50 Hz: 1/1 s to 1/30,000 s
Shutter Time	60 Hz: 1/1 s to 1/30,000 s
Day& Night:	ICR
Tracking PTZ Camera
Image Sensor	1/2.8" progressive scan CMOS
Max. Image Resolution	1920 × 1080
Zoom Speed	Approx.5.4 s (optical, wide - tele)
Focal Length	2.8 mm to 12 mm, 4× optical zoom
Minimum Illumination	Color: 0.05 Lux @(F2.0, AGC ON)
	B/W: 0.01 Lux @(F2.0, AGC ON)
	0 Lux with IR
Angle of View	Horizontal field of view: 120° to 56.6° (wide - tele)
	Vertical field of view: 61.8° to 31.7° (wide - tele)
	Diagonal field of view: 149° to 65° (wide - tele)
White Balance	Auto / Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC	Support
Shutter Time	50 Hz: 1/1 s to 1/30,000 s
Shutter Time	60 Hz: 1/1 s to 1/30,000 s
Day & Night	IR Cut Filter
Optical Defog	Support
ROI encoding	Main stream and sub-stream respectively supports eight fixed areas.
Main Stream	50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
Main Stream	60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream	50Hz:25fps (704×576, 352×288, 176×144)
Sub Stream	60Hz:30fps (704×480, 352×240, 176×120)
Image Compression	H.265/H.264
WDR	Digital WDR
Privacy Masking	8 programmable privacy masks
Pan and Tilt
Pan Range	° to 350°
Pan Speed	0.1°/s to 30°/s (configurable), preset speed: 30°/s
Tilt Range	° to 90°
Tilt Speed	0.1°/s to 30°/s (configurable), preset speed: 30°/s
Number of Preset	300
Scheduled Task	Preset/Dome Reboot/Dome Adjust
Power-off memory	Support
System Function
PTZ Linkage	Support
IR	Up to 10 m IR distance
Input & Output
Audio Input	1-ch audio input
Audio Output	1-ch audio output
Network
Audio compression	G.711ulaw/G.711alaw/G.722/G.726/MP2L2/PCM
Protocol	IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
Application programming	Open-ended API, support Onvif, ISAPI, CGI
System Integration
Menu	English
User/Host Level	Up to 32 users,3 Levels: Administrator, Operator and User
Security Measures	User authentication (ID and PW); Host authentication (MAC address); IP address filtering
Web Browser	IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51
Simultaneous Live View	Up to 8 × 2 channels
Ethernet	1 RJ45 10 M/100 M Ethernet
Onboard Storage	Built-in Micro SD/SDHC /SDXC card slot, up to 128GB, manual/alarm recording
General
Power supply	12 VDC & PoE+ (802.3 at, class 4)
Consumption (without hard disk)	Max.19 W (Max. 2 W for IR)
Working temperature	-10°C to 50°C (14°F to 122°F)
Working humidity	Humidity 90% or less
Material	PC + ABS & Aluminum alloy
Protection Level	TVS 2000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimensions (W×D×H)	Φ 183 mm × 133.2 mm (Φ 7.20" × 5.24")
Weight	Approx. 0.9 kg (1.98 lb)
