Açıklama

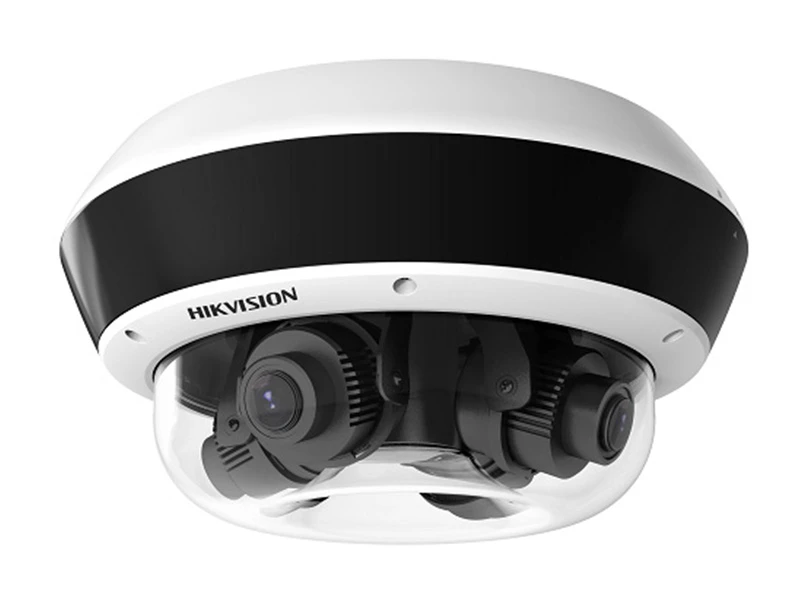

Hikvision DS 2CD6D54FWD IZHS Panoramik Ip Kamera

Özellikler

1/2.7” Progressive Scan CMOS
2560 x 1920 @ 25fps
FOV: horizontal 30° to 101°, vertical 22.4° to 73°, diagonal field of view: 37° to 137°
H.265, H.264, H.265+, H.264+
Fiber optical transmission, optional
10 m to 30 m IR range
IP67, IK10
4 flexible lens
6 behavior analyses, 4 exception detection, and face detection

Teknik Özellikler

Camera
Image Sensor	1/2.7” Progressive Scan CMOS
Signal System	PAL/NTSC
Min. Illumination	Color: 0.006 Lux @ (F1.2, AGC ON), 0.010 Lux @ (F1.6, AGC ON)
	B/W: 0.002 Lux @ (F1.2, AGC ON); 0.003 Lux @ (F1.6, AGC ON)
	0 Lux with IR on
Shutter time	1 s - 1/100,000 s
Lens	2.8mm to 12mm
Lens Mount	φ14
Adjustment Range	Four flexible lens in one track, slide range: -180° to 180°, tilt: 0° to 135°, rotate: 0° to 355°
Day& Night	IR cut filter with auto switch
Wide Dynamic Range	120 dB
Digital noise reduction	3D DNR
Compression Standard
Video Compression	H.265+/H.265/H.264+/H.264/MJPEG
H.264 code profile	Baseline Profile / Main Profile / High Profile
Video bit rate	32Kbps~16Mbps
Audio Compression	G.711/G.722.1/G.726/MP2L2
Audio bit rate	64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-192Kbps(MP2L2) / 16-64Kbps(AAC)
Dual Stream	Yes
Frame Rate	50Hz: 25fps (2560 × 1920, 2048 × 1536, 1920 × 1080, 1280 × 720)
Frame Rate	60Hz: 24fps (2560 × 1920, 2048 × 1536, 1920 x 1080,1280 x 720)
Sub Stream	50Hz: 25fps (704 × 576, 640 × 480)
Sub Stream	60Hz: 30fps (704 × 480, 640 × 480)
Third Stream	50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480)
Third Stream	60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480)
Image Enhancement	BLC, 3D DNR, EIS
Image Settings	Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
BLC	Support
3D DNR	Support
Picture Overlay	LOGO picture can be overlaid on video with 128x128 24bit bmp format
Day/Night Switch	Day/Night/Auto/Schedule/Triggered by Alarm In (-S)
Network
Network Storage	microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger	Motion detection, tampering alarm, network disconnect , IP address conflict, storage exception
Protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, Bonjour
General Function	User Authentication, Watermark, IP address filtering
System Compatibility	ONVIF (Profile S, Profile G), ISAPI
Interface
Communication Interface	1 RJ45 10M/100M/1000M Ethernet port
	1 RS-485 interface (-S)
	1 1000M FC fiber optical interface (-/NFC)
Audio	With –S model: 1 input (line in), 1 output
Alarm	2 input, 2 output (up to 24 VD, 1A or 110 VAC, 500mA )(-S model)
On-board storage	Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button	Yes
Audio
Environment Noise Filtering	Support(-S)
Audio Sampling Rate	8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
Smart Feature-set
Behavior Analysis	Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal
Line Crossing Detection	Cross a pre-defined virtual line
Intrusion Detection	Enter and loiter in a pre-defined virtual region
Region Entrance	Enter a pre-defined virtual region from the outside place
Region Exiting	Exit from a pre-defined virtual region
Unattended Baggage	Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal	Objects removed from the pre-defined region, such as the exhibits on display.
General
Operating Conditions	-30 °C ~ 60 °C (-22 °F ~ 140 °F)
Operating Conditions	Humidity 95% or less (non-condensing)
Power Consumption	12 VDC ± 20%: max. 28 W/2.3 A
	24 VAC ± 20%, max. 50 to 60 Hz/2.5 A (for customization)
	-IZ, -IZHS/NFC: Hi-PoE: 42.5 VDC to 57 VDC, max. 34W/0.9 A to 0.6 A
	-Z: PoE (802.3at): 42.5 VDC to 57 VDC, max. 17W
Impact Protection	IK10
Weather Proof	IP67
IR Range	Approx. 10 to 30 meters
Dimensions	Camera: Ø290 mm × 145.5 mm (Ø11.42" × 5.73")
Dimensions	Package: 453 mm × 393 mm × 385 mm (17.8" × 15.47" × 15.16")
Weight	Camera: Approx. 4.7 kg (10.3 lb.)
Weight	With package: Approx. 7.7 kg (16.8 lb.)
