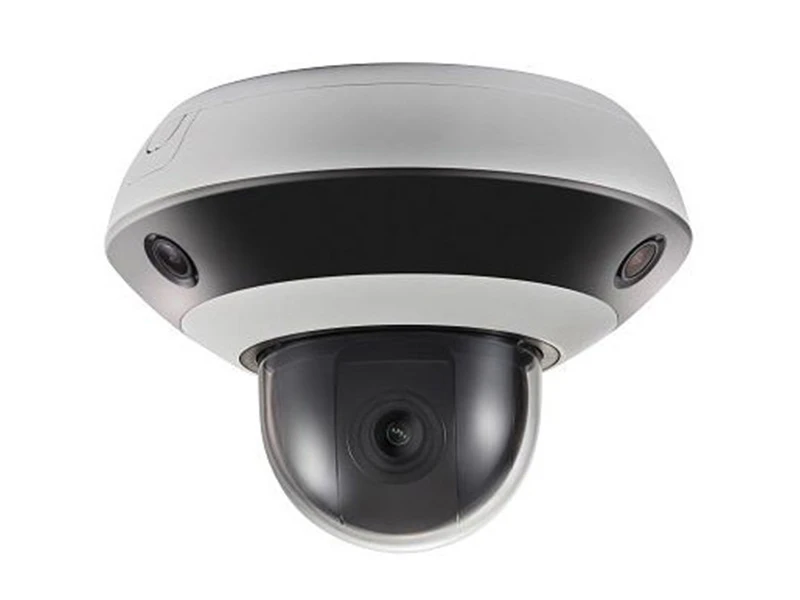

Hikvision DS 2PT3326IZ DE3 Panoramik Ip Kamera

Özellikler

Up to 3×1920×1080 resolution @30fps
Horizontal field of view: 130°
Min. illumination: Color: 0.01 Lux@(F1.6, AGC ON), B/W: 0.05 Lux@(F1.6, AGC ON), 0 Lux with IR
IR distance: 20m

Teknik Özellikler

Panoramic Camera
Image Sensor	Three 1/2.8" Progressive Scan CMOS
Max. Image Resolution	3X 2MP lens
Min. Illumination	Color: 0.05 Lux @(F2.0, AGC ON)
	B/W: 0.01 Lux @(F2.0, AGC ON)
	Lux with IR
Lens	2.0mm/ F1.6
Angle of View	Horizontal: 130°
Audio Exception Detection	Support
Main Stream	16:09
	50Hz: 25fps (1920×1080,1280×960,1280×720, 704×576,640×480,352×288) ,
	60Hz: 25fps(1920×1080,1280×960,1280×720, 704×480,640×480,352×240) ,
Image Compression	H.265/H.264/MJPEG
Others	20m IRm, 3D DNR, HLC, Motion Detection, Video Tampering Detection
Tracking PTZ Camera
Image Sensor	1/2.8" Progressive Scan CMOS
Max. Image Resolution	2MP
Min. Illumination	Color: 0.05 Lux @(F2.0, AGC ON)
	B/W: 0.01 Lux @(F2.0, AGC ON)
	Lux with IR
Focal Length	2.8 to 12mm, 4× optical zoom
Min. Working Distance	10mm to 1500mm (Wide-Tele)
Main Stream	16:09
	50Hz: 25fps (1920×1080,1280×960,1280×720, 704×576,640×480,352×288) ,
	60Hz: 25fps(1920×1080,1280×960,1280×720, 704×480,640×480,352×240) ,
Image Compression	H.265/H.264/MJPEG
Others	Optical WDR, Digital Defog, HLC, Smart IR, EIS, 3D DNR
Pan and Tilt (Tracking PTZ Camera)
Range	Pan: 350°, Tilt: ° to 90°
Speed	Pan Manual Speed: 0.1°/s to 30°/s (Configurable), Pan Preset Speed: 30°/s
Speed	Tilt Manual Speed: 0.1°/s to 30°/s (Configurable), Tilt Preset Speed: 30°/s
Number of Preset	300
Patrol	8 patrols, up to 32 presets per patrol
Pattern	4 patterns, with the recording time not less than 10 minutes per pattern
Park Action	Preset/ Pattern Scan/ Patrol Scan/ Auto Scan/ Tilt Scan/ Random Scan/ Frame Scan/ Panorama Scan
Scheduled Task	Preset/ Pattern Scan/ Patrol Scan/ Auto Scan/ Tilt Scan/ Random Scan/ Frame Scan/ Panorama Scan/ Dome Reboot/ Dome Adjust/ Aux Output
Power-off memory	Support
System Integration
Ethernet	1 RJ45 10 M/100 M Ethernet Interface/PoE+
Onboard Storage	Built-in memory card slot, support Micro SD/SDHC/SDXC (up to 128GB)
General
Power	DC12V/PoE
Working Temperature/ Humidity	Indoor: -10°C to 50°C/≤ 90%
Protection Level	IP54 Standard, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimensions(mm)	128.6 mm × Φ183 mm
Weight	0.93kg
