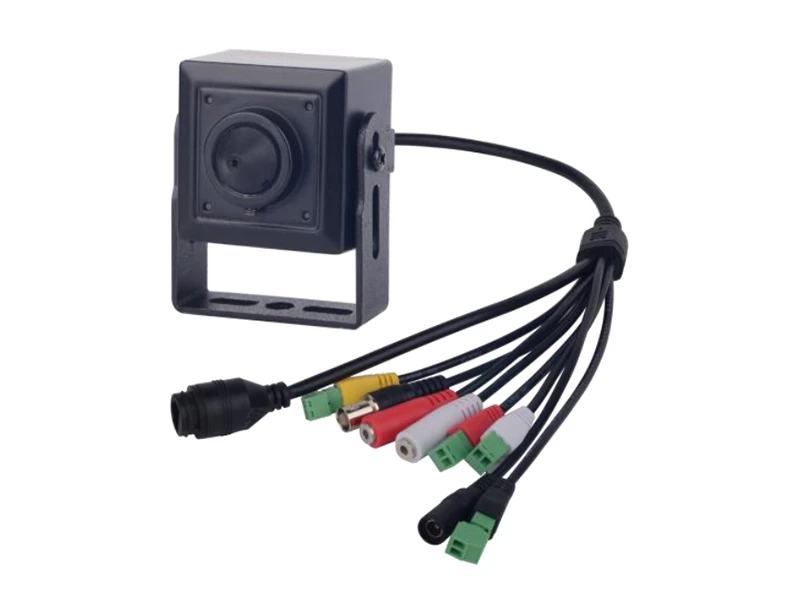

Sunell SN MNC57/20AG Pinhole IP Kamera

Özellikler

1/2.8” Progressive Scan CMOS
50fps/60fps@1080P(1920*1080)
Pinhole lens 3.7mm, 2.8mm fixed lens optional
Triple Streams, Triple Power Supply
WDR,3D DNR2 Ch Audio in,1 Ch Audio out
ROI, Defog, HLC, Corridor mode, DIS
Built-in SD/SDHC slot

Teknik Özellikler

Camera
Image Sensor	1/1.9” Progressive Scan CMOS
Effective Pixels	1920(H)×1080(V)
Scanning System	Progressive
Electronic Shutter	1/5-1/20000s
Min. illumination	Color:0.001Lux@(F1.2,AGC ON) ,
Min. illumination	B/W:0.0001Lux@(F1.2,AGC ON)
S/N Ratio	55dB
IR Distance	N/A
IR On/Off Control	N/A
IR LEDs	N/A
Pan/Tilt/Rotation Range	N/A
Lens
Lens Type	N/A
Iris	DC Auto Iris
Focal Length	N/A
F Number	N/A
Angle of View	N/A
Focus Control	N/A
Close Focus Distance	N/A
Video
Compression	H.265,H.264,MJPEG
Max. Resolution	1080P(1920×1080)
Streaming Capability	3 Streams
Stream /	Stream1:1920×1080/1280×720 @50/60fps
Frame Rate	Stream2: D1/VGA/640×360/CIF/QVGA @25/30fps
Frame Rate	Stream3: VGA/CIF/QVGA @25/30fps
Bit Rate Control	CBR/VBR
Bit Rate	Stream1: 500kbps~12000kbps
	Stream2: 100kbps~6000kbps
	Stream3: 100kbps~3000kbps
Day/Night	ICR
Image Enhancement	HLC / Defog / dWDR
White Balance	Support
Gain Control	Auto/Manual
Noise Reduction	2D/3D DNR
Electronic Image Stabilization(EIS)	Support
Smart IR	Support
Mirror	Support
Region of Interest	Support
Motion Detection	Support
Privacy Masking	Support
Audio
Compression	G.711 ,RAW_PCM
Bit Rate	64kbps (G.711), 128kps (RAW_PCM)
Network
Protocols:	IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, APR, SNMP
Interoperability	ONVIF
Streaming Method	Unicast
Max. User Access	10 Users
Web Viewer	<IE11, Chrome, Firefox
Management Software	IMS 3.0
Smart Phone	IOS, Android
Intelligence
IVS	Perimeter ,Single Virtual Fences ,Double Virtual Fences, Loiter ,Multi Loiter , Object Left ,Object Removed, Abnormal Speed ,Converse, Illegal Parking, Signal Bad
Interface
Ethernet	1 Ethernet (10/100 Base-T) RJ-45 Connector
Audio Interface	1ch Audio In,1ch Audio Out, 1ch Built-in MIC
Alarm	1ch Alarm In,1ch Alarm Out
RS485	Yes
BNC Output	Yes
Reset Button	Yes
Edge Storage	Micro SD ,Max 128GB
Electrical
Power Supply	AC24V/DC12V/POE
Power Consumption	5W(MAX)
Operating Temperature	Starting Temperature: -10°C ~ 50°C (14°F ~ 122°F )
Operating Temperature	Working Temperature: -20°C ~ 50°C (-4°F ~ 122°F)
Operating Humidity	Less than 90% RH
Ingress Protection	N/A
Certifications	CE / FCC
Casing	Metal
Dimensions	150.2mm x75mm x69.7mm
Net Weight	400g
