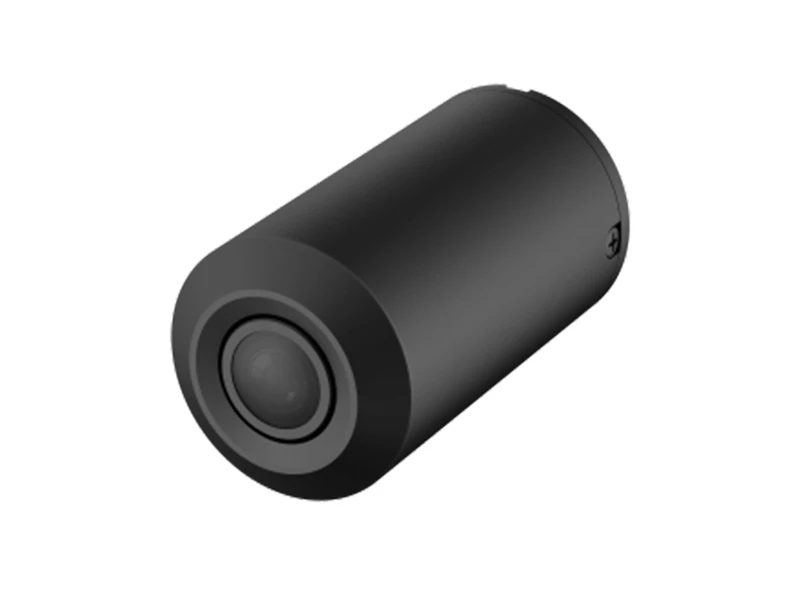

Dahua IPC HUM8431 L3 IP Pinhole Kamera
Özellikler
- 1/2.7” 4Megapixel progressive scan CMOS
- Day/Night(Electronic), WDR
- 2.8mm Fixed Pinhole Lens
- 8-meters cable
- Support IP67
- Require a Main Box to work together
Teknik Özellikler
| Camera | ||||
| Image Sensor | 1/2.7” 4Megapixel progressive scan CMOS | |||
| Scanning System | Progressive | |||
| Effective Pixels | 1920(H)x1080(V) | |||
| Minimum Illumination | 0.006Lux/F1.8 (Color,1/3s,30IRE) 0.04Lux/F1.8 (Color,1/30s,30IRE) 0.003Lux/F1.8 (B/W,1/3s,30IRE) 0.02Lux/F1.8 (B/W,1/30s,30IRE) | |||
| IR Distance | N/A | |||
| IR On/Off Control | N/A | |||
| IR LEDs | N/A | |||
| Lens | ||||
| Lens Type | Fixed | |||
| Mount Type | Board-in | |||
| Focal Length | 2.8mm | |||
| Max. Aperture | F1.8 | |||
| Angle of View | H:109° ,V:60° | |||
| Optical Zoom | N/A | |||
| Focus Control | Fixed | |||
| Close Focus Distance | 0.7m | |||
| DORI Distance | Detect | Observe | Recognize | Identify |
| 56m(183ft) | 22m(72ft) | 11m(36ft) | 5m(16ft) | |
| Pan/Tilt/Rotation | ||||
| Pan/Tilt/Rotation Range | N/A | |||
| Certifications | ||||
| Certifications | CE (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15 Subpart B | |||
| Environmental | ||||
| Operating Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH | |||
| Strorage Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH | |||
| Ingress Protection | IP67 | |||
| Vandal Resistance | N/A | |||
| Construction | ||||
| Casing | Metal | |||
| Dimensions | Φ30.5mm×57.6mm(Φ1.20”×2.27”) | |||
| Net Weight | 0.40Kg (0.88lb) | |||
| Gross Weight | 0.47Kg (1.03lb) | |||
Dahua IPC HUM8431 L3 IP Pinhole Kamera Pdf Dosyası386.18 KB
Teknik Kısa
Çözünürlük : 4MP
Ses : Var
Depolama : Var
