Açıklama

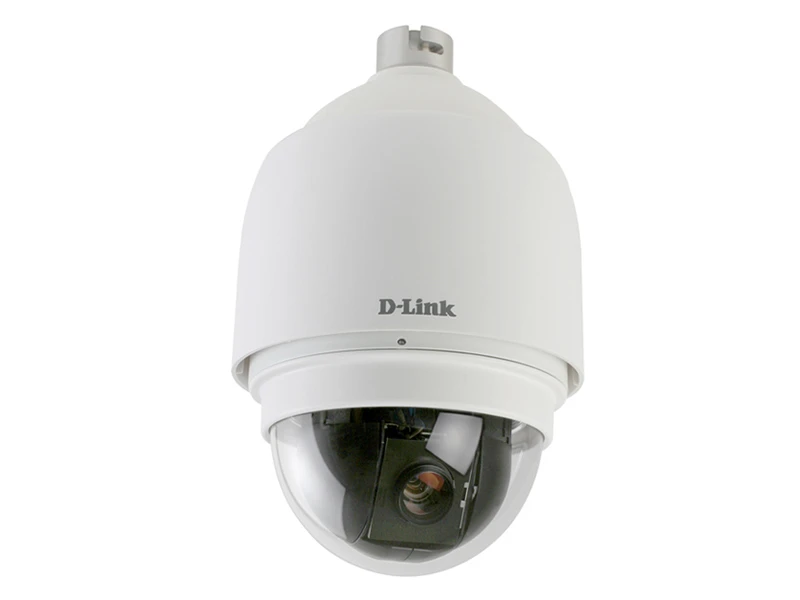

D-Link DCS 6915 A1A IP HD Speed Dome Kamera
Teknik Özellikler
| Camera Hardware Profile |
| Sony Exmor 1/2.8" 3 Megapixel CMOS Sensor |
| Variable Speed 20x Optical Zoom |
| Day & Night with Mechanical IR Filter |
| 0.1 Lux (Color); 0.01 Lux (B/W) |
| Electronic shutter speed 1/1 - 1/10,100 second |
| Wide Dynamic Range (WDR) |
| Focal Length: 4.7 to 96 mm |
| Horizontal Field of View: 52° to 4° |
| PTZ Hardware Profile |
| Pan travel: 360° endless |
| Tilt Travel: -10° to 190° |
| Presets: 256 points |
| Preset Accuracy: ± 0.225° |
| Preset Speed: 5° to 400° per second |
| Sequence Paths: 8 |
| Auto Pan Paths: 4 |
| Cruise Paths: 8 |
| Pan and tilt speed proportional to zoom ratio |
| Resume after power loss |
| Home Function: Preset, Sequence, Auto pan, Cruise |
| Auto Flip: Mechanical/Digital/Off |
| Digital Slow Shutter |
| Image Freeze |
| Image Inverse |
| Image Features |
| Adjustable image size, quality, frame rate and bit rate |
| Time stamp and text overlays |
| Configurable motion detection windows |
| 16 configurable privacy masks |
| Configurable white balance, shutter speed, brightness, saturation, contrast, sharpness |
| Video Compression |
| Simultaneous H.264/MJPEG format compression |
| H.264 multicast streaming |
| JPEG for still images |
| Video Resolution |
| 1920 x 1080 (1080P) |
| 1280 x 720 (720P) |
| 800 x 600 (SVGA) |
| 640 x 480 (VGA) |
| 1280 x 1024 (SXGA) |
| 1024 x 768 (XGA) |
| 640 x 480 (VGA) |
| 320 x 240 (CIF) |
| Audio Compression |
| G.726 |
| G.711 |
| External Device Interfaces |
| 4 alarm inputs |
| 2 alarm outputs |
| Audio input/output |
| microSD card slot1 |
| Network Protocol |
| IPv4, TCP/IP, UDP, ICMP, DHCP Client, NTP Client (D-Link), DNS Client, DDNS Client (D-Link), SMTP Client, FTP Client, HTTP, PPPoE, UPnP Forwarding, RTP/RTSP/RTCP, IP filtering, IGMP, IEEE802.1x, QoS, SNMP, ONVIF Compliant |
| Security |
| Administrator and user group protection |
| Password authentication |
| System Requirements for Web Interface |
| Microsoft Windows 8/7/Vista/XP/2000 |
| Internet Explorer, Chrome, or Firefox |
| Event Management |
| Motion detection |
| Tamper detection |
| Event notification and upload snapshots/video clips via SMTP or FTP |
| Multiple event notification |
| Multiple recording methods for easy backup |
| Supports multiple HTTP, SMTP and FTP servers |
| Remote Management |
| Configuration accessible via web browser |
| Take snapshots/video clips and save to local hard drive |
| D-ViewCam System Requirements |
| Operating System: Microsoft Windows 7/Vista/XP |
| Web Browser: Internet Explorer 7 or higher |
| D-ViewCam Software Functions |
| Remote management/control of up to 32 cameras |
| Viewing of up to 32 cameras on one screen |
| Supports all management functions provided in web interface |
| Scheduled motion triggered, or manual recording options |
| Power Input |
| AC 24V, 3A |
| 802.3at PoE+2 |
| Max. Power Consumption |
| Max 65W (with heater) |
| Temperature |
| Operating: -40° to 122° F (-40° to 50° C) |
| Storage: -4° to 158° F (-20° to 70° C) |
| Humidity |
| 20% to 80% non-condensing |
| Housing Ratings |
| IP66 Weatherproof |
| IK10 Vandalproof |
| Certifications |
| FCC (Class A) |
| CE (Class A) |
| CE LVD (EN60965-1) |
| ICES-003 |
| C-Tick |
Teknik Kısa
Çözünürlük : 2MP (1080P)
Ses : Var
