Açıklama

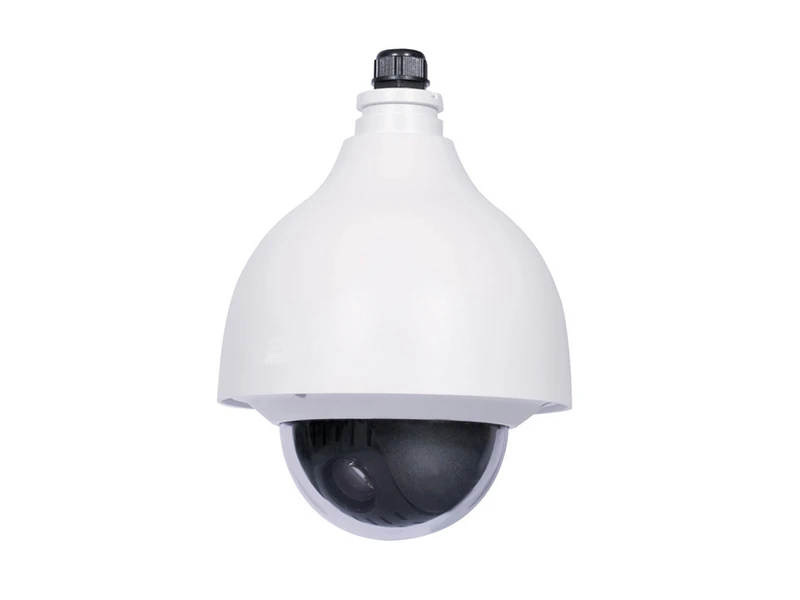

Dahua DH SD40212S HN IP HD Speed Dome Kamera

Özellikler

Powerful 12x optical zoom
Max. 25/30fps @ 1080P &; 50/60fps @ 720P,
DWDR, Day/Night (ICR), DNR (2D&3D), Auto iris, Auto focus, AWB, AGC, BLC
Max 300°/s pan speed, 360° continuous pan rotation
Up to 255 presets, 5 auto scan, 8 tour, 5 pattern
Built-in 2/1 alarm in/out
Support intelligent 3D positioning with DH-SD protocol
IP66, POE+

Teknik Özellikler

Camera
Image Sensor	1/3" Exmor CMOS
Effective Pixels	1944(H) x 1092(V), 2 Megapixels
Horizontal Resolution	>1000TVL
Scanning System	Progressive
Electronic ShutterSpeed	1/3s ~1/30,000s
Min. Illumination	Color: 0.05 Lux/F1.6, B/W: 0.005Lux/F1.6
S/N Ratio	More than 55dB
Camera Features
Day/Night	Auto(ICR) / Color / B/W
Backlight Compensation	BLC / HLC / DWDR (Digital WDR)
White Balance	Auto, ATW, Indoor, Outdoor, Manual
Gain Control	Auto / Manual
Noise Reduction	2D / 3D
Privacy Masking	Up to 24 areas
Digital Zoom	16x
Lens
Focal Length	5.1 mm~61.2mm (12x Optical zoom)
Max Aperture	F1.2~ F2.1
Focus Control	Auto / Manual
Angle of View	51.3° ~ 4.64°
Close Focus Distance	100mm~1000mm
PTZ
Pan/Tilt Range	Pan: 0° ~ 360° endless; Tilt: -2° ~ 90°, auto flip 180°
Manual Control Speed	Pan: 0.1° ~ 300°/s; Tilt: 0.1° ~120°/s
Preset Speed	Pan: 300°/s; Tilt:200°/s
Preset	80(DH-SD) , 255(Pelco-P/D)
PTZ Mode	5 Pattern, 8 Tour, 5 Auto Scan, Auto Pan
Speed Setup	Human-oriented focal length/ speed adaptation
Power up Action	Auto restore to previous PTZ and lens status after power failure
Idle Motion	Activate Preset/Pan/Scan/Tour/Pattern if there is no command in the specified period
Protocol	DH-SD (Auto recognition)
Video
Compression	H.264 / MJPEG
Resolution	1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240)
Frame Rate	Main Stream	1080P/D1 (1 ~ 25/30fps) /720P(1~50/60fps)
	Sub Stream	D1/CIF(1 ~ 25/30fps)
Bit Rate	H.264: 448K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps
Audio
Compression	G.711a / G.711u (32kbps) / PCM (128kbps)
Interface	1/1 channel In/Out
Network
Ethernet	RJ-45 (10/100Base-T)
Protocol	IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
ONVIF	ONVIF Profile S
Max. User Access	20 users
Smart Phone	iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot	Micro SD, Max 64GB
RS485	N/A
Alarm	2/1 channel In/Out
General
Power Supply	AC24V/1.5A (±10%), POE+(802.3at)
Power Consumption	12W, 22W(Heater on)
Working Environment	-40ºC ~ 60ºC /
	Less than 90% RH
Ingress Protection	IP66
Vandal Resistance	IK10 (optional)
Dimensions	Φ186mm×234mm
