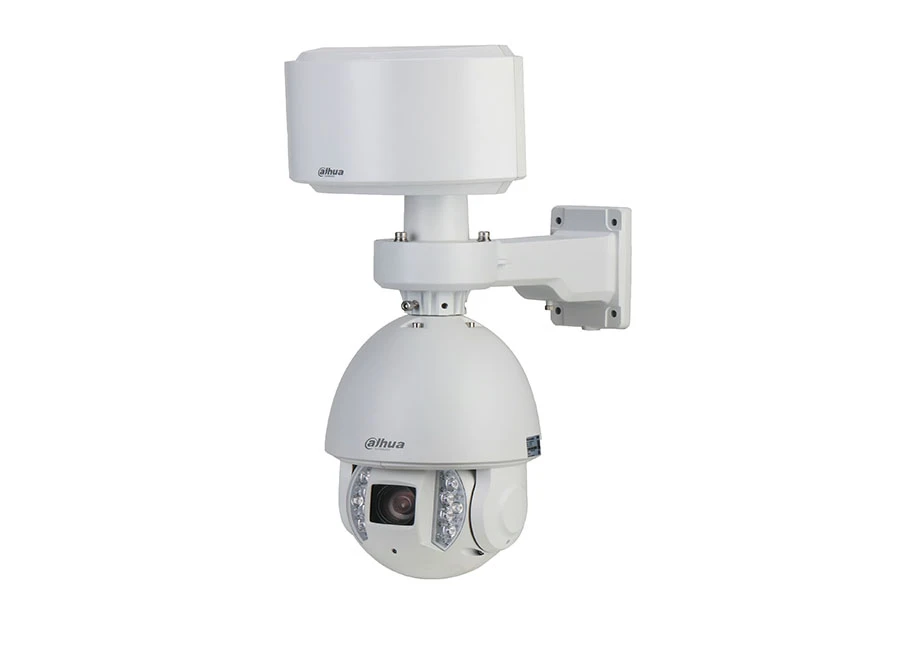

Dahua PFR4KS E50 Radar PTZ Kamera
Özellikler
- Active detection: 24-hour continuous detection
- Stereo protection: max. 50m detection distance, 120° detection range
- High accuracy: fewer false alarms and zero miss alarm
- Radar-PTZ linkage solution: realize the perfect combination of the video and radar
- Fast data transmission: control PTZ directly with edge computing
- IP67 , IK10
- 1/1.8” 2Megapixel CMOS
- Powerful 33x optical zoom;
- Starlight technology
- H.265 encoding
- Max. 50/60fps@1080P
- Support Hi-PoE
- IR distance up to 220m
- IP67
Teknik Özellikler
| Radar | |
| Working Frequency | 24.05~24.25GHz |
| Transmit Power | <20 dbm="" 100mw="" --20--=""> |
| Network Interface | RJ45 |
| Detecting Mode | Doppler, slow-moving, quick-through. |
| Target Type | Human/Vehicle/Animal |
| Max. Target Number | 64 |
| Distance | 50m(164.04ft) |
| Angle(Horizontal) | 120° |
| Angle(Vertical) | 20° |
| Scan Frequency | 10Hz |
| Max. Detection Speed | ≤50km/h, continuous trace |
| Min. Detection Speed | 0.17m/s, continuous trace |
| Angle Accuracy | ±1° |
| Installation Height | 2~4m(6.56~13.12ft) |
| Modulation Type | FMCW (Frequency-Modulated Continuous-Wave) |
| Distance Accuracy | ±5m(1.64ft) |
| Transmission power | <20 dbm="" --20--=""> |
| Camera | |
| Image Sensor | 1/1.9” CMOS |
| Effective Pixels | 1920(H) x 1080(V), 2 Megapixels |
| Scanning System | Progressive |
| Electronic Shutter Speed | 1/1s~1/30,000s |
| Minimum Illumination | Color: 0.0024Lux@F1.6; B/W: 0.0024Lux@F1.6; 0Lux@F1.6 (IR on) |
| S/N Ratio | >56.5dB |
| IR Distance | Distance up to 220m (722ft) |
| IR On/Off Control | Auto /Manual |
| Lens | |
| Focal Length | 6mm~198mm |
| Max. Aperture | F1.5-F4.8 |
| Angle of View | H: 60.4°~2.4° |
| Optical Zoom | 33x |
| Close Focus Distance | 10mm~1500mm |
| PTZ | |
| Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: -20° ~ 90°,auto flip 180° |
| Manual Control Speed | Pan: 0.1° ~200° /s; Tilt: 0.1° ~120° /s |
| Preset Speed | Pan: 240° /s; Tilt: 200° /s |
| Presets | 300 |
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan ,Auto Scan |
| Speed Setup | Human-oriented focal Length/ speed adaptation |
| Power up Action | Auto restore to previous PTZ and lens status after power failure |
| Idle Motion | Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period |
| Protocol | DH-SD, Pelco-P/D (Auto recognition) |
| Intelligence | |
| Event Trigger | Motion detection, Video tampering , Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly |
| IVS | Tripwire, Intrusion, Abandoned/Missing |
| Smart Tracking | |
| Auto Tracking | Support |
| Import Map | Support PNG, JPG, and BMP maps with the resolution of 480×360~3000×4000 |
| Draw defense protection zone | Support draw alarm zones and shield zones |
| Video | |
| Compression | H.265+/H.265/H.264+/H.264/MJPEG(Sub Stream) |
| Streaming Capability | 3 Streams |
| Resolution | 1080P(1920×1080)/1.3M(1280x960)/720P(1280× 720)/D1(704×576/704×480)/CIF(352×288/352×240) |
| Frame Rate | Main stream: 1080P/1.3M/720P((1~50/60fps) |
| Sub stream1: D1/CIF(1 ~ 25/30fps) | |
| Sub stream2: 1080P/720P/D1/(1 ~ 25/30fps) | |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.265/H.264: 256K ~ 8192Kbps |
| Day/Night | Auto(ICR) / Color / B/W |
| Backlight Compensation | BLC / HLC / WDR(140dB) |
| White Balance | Auto, ATW, Indoor, Outdoor, Manual |
| Gain Control | Auto / Manual |
| Noise Reduction | Ultra DNR (2D/3D) |
| Motion Detection | Support |
| Region of Interest | Support |
| Electronic Image Stabilization (EIS) | Support |
| Optical Defog | Support |
| Digital Zoom | 16x |
| Flip | 180° |
| Privacy Masking | Up to 24 areas |
| Audio | |
| Compression | G.711a/G.711mu/PCM/G.726/AAC/G722.1/G.729/MPEG2-Layer2 |
| Network | |
| Ethernet | RJ-45 (10Base-T/100Base-TX) |
| Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x |
| Interoperability | ONVIF Profile S&G, API |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 20 users |
| Edge Storage | NAS (Network Attached Storage),Local PC for instant recording, Micro SD card 128GB |
| Web Viewer | IE, Chrome, Firefox, Safari |
| Management Software | Smart PSS, DSS, DMSS |
| Smart Phone | IOS, Android |
| Certifications | |
| Certifications | FCC: EMC Part 15B |
| FCC ID: RF Part 15C | |
| CE: EN55032/EN55024/EN301489 | |
| Interface | |
| Video Interface | 1 port(BNC, 1.0V[p-p], 75Ω) |
| RS485 | 1 |
| Audio I/O | 1.1 |
| Alarm I/O | 7.2 |
| Electrical | |
| Power Supply | 36V DC/2.23A (±25%), Hi-PoE |
| Power Consumption | Radar: 8W |
| PTZ: 24W, 38W (IR on) | |
| Environmental | |
| Operating Conditions | -40°C ~ 65°C (-40°F ~ +149°F) / Less than 95% RH |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 (Radar) |
| Construction | |
| Casing | Metal |
| Dimensions | 443.3mm x 297mm x 665.3mm (17.45"x11.69"x26.19") |
| Net Weight | 12.5kg(27.56lb) |
| Gross Weight | 16kg(35.27lb) |
Teknik Kısa
Irled : Var
Çözünürlük : 2MP (1080P)
