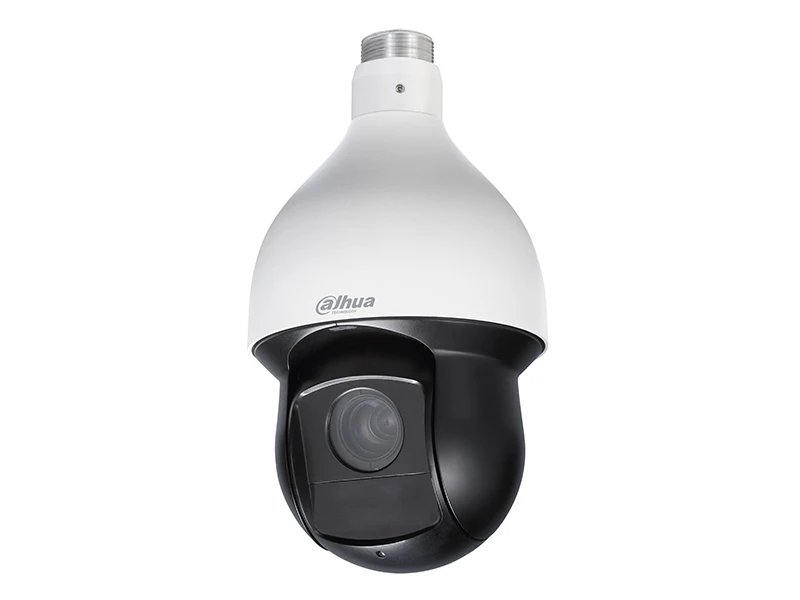

Dahua SD59430U-HN IP HD Speed Dome Kamera
Özellikler
- 4.5mm~135mm Lens,
- 30x Optik Zoom, 16x Dijital Zoom,
- 1/3" 2MP CMOS,
- 25/30fps @ 4M(2592×1520) & 50/60fps @1080P resolution,
- 400°/s Pan Hızı,360°/s sonsuz dönüş.
- H265/264/MJPEG Triple Codec,
- Çoklu Network Görüntüleme,WDR,
- Day/Night(ICR), Ultra DNR (2D&3D),
- Auto iris, Auto focus, AWB, AGC, BLC, HLC,
- 1xRJ45(100M),
- Maks. 64Gb Micro SD Memory,
- IP66, 2/1xAlarm, 1/1xSes,
- IR LED G.Mesafesi: 100m(AC24V) / 80m(PoE+)
Teknik Özellikler
| Camera |
| Image Sensor : 1/3”Color CMOS |
| Effective Pixels : 2688(H) x 1520(V) 4Mp |
| Scanning System : Progressive |
| Electronic Shutter Speed : 1/3 ~ 1/30,000s |
| Min. Illumination : Color: 0.05Lux @ F1.6; B/W: 0.005Lux @ F1.6 |
| S/N Ratio : More than 55dB |
| Video Output : BNC(1.0Vp-p/75Ω), PAL / NTSC |
| Camera Features |
| Day/Night : Auto(ICR) / Color / B/W |
| Backlight Compensation : BLC / HLC / WDR |
| White Balance : Auto, ATW, Indoor, Outdoor, Manual |
| Gain Control : Auto / Manual |
| Noise Reduction : Ultra DNR (2D/3D) |
| Privacy Masking : Up to 24 areas |
| Digital Zoom : 16x |
| Lens |
Focal Length : 4.5mm ~ 135.0mm(30x Optical zoom) |
| Max Aperture : F1.6~F4.4 |
| Focus Control : Auto / Manual |
| FOV-H : H: 60° ~ 2.2° |
| Close Focus Distance : 100mm~ 1500mm |
| PTZ |
| Pan/Tilt Range : Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°, auto flip 180° |
| Manual Control Speed : Pan: 0.1° ~300° /s; Tilt: 0.1° ~200° /s |
| Preset Speed : Pan: 400° /s; Tilt: 300° /s |
| Preset : 300 |
| PTZ Mode : 5 Pattern, 8 Tour, Auto Pan, Auto Scan |
| Speed Setup : Human-oriented focal length/ speed adaptation |
| Power up Action : Auto restore to previous PTZ and lens status after power failure |
| Idle Motion : Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period |
IR Distance : 80m (PoE+) :100m (AC24V) |
| Video |
| Compression : H.265 /H.264 / MJPEG |
| Resolution : 4M(2592×1520)/3M(2304×1296)/1080P(1920×1080)/ 1.3M(1280×960)/720P(1280×720) / D1(704×576/ 704×480) /CIF |
| Frame Rate : Main Stream <4M/3M(1-25/30fps)/1080P(1-50/60fps)/1.3M/720P(1-25/30fps) |
| Sub Stream 1 : D1/CIF(1 - 25/30fps) |
| Sub Stream 2 : 1080P /960P/720P(1 -25/30fps) |
| Bit Rate : H.265/H.264: 192K ~ 8192Kbps, MJPEG: 192K ~ 2048Kbps |
| Audio |
| Compression : G.711a / G.711Mu(32kbps)/ PCM(128kbps) |
| Interface : 1/1 channel In/Out |
| Intelligent Function |
| IVS (optional) : Tripwire, Intrusion, Abandoned Object Detection, Missing Object Detection |
| Face Detection : Support |
| Network |
| Ethernet : RJ-45 (10/100Base-T) |
| Protocol : IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x |
| Compatibility : ONVIF PSIA CGI |
| Max. User Access : 20 users |
| Smart Phone : iPhone, iPad, Android, Windows Phone |
| Auxiliary Interface |
| Memory Slot : Micro SD, Max 128GB |
| Alarm : 2/1 channel In/Out |
| General |
| Power Supply : AC24V, POE plus(802.3at) |
| Power Consumption : PoE: 13W, 20W (IR on) |
| AC24V: 13W, 23W (IR on) |
| Working Environment : PoE: -30ºC - 60ºC / Less than 90% RH |
| AC24V: -40ºC - 70ºC / Less than 90% RH |
| Ingress Protection : IP66 |
| Dimensions : Φ186.0(mm) x 309(mm) |
| Weight : 3.5kg |
Dahua SD59430U HN IP HD Speed Dome Kamera Pdf Dosyası277.84 KB
Teknik Kısa
Depolama : Var
Çözünürlük : 2MP (1080P)
Irled : Var
