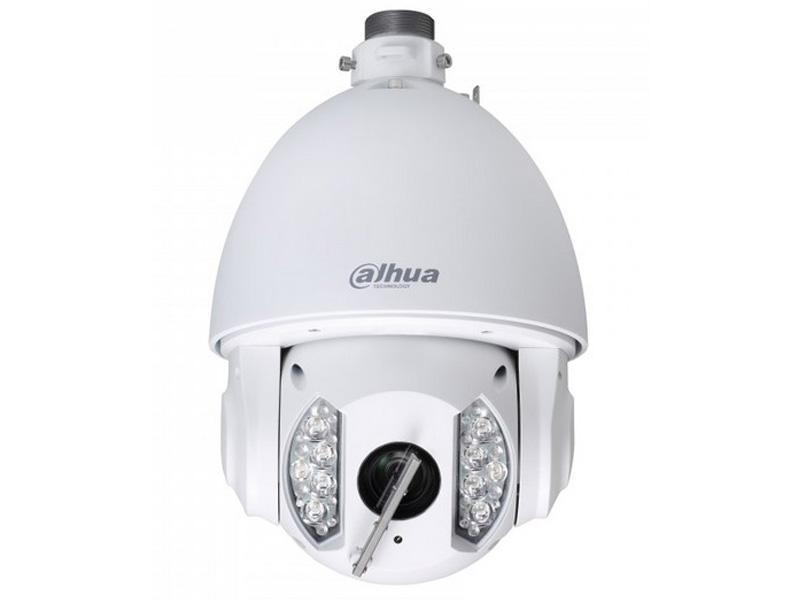

Dahua SD6AW230 HNI IP HD Speed Dome Kamera

Özellikler

2 Megapiksel Full HD Ultra-Smart IR Speed Dome IP Kamera
4.3mm~129mm lens,
30x Optik Zoom, 16x Dijital Zoom,
1/2.8" 2 MP Exmor CMOS,
30fps @ 2MP(1920x1080),
240°/s Pan Hızı, H.264/MJPEG Three Stream Encoding,
Ç.Network Görüntüleme,
D-WDR, Gece/Gündüz (ICR),
IR LED G.Mesafesi: 150m, Oto Iris, Oto Odak,
AWB, AGC, BLC, 3D-DNR, Sis Giderme,
EIS, Oto Takip, IVS, 1xRJ45(100M),
Maks. 64Gb Micro SD Memory, IP66, 7xAlarm, 1xSes, Silecek

Teknik Özellikler

Camera

Image Sensor : 1/2.8" Exmor CMOS

Effective Pixels : 1944(H) x 1092(V), 2 Megapixels

Scanning System : Progressive

Electronic Shutter Speed : 1/1 ~ 1/30,000s

Min. Illumination : Color: 0.05Lux @ F1.6; B/W: 0.005Lux @ F1.6

S/N Ratio : More than 50dB

Video Output : BNC(1.0Vp-p/75Ω), PAL / NTSC

Camera Features

Day/Night : Auto(ICR) / Color / B/W

Backlight Compensation : BLC / HLC / DWDR (Digital WDR)

White Balance : Auto, ATW, Indoor, Outdoor, Manual

Gain Control : Auto / Manual

Noise Reduction : Ultra DNR (2D/3D)

Privacy Masking : Up to 24 areas

Digital Zoom : 16x

Defog : On / Off

Wipe : Support

Lens

Focal Length : 4.3mm~129mm (30x Optical zoom)

Max Aperture : F1.6 ~ F4.7

Focus Control : Auto / Manual

FOV-H : H: 65.1°~ 2.34°

Close Focus Distance : 100mm~ 1000mm

PTZ

Pan/Tilt Range : Pan: 0° ~ 360° endless; Tilt: -10° ~ 90°, auto flip 180°

Manual Control Speed : Pan: 0.1° ~200° /s; Tilt: 0.1° ~120° /s

Preset Speed : Pan: 240° /s; Tilt: 200° /s

Preset : 300

PTZ Mode : 5 Pattern, 8 Tour, Auto Pan, Auto Scan

Speed Setup : Human-oriented focal length/ speed adaptation

Power up Action : Auto restore to previous PTZ and lens status after power failure

Idle Motion : Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period

Time Task : Auto activation of Preset/ Pan/ Scan/ Tour/ Pattern by preset-time

Protocol : DH-SD (Auto recognition)

IR Distance : 150m (2 near IR LED+ 8 far IR LED)

Video

Compression : H.264 / MJPEG

Resolution : 1080P(1920×1080) / 720P(1280×720) / D1(704×576/704×480) / CIF (352×288/352×240)

Frame Rate : Main Stream 1080P (1 ~ 25/30fps) / 720P(1~50/60fps)

Sub Stream1 : D1/CIF(1 ~ 25/30fps)

Sub Stream2 : 720P/D1/CIF(1 ~ 25/30fps)

Bit Rate : H.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps

Audio

Compression : G.711a / G.711u(32kbps)/ PCM(128kbps)

Interface : 1/1 channel In/Out

Intelligent Function

Auto Tracking : Single-scene, multiple-scene, panorama-scene

IVS (optional) : Tripwire, Cross Warning Zone, Perimeter Protection, Loitering Detection, Abandoned Object Detection, Missing Object Detection, Illegal Parking, Fast Moving and etc.

Tracking Trigger Mode : Manual / Auto (alarm triggered)

Tracking Trigger Event : Targeting, Zoom, Tracking, Recording, Snapshot, Alarm and etc.

Network

Ethernet : RJ-45 (10/100Base-T)

Protocol : IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x

Compatibility : ONVIF PSIA CGI

Max. User Access : 20 users

Smart Phone : iPhone, iPad, Android, Windows Phone

Auxiliary Interface

Memory Slot : Micro SD, Max 64GB

Alarm : 7/2 channel In/Out

General

Power Supply : AC 24V/3A (±16%)

Power Consumption : 20W, 43W (IR on, Heater on)

Working Environment : -40ºC ~ 70ºC / Less than 90% RH

Ingress Protection : IP66

Dimensions : Φ252(mm) x 385 (mm)
