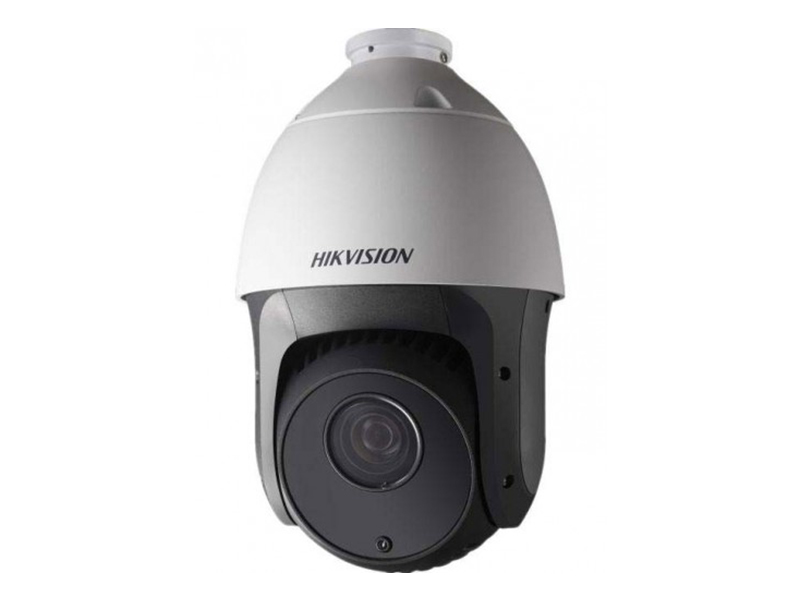

Hikvision DS 2DE5120I AE IP HD Speed Dome Kamera

Özellikler

1/2.8" Progressive Scan CMOS
1280 x 960
20X Optical Zoom
DWDR
3D intelligent positioning function
Support EZVIZ cloud P2P
Up to 150m IR distanceg
Hi-PoE / 24VAC power supply
Support BNC output

Teknik Özellikler

Camera
Image Sensor	1/2.8" Progressive Scan CMOS
Effective Pixels	1280(H) × 960(V)/1920(H) × 1080(V)
Signal System	PAL/NTSC
Minimum Illumination	F1.5, AGC On: Color: 0.02 lux, B/W : 0.002 lux, 0 lux with IR
White Balance	Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC	Auto/Manual
S/N Ratio	≥ 52dB
BLC	ON/OFF
HLC	Support
Smart defog	Support
WDR	Support
Shutter Time	1-1/10,000s
Digital Zoom	16X
Privacy Masking	8 privacy masks programmable
Auto Focus	Auto / Semi-automatic / Manual
Lens
Focal Length	4.7-94.0mm, 20x
Zoom Speed	Approx.3s(Optical Wide~Tele)
Angle of View	58.3-3.2 degree (Wide~Tele)
Minimum Working Distance	10~1,000mm(Wide~Tele)
Aperture Range	F1.6~F3.5
Pan & Tilt
Pan Range	360° continuous
Pan Speed	Pan Manual Speed: 0.1°~400°/s, Pan Preset Speed: 400°/s
Tilt Range	-15°-90° (Auto Flip )
Tilt Speed	Tilt Manual Speed: 0.1°~200°/s, Tilt Preset Speed: 200°/s
Proportional Zoom	Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset	300
Patrol	8 patrols, up to 32 presets per patrol
Park Action	Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
Infrared
IR irradiation distance	150m
Alarm
Alarm Input	2 channel signal input with adjustable priority
Alarm Output	1 channels output
Alarm Actions	Preset, Patrol, Pattern, Recording, Relay output, Upload center, upload FTP, email linkage
Input & Output
Audio Input	1 Mic in/Line in interface
Audio Input	Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%
Audio Output	1 Audio output interface
Audio Output	Line level, impedance: 600Ω
Network
Ethernet	10Base -T, /100Base-TX, RJ45 Connector
Frame Rate	DS-2DE5120I-AE: 50Hz:25fps(1280×960), 25fps (1280×720), 60Hz:30fps(1280×960), 30fps (1280×720)
	DS-2DE5220I-AE: 50Hz: 25 fps (1920x1080), 25 fps (1280x720)
	60Hz: 30 fps (1920x1080), 30 fps (1280x720)
Sub Stream	50Hz: 25fps(704×576), 25fps (352×288), 25fps (176×144)
Sub Stream	60Hz: 30fps(704×480), 30fps (352×240), 30fps (176×120)
Image Compression	H.264 / MJPEG
Audio Compression	G.711ulaw/G.711alaw/G.726/MP2L2/G.722
Protocols	IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
No. of Simultaneous Users	Up to 20 users
Dual Stream	Support
User/Host Level	Up to 32 users,3 Levels: Administrator, Operator and User
Security Measures	User authentication (ID and PW),
	Host authentication (MAC address)
	IP address filtering
General
Power Supply	24 VAC & Hi-PoE
Power Consumption	Max.32W
Working Temperature/Humidity	-30°C ~ 65°C (-22°F ~ 149°F)
Protection Level	IP66 standard (outdoor dome)
Protection Level	TVS 4,000V lightning protection, surge protection and voltage transient protection
Dimensions	Φ266.6(mm)×365.2(mm)
Weight (approx.)	4kg (8.81lbs)
Mount Option	Long-arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box;
Mount Option	Swan-neck mount: DS-1619ZJ
