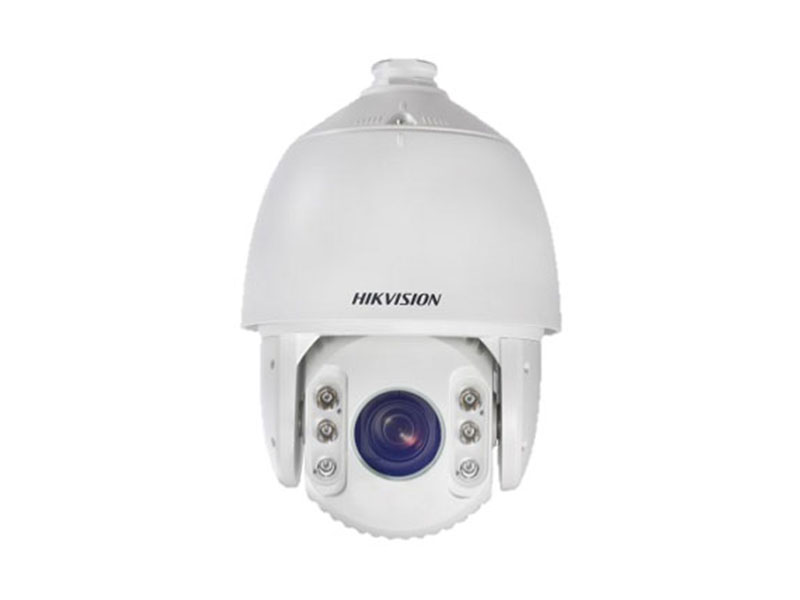

Hikvision DS 2DE7530IW AE IP HD Speed Dome Kamera

Özellikler

1/1.9" progressive scan CMOS
Up to 2592×1944 resolution
Min. illumination:
Color: 0.005 Lux @(F1.5, AGC ON)
B/W: 0.002 Lux @(F1.5, AGC ON)
0 Lux with IR
30× Optical Zoom, 16× Digital Zoom
Defog, EIS, 3D DNR, BLC, HLC, Digital WDR
IR distance up to 150 m
24 VAC & Hi-PoE
Support H.265+/H.265 video compression

Teknik Özellikler

Camera
Image Sensor	1/1.9" progressive scan CMOS
Effective Pixels	2592 × 1944
Signal System	PAL/NTSC
Minimum Illumination	Color: 0.005 Lux @(F1.5, AGC ON)
	B/W: 0.002 Lux @(F1.5, AGC ON)
	0 Lux with IR
White Balance	Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC	Auto/Manual
BLC	ON/OFF
HLC	Support
Smart defog	Support
WDR	DWDR
Shutter Time	50Hz: 1/1 s to 1/30,000 s
Shutter Time	60Hz: 1/1 s to 1/30,000 s
Day& Night	ICR
Digital Zoom	16×
Privacy Masking	8 privacy masks programmable
Auto Focus	Auto / Semi-automatic / Manual
Lens
Focal Length	5.9 mm to 177 mm, 30× Optical Zoom
Zoom Speed	Approx. 4.8 s (Optical Lens, Wide-Tele)
Angle of View	51.3° to 2.7° (Wide-Tele)
Minimum Working Distance	10 mm to 1500 mm (Wide-Tele)
Aperture Range	F1.5 to F3.4
Pan & Tilt
Pan Speed	Configurable, from 0.1°/s to 160°/s, Preset Speed: 240°/s
Tilt Range	-15°-90° (Auto Flip )
Tilt Speed	Configurable, from 0.1°/s to 120°/s, Preset Speed: 200°/s
Proportional Zoom	Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset	300
Patrol	8 patrols, up to 32 presets for each patrol
Pattern	4 pattern scans, record time over 10 minutes for each scan
Power-off Memory	Support
Park Action	Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
PTZ Position Display	ON/OFF
Infrared
IR irradiation distance	150m
IR irradiation angle	Adjustable by zoom
Alarm
Alarm Input	2
Alarm Output	1
Input & Output
Audio Input	1-ch audio input
Audio Output	1 channel audio output, linear level
Network
Ethernet	10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution	2592 × 1944
Main Stream	50Hz: 25fps (2592 × 1944, 2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720)
	50fps (1920 × 1080, 1280 × 960, 1280 × 720)
	60Hz: 30fps (2592 × 1944, 2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720)
	60fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream	50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240)
Third Stream	50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480, 320 × 288)
Third Stream	60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480, 320 × 240)
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264
	Sub-Stream: H.265/H.264/MJPEG
	Third Stream: H.265/H.264/MJPEG
ROI encoding	Support 4 areas with adjustable levels
Audio Compression	G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Protocols	IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
No. of Simultaneous Users	Up to 20 users
Three-Stream	Support
Mini SD Card	Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
Hik-Connect	Support
General
Power Supply	24 VAC & Hi-PoE
Power Consumption	Max.: 40 W
Power Consumption	IR: 19 W
Working Temperature/Humidity	Outdoor: -30°C to 65°C (-22°F to 149°F)
Working Temperature/Humidity	≤ 90%
Protection Level	TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimensions	Φ 220 mm × 353.4 mm (Φ 8.66" × 13.91")
Weight (approx.)	Approx. 4.5 kg (9.92 lb)
