Açıklama

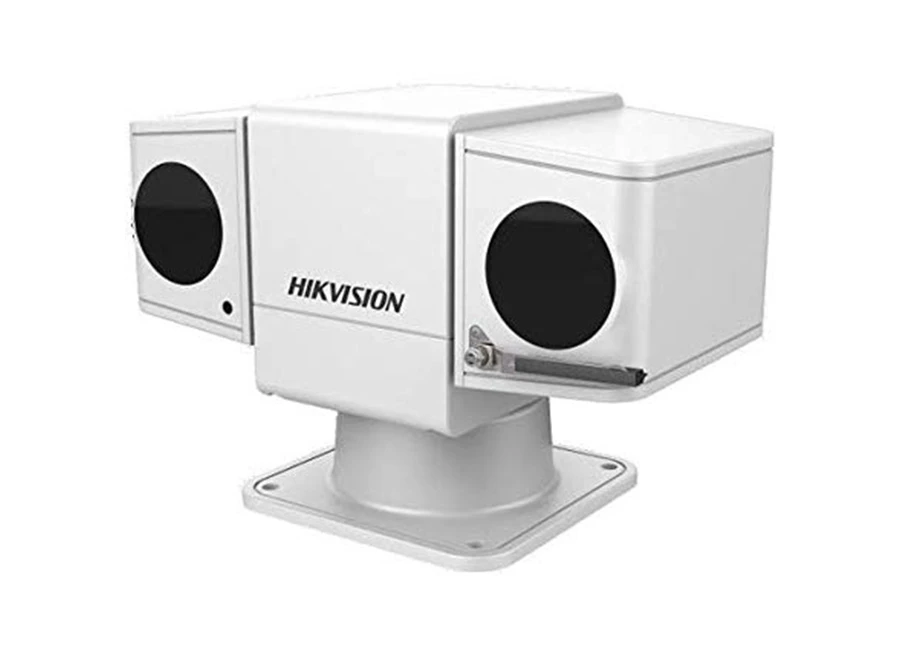

Hikvision DS 2DY5223IW AE IR IP PTZ Kamera
Özellikler
- 2MP, 1920 x 1080
- 23X optical zoom, 16X digital zoom
- Ultra-low illumination (0.002Lux/F1.5(color),
- 0.0002Lux/F1.5(black), 0 Lux with IR)
- Low bit rate, true WDR, Defog, Smart IR
- 3D intelligent positioning
- Power-off memory, proportional zoom
- Analog/Network dual output
- Support Wiper
- Up to 150m IR distance
- Support Hi-PoE
Teknik Özellikler
| Camera | |
| Effective Pixels | 1920(H)x1080(V) |
| İşaret Sistemi | PAL/NTSC |
| Minimum Aydınlatma | Color： 0.002Lux @ (F1.5, AGC ON) |
| B/W： 0.0002Lux @(F1.5, AGC ON) | |
| White Balance | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
| AGC | Auto/Manual |
| BLC | ON/OFF |
| HLC | Support |
| Buğu Giderme | Support |
| WDR | 120dB |
| Objektif Zamanı | 1/1-1/10,000s |
| Gündüz ve Gece | ICR |
| Dijital Yakınlaştırma | 16X |
| Otomatik Odak | Auto / Semi-automatic / Manual |
| Lens | |
| Odaksal Uzunluk | 5.9-135.7mm, 23x |
| Field of View | 59.8-3.0 degree (Wide-Tele) |
| Minimum Çalışma Mesafesi | 10-1500mm(Wide-Tele) |
| Aralık Açıklık | F1.5~F3.4 |
| Pan & Tilt | |
| Pan Range | 360°endless |
| Pan Hızı | 0.1° -200° /s |
| Tilt Range | +90°～-90 |
| Tilt Hızı | 0.1° -50° /s |
| Proportional Zoom | Rotation speed can be adjusted automatically according to zoom multiples |
| Number of Preset | 300 |
| Devriye | 8 patrols, up to 32 presets per patrol |
| Otomatik Tur | 4 patterns, with the recording time not less than 10 minutes per pattern |
| Power-off Memory | Support |
| Park Action | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan |
| PTZ Pozisyonlama Gösterimi | ON/OFF |
| Wiper | Support |
| Infrared | |
| IR Distance | 150m |
| IR Işınlama Açısı | Adjustable by zoom |
| Alarm | |
| Alarm Girişi | 7 Inputs |
| Alarm Çıkışı | 2 |
| Input & Output | |
| Monitor Output | 1.0Vp-p / 75Ω, NTSC (or PAL) composite, BNC |
| Network | |
| Ethernet | 10Base -T, /100Base-TX, RJ45 Connector |
| Max.Image Resolution | 1920×1080 |
| Sub Stream | 50Hz: 25fps(704×576), 25fps (352×288), 25fps (176×144) |
| 60Hz: 30fps(704×480), 30fps (352×240), 30fps (176×120) | |
Main Stream | 50Hz: 25fps(1920×1080), 25fps(1280×960), 25fps (1280×720) |
| 60Hz: 30fps(1920×1080), 30fps(1280×960), 30fps (1280×720) | |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 |
| Sub-Stream: H.265/H.264/MJPEG | |
| Third Stream: H.265/H.264/MJPEG | |
| ROI encoding | Support 12 areas with adjustable levels |
| Ses Sıkıştırma | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
| Simultaneous Live View | Up to 20 channels |
| Storage: | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR |
| User/Host | Up to 32 users, 3 levels: Administrator, Operator and User |
| Güvenlik önlemleri | User authentication (ID and PW), |
| Host authentication (MAC address) | |
| IP address filtering | |
| Client GUI | |
| Kamera Kontrolü | Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode |
| Client | Support iVMS-4200 |
| Web Browser | IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +, support multi-language |
| General | |
| RS-485 Protocolleri | HIKVISION, Pelco-P, Pelco-D, self-adaptive |
| Language | English |
| Power Supply | 24 VAC & Hi-PoE |
| Güç Tüketim | Max.60W |
| Çalışma Sıcaklığı / Nem oranı | -40°C ~ 65°C (-40°F ~ 149°F) |
| humidity 95% or less | |
| Protection Level | IP66, IK10, TVS 6,000V lightning protection, surge protection and voltage transient protection |
| Ağırlık (yaklaşık) | 7.8kg (approx.) |
Hikvision DS 2DY5223IW AE IR IP PTZ Kamera Pdf Dosyası1.46 MB
Teknik Kısa
Çözünürlük : 2MP (1080P)
