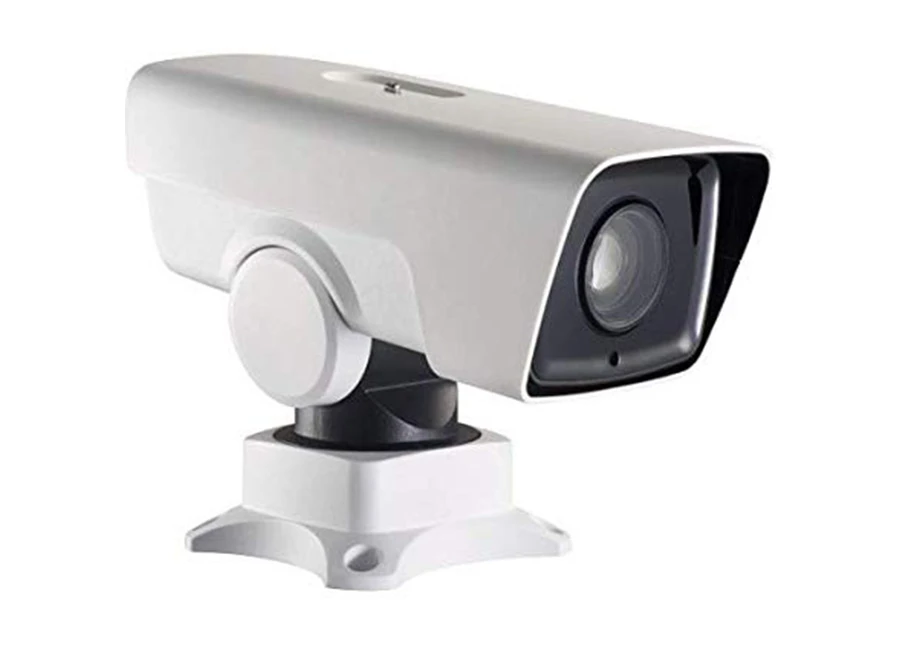

Hikvision DS 2DY3220IW DE IR IP PTZ Kamera
Özellikler
- 1/2.8" Progressive Scan CMOS
- Up to 1920 × 1080 resolution
- 20× Optical Zoom, 16× Digital Zoom
- Digital WDR, 3D DNR, HLC, Smart IR
- Up to 100 m IR distance
- 12 VDC & PoE (802.3at, class4)
- Support H.265 video compression
Teknik Özellikler
| Camera | |
| Image Sensor | 1/2.8" HD progressive scan CMOS |
| Effective Pixels | 1920(H)x1080(V) |
| İşaret Sistemi | PAL/NTSC |
| Minimum Aydınlatma | Color: 0.05 Lux @(F1.6, AGC ON) |
| B/W: 0.01 Lux @(F1.6, AGC ON) | |
| 0 Lux with IR | |
| White Balance | Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp |
| AGC | Auto/Manual |
| BLC | ON/OFF |
| HLC | Support |
| WDR | DWDR |
| Objektif Zamanı | 1/1 s to 1/30,000 s |
| Gündüz ve Gece | ICR |
| Dijital Yakınlaştırma | 16X |
| Privacy Mask | 8 programmable privacy masks |
| Otomatik Odak | Auto / Semi-automatic / Manual |
| Lens | |
| Odaksal Uzunluk | 4.7 mm to 94 mm, 20× Optical |
| Yakınlaştırma Hızı | Approx. 2.7 s (Optical Lens, Wide-Tele) |
| Field of View | 61.4° to 2.9° (Wide-Tele) |
| Minimum Çalışma Mesafesi | 10 mm to 1500mm (Wide-Tele) |
| Aralık Açıklık | F1.6 to F3.5 |
| Pan & Tilt | |
| Pan Range | 360°endless |
| Pan Hızı | Configurable, from 0.1°/s to 60°/s |
| Tilt Range | -40°~30° (Auto Flip ) |
| Tilt Hızı | Configurable, from 0.1°/s to 30°/s |
| Proportional Zoom | Rotation speed can be adjusted automatically according to zoom multiples |
| Number of Preset | 300 |
| Devriye | 8 patrols, up to 32 presets for each patrol |
| Otomatik Tur | 4 pattern scans, record time over 10 minutes for each scan |
| Power-off Memory | Support |
| Park Action | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan |
| PTZ Pozisyonlama Gösterimi | ON/OFF |
| Infrared | |
| IR Distance | 100m |
| IR Işınlama Açısı | Adjustable by zoom |
| Alarm | |
| Alarm Girişi | 1 |
| Alarm Çıkışı | 1 |
| Alarm Linkage | Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc. |
| Input & Output | |
| Ses Girişi | 1-ch audio input |
| Ses Çıkışı | 1-ch audio output |
| Network | |
| Ethernet | 10Base -T, /100Base-TX, RJ45 Connector |
| Max.Image Resolution | 1920×1080 |
| Sub Stream | 50Hz:25fps(704×576), 25fps(640×576), 25fps(320×288) |
| 60Hz:30fps(704×480), 30fps(640×480), 30fps(320×240) | |
| Main Stream | 50Hz:25fps (1920×1080,1280×960,1280×720), 50fps (1280×960,1280×720) ; |
| 60Hz:30fps(1920×1080,1280×960,1280×720), 60fps (1280×960,1280×720) | |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 |
| Sub-Stream: H.265/H.264/MJPEG | |
| Third Stream: H.265/H.264/MJPEG | |
| Third Stream | 50Hz: 25fps(1920×1080, 1280×960, 1280×720, 704×576, 352×288, 176×144) |
| 60Hz: 30fps(1920×1080, 1280×960, 1280×720, 704×480, 352×240, 176×120) | |
| ROI encoding | support two fixed areas |
| Ses Sıkıştırma | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
| Ses Modu | OFF/Audio input/Audio output |
| Üçlü Akış | Support |
| Storage | Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording |
| General | |
| Power Supply | 12 VDC & PoE |
| Güç Tüketim | Max.: 19 W |
| Çalışma Sıcaklığı / Nem oranı | Working Temperature: Outdoor: -30°C to 65°C (-22°F to 149°F) |
| Working Humidity: ≤ 95% | |
| Protection Level | IP68 Standard, TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection |
| Boyutlar | -DE: 367 mm × 122 mm × 242 mm (14.45" × 4.80" × 9.53") |
| -DE4: 255 mm × 129 mm × 195 mm (10.03" × 5.08" × 7.68") | |
| Ağırlık (yaklaşık) | Approx. 3 kg (6.61 lb) |
Hikvision DS 2DY3220IW DE IR IP PTZ Kamera Pdf Dosyası1.51 MB
Teknik Kısa
Çözünürlük : 2MP (1080P)
