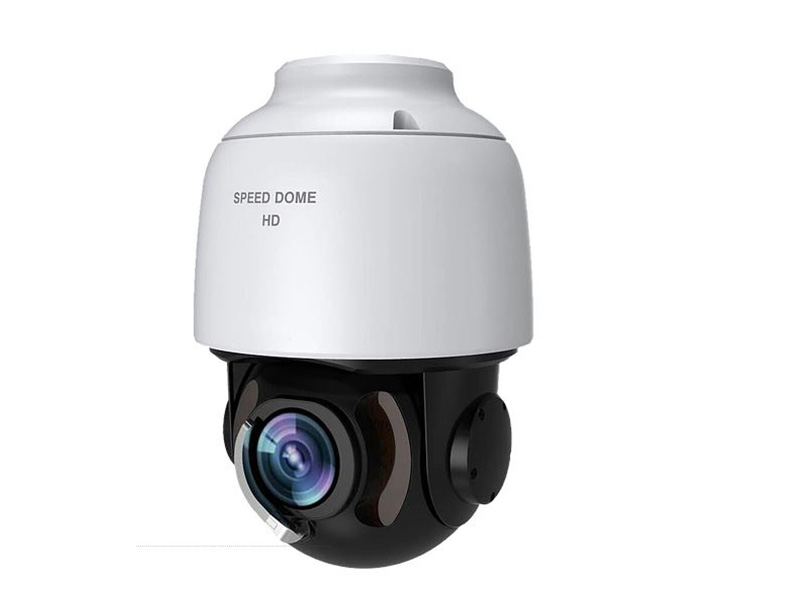

Probe PRB H3600D IP PTZ Speed Dome Kamera
Özellikler
New Special HD IP Zoom Block Camera
- It is the world's first zoom block camera with built-in defog filter, and optimized image quality through 2nd defogging by FPGA using our defog algorithm.
Weather Proof Design
- With IP67 protection, the camera ensures normal operation regardless of rain, snow or storm.
Micro-Step Technology
- Due to the Micro-step technology, on step angle is divided by 256. Accordingly, hi accuracy as well as ultra-low sound noise (>32.5dB) can be achieved. Micro-step technology enables low speed down to 0.05˚/s.
- Triple codec, Simultaneous multi steaming
- Triple H/W codec enables to transmit max 3 independent streams with different settings for different requirements. Therefore, it is possible to combine seamless remote video monitoring using H.264/H.265 with simultaneous transmission to Network Video Recorder.
Powerful zoom capability
- x36 optical zoom, excellent automatic focusing, and 5.8 ~ 210.0 mm focus range. Especially, since the aperture is F1.5~F4.8, it is possible to acquire better quality image than any other camera.
Teknik Özellikler
| CAMERA | |
| Image Device | 1/1.9" Progressive Scan CMOS |
| Effective Pixels | Approx. 2.38 Mega pixels |
| Aspect Ratio | HD : 16:9, SD : 4:4 |
| Zoom Ratio | x36 Optical Zoom / x12 Digital Zoom |
| Focal Length | f = 5.8 ~ 210.0 mm, F3.62~F5.31 |
| Color MIN. Illumination | 0.005Lux@F1.5 |
| B/W MIN. Illumination | 0.0005Lux@F1.5, 0 Lux with IR |
| Day & Night | Auto / Day / Night(ICR) |
| Focus | Auto / Semi-Auto / Manual |
| DNR(2D/3D) | 2D/3D, Level Adjustment(1~5) |
| Shutter Speed | 1sec ~ 1/10,000sec |
| AGC | Auto / Manual |
| White Balance | Auto / Indoor / Outdoor / Manual |
| WDR/BLC | OFF/BLC/WDR(Digital) |
| Other Function | Defog(Digital), HLC, Dynamic Slow Shutter |
| PAN/TİLT | |
| Pan Range | 360° (Endless) |
| Tilt Range | -15° ~ 90° (Auto-Flip) |
| Pan Speed | 240°/sec |
| Manual Speed | 0.05° ~ 180°/sec |
| Scan Speed | 1.4° ~ 150°/sec |
| Preset | 255 Presets with Labels |
| Group | 8 groups(Max. 16 presets) |
| Sound Noise | Under Max. 32.5dB |
| GENERAL | |
| Sensor In /Out | Built-in 1 Input / 1 Output(Relay) |
| Audio In / Out | 1 Audio In / 1 Audio Out |
| Video Out | BNC: VBS 1.0 Vp-p |
| IR distance | More than 350M |
| IR distance Wave | 850nm (with adaptive synchronized with zoom ratio) |
| Wiper | Support 2 |
| Power | AC24V 36W |
| Approvals | KC, IP67 |
| Housing | Weather proof / Vandal Proof Structure |
| Material | Body : Aluminum Die-casting |
| Dimension | Net: Ø211 x 350.6(H) mm |
| Weight | 5 Kg(approx.) |
| Operating Temp. | -30°C ~ 50°C |
| NETWORK | |
| Ethernet | 10Base-T/100Base-Tx |
| Video Compression | H.265/H.264 /MJPEG |
| Main Video Stream | 1080p/720p |
| Second Video Stream | D1/CIF/QCIF |
| Third Video Stream | 1080p/720p/D1/CIF/QCIF |
| Stream Type | Video/Complex(Video/Audio) Stream |
| Frame Rate | Max. 30 /25 fps for 1080P/720P/D1/CIF/QCIF |
| Bitrate | 30Kbps ~ 16Mbps. Supports CBR/VBR/FIX QP |
| Audio Compression | Two way, G.711 A-law, G.711 μ-law, 128kbps, sampling rate 8kHz |
| Local Storage | Micro SD/SDHC/SDXC card. Support up to 128GB |
| IVA | Motion Detection, Occlusion Detection |
| Line Crossing*, Region entrance/exiting*, Intrusion*, Tampering*, etc | |
| Alarm actions | Email, Micro SD/SDCH/SDXC Record, Relay Output, Snapshot, Notification of Client |
| Alarm | Pre-Post Alarm |
| Max No. of Clients | 10 users(Depending on user bandwidth) |
| Web Brower | IE 6.0 above |
| IPv4 Protocols | IPv4/IPv6*, TCP/IP, UDP, RTP, RTSP, RTMP, NTP, HTTP, HTTPS*, SSL*, |
| DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMP* | |
| DDNS Protocols | Pubblic DDNS services Suport: www.dyndns.com |
| ONVIF Protocols | PROFILE S |
| Security Protocols | User Authentication(ID/PW), IP Address/Mac Address filtering* |
Teknik Kısa
Ses :
Var
Çözünürlük :
2MP (1080P)
Irled :
Var
