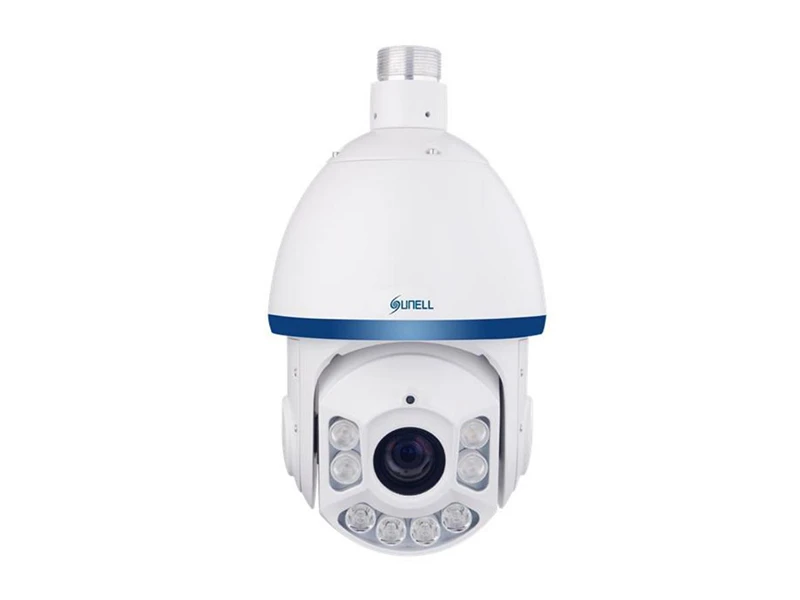

Sunell IPS56/10BDR/ZSA20 IP Speed Dome Kamera
Özellikler
Teknik Özellikler
| CAMERA | |
| Image Sensor | 1/3” Progressive Scan CMOS |
| Min. illumination | Color: 0.01Lux@(F1.2,AGC ON); B/W: 0Lux@( IR LED ON) |
| Day & Night | ICR |
| Shutter Speed | 1/10000-1/50s |
| Auto Iris | Auto/Manual |
| Wide Dynamic Range | Yes |
| Digital Noise Reduction | 2D/3D |
| Lens | Sunell 20X Module , 4.1-82mm |
| Digital Zoom | 16X |
| FOV | 58.7°-3.2° |
| IR LED | 8 pcs |
| IR Range | 100m |
| Pan/Tilt | Pan 0-360°,Tilt -10-90° |
| Pan/Tilt Speed | Pan 0.01-180°/s ,Tilt 0.01-90°/s , |
| Preset Speed Pan: 180°/s, Tilt: 90°/s; | |
| Preset/Tour/Scan/Track | 300/12/12/6 |
| IMAGE | |
| Video Compression | H.264 High/Main/Baseline Profile, MJPEG |
| Bit Rate (CBR/VBR) | Main stream:200kb-8Mkb ;Sub stream 100kb-6Mkb |
| Audio Compression | G.711 ,RAW_PCM |
| Max.Resolution | 1280x720/30fps |
| Stream | Stream1 1280x720 |
| Stream2 D1 to QVGA | |
| Image Setting | Rotate Mode,Saturation,Brightness,Contrast,Sharpness |
| HLC | Yes |
| ROI | Yes |
| Defog | Yes |
| NETWORK | |
| Network Protocols | IPv4,802.1x,HTTP,HTTPS,TCP/IP,UDP/IP,RTSP,DHCP,NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ICMP ,IGMP, Unicast and Multicast. |
| Alarm Trigger | Motion,Instrusion,LineCrossing,Tamper,Networkdisconnect,Diskalarm,I/O alarm |
| RTSP Video | Standard RFC2326, Support QuickTime / VLC Player. |
| Security | User security authentication, Reset, Hardware WatchDog |
| Web Language | English, Chinese, Polish, Italian, Portuguese, Spanish. Russian, French, Czech, Hungarian (Sunell Brand) |
| System Compatibility | Onvif |
| INTERFACE | |
| Ethernet | I1 Ethernet (10/100 Base-T) RJ-45 Connector |
| Audio I/O | 1ch Audio In,1ch Audio Out |
| Alarm I/O | 7ch Alarm In,2ch Alarm Out |
| RS485 | N/A |
| BNC Output | N/A |
| Reset Button | YES(Built-In) |
| Edge Storage | Micro SD/SDHC/SDXC slot(Built-in),Max 64GB |
| GENERAL | |
| Power Supply | AC24V/2.5A |
| Power Consumption | MAX 30W |
| OperatingTemperature | Starting Temperature: -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
| Working Temperature:-40 °C ~ 60 °C (-40 °F ~ 140 °F) | |
| Operating Humidity | 0% - 90% RH |
| Protection | IP66,TVS6000V |
| Approvals | CE / FCC |
| Product Dimensions | Φ205x332mm |
| Product Weight | 4.3KG |
Sunell IPS56 10BDR ZSA20 IP Speed Dome Kamera Pdf Dosyası394.47 KB
