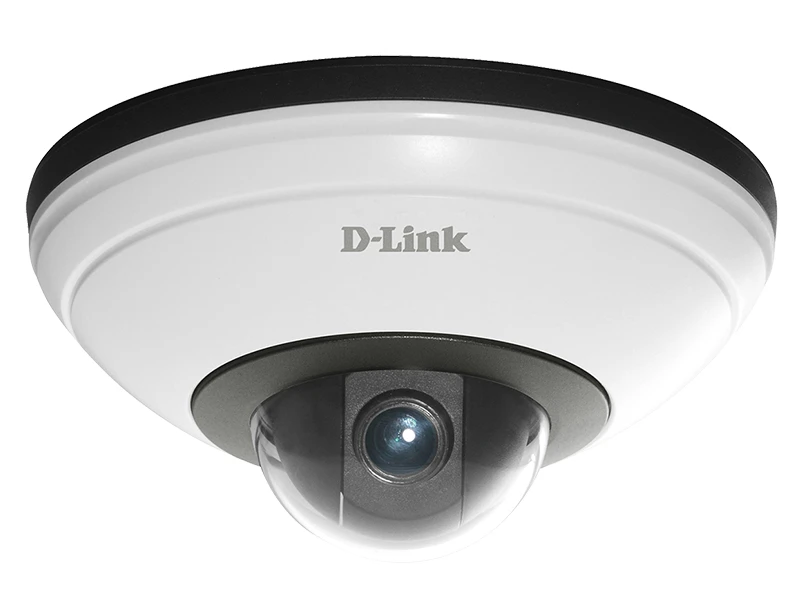

D-Link DCS 5615 A1A IP HD Speed Dome Kamera
Teknik Özellikler
| General features: |
| Hardware profile |
| 1/2.7” Full HD progressive megapixel CMOS sensor |
| Fixed lens 4mm |
| Aperture F1.5 |
| 16 x Digital Zoom |
| Minimum illumination 0.12 lux |
| Minimum Object Distance 40 cm |
| Angle of view: |
| (H) 77.4° |
| (V) 45.1° |
| (D) 88° |
| Pan & Tilt |
| Pan/Tilt range |
| Pan range: 360° (-180 to 180)° |
| Tilt range: 80° (10 to 90°) |
| Pan/Tilt speed: |
| Pan speed: 101°/second |
| Tilt speed: 101°/second |
| Image Features |
| Configurable image size, quality, and bit rate |
| Time stamp and text overlays |
| 3 configurable motion detection windows |
| 5 configurable privacy masks |
| Flip & mirror |
| Configurable white balance, shutter speed, brightness, saturation, contrast, sharpness |
| Video Compression |
| H.264/MPEG4/MJPEG simultaneous dual format compression |
| JPEG for still image |
| H.264/MPEG-4 multicast streaming |
| Video Resolution |
| 1920 x 1080 at 15 fps |
| 1600 x 904 at 20 fps |
| 1360 x 768 at 25 fps |
| 1280 x 720 at 30 fps |
| 640 x 480 at 30 fps |
| 384 x 216 at 30 fps |
| 176 x 144 at 30 fps |
| Audio Support |
| GSM-AMR |
| MPEG-4 AAC |
| External Device Interface |
| DI for external sensor and alarm |
| microSD card slot |
| 10/100 BASE-TX Ethernet port with PoE |
| 12V DC jack |
| Network Protocols |
| IPv4 |
| IPv6 |
| TCP/IP |
| UDP |
| ICMP |
| DHCP Client |
| NTP Client (D-Link) |
| DNS Client |
| DDNS Client (D-Link) |
| SMTP Client |
| FTP Client |
| HTTP/HTTPS |
| Samba Client |
| PPPoE |
| UPnP Port Forwarding |
| RTP/RTSP/RTCP |
| IP filtering |
| LLTD |
| CoS/QoS |
| SNMP |
| IGMP |
| 802.1x |
| Security |
| Administrator and user group protection |
| Password authentication |
| HTTP and RTSP digest encryption |
| HTTPS streaming |
| Remote client access control |
| System Requirements |
| Operating system: Microsoft Windows 7, Vista, XP, 2000 |
| Browser: Internet Explorer 7 or higher |
| D-ViewCam™ System Requirements for Web Interface |
| Operating System: Microsoft Windows 7, Vista, XP |
| Web Browser: Internet Explorer 7 or higher |
| Protocol: Standard TCP/IP |
| Event Management |
| Motion detection |
| Tamper detection |
| Event notification and upload snapshots/video clips via HTTP, SMTP or FTP |
| Multiple event notification |
| Multiple recording methods for easy backup |
| Supports multiple HTTP, SMTP and FTP servers |
| Remote Management |
| Take snapshots/video clips and save to local hard drive via web browser |
| Configuration accessible via web browser |
| Surveillance Software Function |
| Supports all management functions provided in web interface |
| Scheduled motion triggered, or manual recording options |
| Remote management/control of up to 32 cameras |
| Viewing of up to 32 cameras on one screen |
Fiziksel Özellikler
| Physical Parameters |
| Power |
| 12 VDC 1.5 A, 50/60 Hz, IEEE 802.3af PoE |
| Max. Power Consumption |
| 5.8 W |
| PoE (DC 48V) 5.8 W |
| Operating Temperature |
| ° to 40°C |
| Storage Temperature |
| -20° to 70°C |
| Humidity |
| 90% non-condensing |
| Storage: 5% to 95% non-condensing |
| Weight |
| 210 g |
| Certifications |
| CE (Class A) |
| CE LVD (EN60965-1) |
| FCC (Class A) |
| ICES-003 |
| C-Tick |
D-Link DCS 5615 A1A IP HD Speed Dome Kamera Pdf Dosyası346.27 KB
Teknik Kısa
Depolama : Var
Çözünürlük : 2MP (1080P)
