| Camera |
| Hardware profile camera |
| Sensor Sony Super HAD-II 1/4 "CCD |
| Resolution 650 TVL |
| Minimum illumination: 0.1 lux (color), 0.01 lux (B / W) |
| Built-in ICR-filter |
| Electronic shutter from 1 to 1/100000 seconds |
| The ratio of the "signal-to-noise"> 50 dB (automatic gain control (AGC off) |
| 12x optical zoom |
| Fixed lens with a focal length: 3.8 to 45.6 mm |
| Aperture: F1.6 to F2.7 from |
| Viewing angle: |
| of 4,49 ° to 52,8 ° (horizontal) |
| of 3,40 ° to 39,7 ° (vertical) |
| from 55,4 ° to 65,4 ° (diagonal) |
| Hardware profile PTZ |
| Rotation: 360 ° |
| Tilt: 10 ° to 170 ° |
| Manually adjust the speed from 1 ° to 80 ° per second |
| Preset points: 256 points |
| The accuracy of the Pan / Tilt: 0,225 ° |
| The speed pan / tilt: 10 ° to 400 ° per second |
| Number of independent paths when operating in Sequence: 8 |
| The number of independent paths when operating in Auto Pan: 4 |
| Number of independent paths when operating in Cruise: 8 |
| The speed of rotation is proportional to the tilt and zoom level |
| Resume after power loss |
| Functions of Home: Preset, Sequence, Auto Pan, Cruise |
| Automatic coup: the mechanical / digital / off |
| Digital Slow Shutter |
| Pause |
| Image flip |
| Image Functions |
| Setting the image size and quality, frame rate and bit rate |
| The timings and paste text |
| Customizable windows for motion detection |
| 16 customizable areas of private masks |
| Setting the white balance, shutter speed, brightness, color saturation, contrast and sharpness |
| Video Compression |
| Video compression formats H.264/MPEG-4/MJPEG |
| JPEG for still images |
| Video Resolution |
| NTSC: 720 x 480, 352 x 240, 176 x 120 at frame rates up to 30 frames / s |
| PAL: 720 x 576, 352 x 288, 176 x 144 at frame rates up to 25 frames / s |
| Sound support |
| G.726 |
| External device interfaces |
| Port 10/100 BASE-TX Ethernet |
| 8 input alarm sensors |
| 1 alarm output sensor |
| Audio In / Out |
| Video |
| Network |
| Network Protocols |
| IPv4, TCP / IP, UDP, ICMP, DHCP-Client, NTP-Client (D-Link), DNS-client, DDNS-Client (D-Link), SMTP-client, FTP-client, HTTP / HTTPS, Samba- client, PPPoE, port forwarding UPnP, RTP / RTSP / RTCP, filtering on IP-addresses, 3GPP, IGMP, ONVIFcompliance |
| Safety |
| Security administrator account and user groups |
| Password authentication |
| System control |
| System requirements for Web-based interface |
| Operating System: Microsoft Windows 7/Vista/XP/2000 |
| Browser: Internet Explorer, Firefox, Netscape, Opera |
| Event Management |
| Motion detection |
| Event notification and download stop-kadrov/videoklipov via HTTP, SMTP or FTP |
| Supports multiple HTTP, SMTP and FTP-servers |
| Multiple event notifications |
| Several ways to create backups |
| Remote management |
| Configuring via Web-browser |
| Get stop-kadrov/videoklipov and save to your local hard drive or NAS via Web-browser |
| Support for mobile devices |
| The system Windows 7/Vista/XP, Pocket PC or mobile phone with 3GPP playback support |
| System Requirements D-ViewCam ™ |
| Operating System: Microsoft Windows 7/Vista/XP |
| Web-browser: Internet Explorer 6 or higher |
| Protocol: The standard TCP / IP |
| The software features D-ViewCam ™ |
| Remote management / control of up to 32 cameras |
| View up to 32 cameras on one screen |
| Supports all management functions provided in the Web-interface |
| Schedule of events to trigger or manual recording |

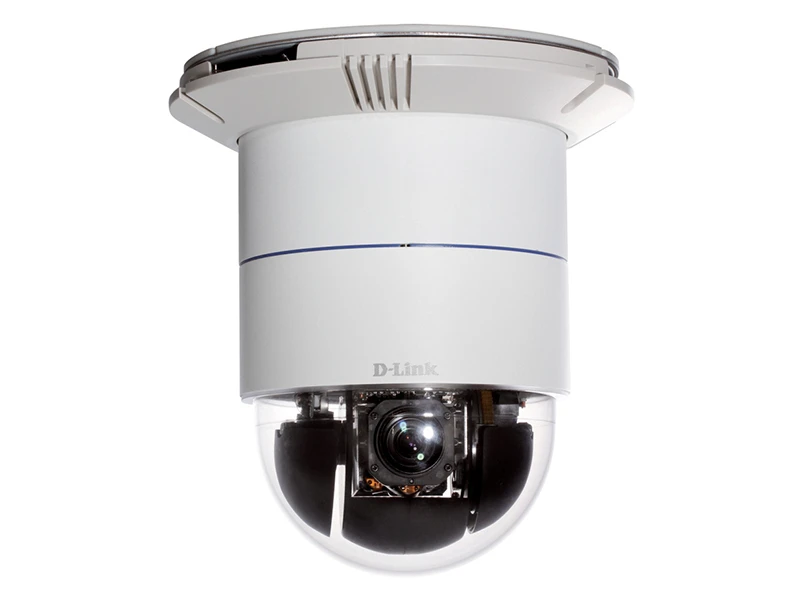

D-Link DCS 6616 A1A IP HD Speed Dome Kamera Pdf Dosyası624.44 KB
