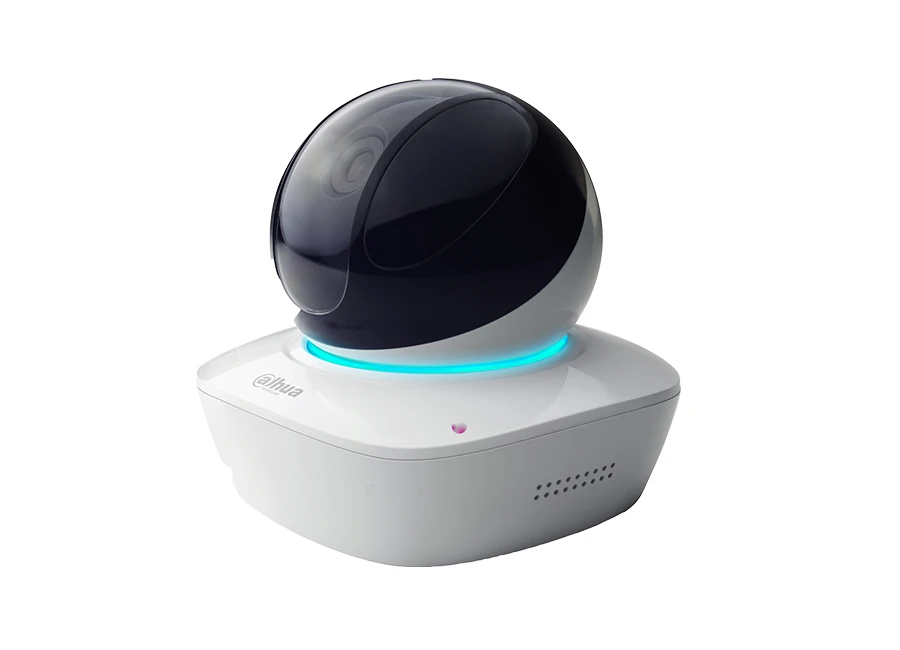

Dahua IPC A15 IP PT Kamera

Özellikler

1/3” 1.3Megapixel progressive CMOS
H.264& MJPEG dual-stream encoding
25/30fps@1.3M (1280×960)
°~355° Pan range, 90°Tilt range, 25 presets
IR Diatance 10m
Cloud Support
Wi-Fi Support
Micro SD card slot, up to 128GB
DC5V2A

Teknik Özellikler

Camera
Image Sensor	1/3” 1.3Megapixel progressive CMOS
Effective Pixels	1280(H) x960(V)
RAM/ROM	256MB/16MB
Scanning System	Progressive
Minimum Illumination	0.45Lux/F2.0(Color), 0Lux/F2.0(IR on)
S/N Ratio	More than 50dB
IR Distance	Distance up to 10m(33ft)
IR On/Off Control	Auto/ Manual
IR LEDs	2
Lens
Lens Type	Fixed
Mount Type	Board-in
Focal Length	3.6mm
Max. Aperture	F2.0
Angle of View	H:72.2°;V:52.9°
Focus Control	Fixed
Close Focus Distance	N/A
PTZ
Pan/Tilt Range	Pan:0° ~355 ° ;Tilt:0° ~90° ;Rotation:0° ~355°
Video
Compression	H.264/H.264B/H.264H/MJPEG
Streaming Capability	2 Streams
Resolution	1.3M(1280×960)/720P(1280×720)/
Resolution	VGA(640 ×480)/QVGA(320×240)
Frame Rate	1.3M(1~25/30fps)
Frame Rate	VGA/QVGA(1~25/30fps)
Bit Rate Control	CBR/VBR
Bit Rate	H264:32K ~ 10240Kbps
Day/Night	Auto(ICR) / Color / B/W
BLC Mode	BLC / HLC / DWDR
White Balance	Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control	Auto/Manual
Noise Reduction	3D DNR
Motion Detection	Off / On (4 Zone, Rectangle)
Electronic Image	Support
Smart IR	Support
Digital Zoom	16x
Flip	°/90°/180°/270°
Mirror	Off / On
Privacy Masking	Off / On (4 Area, Rectangle)
Audio
Compression	G.711A;G.711Mu;AAC
Network
Ethernet	RJ-45 (10/100Base-T)
Wi-Fi	Wi-Fi(IEEE802.11b/g/n),50m(open field)
Protocol	HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;
	DHCP;DNS;DDNS;IPv4/v6;QoS;UPnP;NTP;
	Bonjour;Multicast;ICMP;IGMP
Interoperability	PSIA, CGI
Streaming Method	Unicast / Multicast
Max. User Access	10 Users/20 Users
Edge Storage	NAS(Network Attached Storage)
	Local PC for instant recording
	Micro SD Card(up to 128GB)
Web Viewer	IE, Chrome, Firefox, Safari
Management Software	Smart PSS, DSS, Lechange
Smart Phone	iOS, Android
Certifications
Certifications	CE (EN 60950:2000)
	UL:UL60950-1
	FCC: FCC Part 15 Subpart B
Interface
Video Interface	N/A
Audio Interface	Built-in Mic & Speaker
RS485	N/A
Alarm	N/A
Electrical
Power Supply	DC5V 2A
Power Consumption	<8.2W
Environmental
Operating Conditions	-10°C ~ +45°C (14°F ~ +113°F) / Less than 95% RH
Strorage Conditions	-10°C ~ +45°C (14°F ~ +113°F) / Less than 95% RH
Ingress Protection	N/A
Vandal Resistance	N/A
Construction
Casing	Plastic
Dimensions	94.4mm x 94.4mm x 94.4mm(3.72'’ x3.72’’x3.72’’)
Net Weight	0.215Kg(0.47lb)
Gross Weight	0.575Kg(1.27lb)
