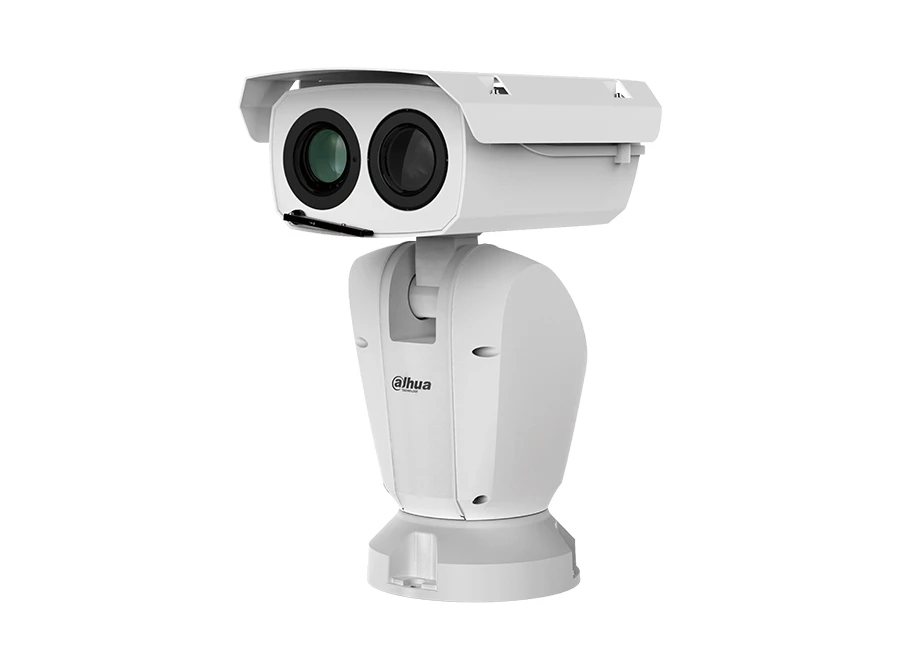

Dahua TPC PT8420A TB IP Termal Hybrid Pan&Tilt Kamera

Özellikler

400x300 VOx uncooled thermal sensor technology
Athermalized Lens(thermal), Focus-free
1/1.9” 2Megapixel progressive scan Sony CMOS
Powerful 30x optical zoom
Support temperature measurement
Support fire detection & alarm
Max 160°/s pan speed, 360° endless pan rotation
Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
7/2 alarm in/out
Micro SD memory, IP67

Teknik Özellikler

Thermal Camera
Image Sensor	Uncooled VOx Microbolometer
Effective Pixels	400(H)x300(V)
Pixel Size	17um
Thermal Sensitivity(NETD)	<40mK@f/1.0
Spectral Range	7~14um
Image Setting	Brightness/Sharpness/ROI/AGC/FFC/3D DNR
Color Palettes	14(Whitehot/Blackhot/Ironrow/Icefire/
	Fusion/Rainbow/Globow/Iconbow1/
	Iconbow2 .etc)
Thermal Lens
Lens Type	Fixed
Focus Control	Athermalized, Focus-free
Focal Length	25mm	35mm	60mm	100mm
Angle of View	H:15.5°, V:11.6°	H:10.9°, V:8.2°	H:6.5°, V:4.9°	H:3.9°, V:2.9°
Effective Distance①	D②:1000m	D:1300m	D:2000m	D:3000m
Man(1.8m*0.5m)	R③:250m	R:320m	R:510m	R:750m
	I ④ :125m	I :160m	I :260m	I :380m
Effective Distance	D:3000m	D:4000m	D:6000m	D:8800m
Vehicle(2.3m*2.3m)	R:720m	R:1000m	R: 1600m	R:2300m
	I :360m	I :500m	I : 800m	I :1200m
Visible Camera
Image Sensor	1/1.9" Sony CMOS
Effective Pixels	1944(H)x1092(V)
Electronic Shutter Speed	1/1 ~ 1/30,000s
Min. Illumination	0.001Lux@F1.5(Color), 0.0001Lux@F1.5(B/W)
S/N Ratio	More than 55dB
IR Distance	150m (492ft)
IR On/Off Control	Auto / Manual
IR LEDs	9
Visible Lens
Focal Length	6 ~ 180mm
Max Aperture	F1.5 ~ F4.3
Angle of View	H: 59° ~ 2.4°
Optical Zoom	30x
Focus Control	Auto / Manual
Close Focus Distance	100mm~ 1000mm (0.33ft~3.28ft)
PTZ
Pan/Tilt Range	Pan: 0° ~ 360° endless;Tilt: -90° ~ 40°
Manual Control Speed	Pan: 0.1° ~160° /s; Tilt: 0.1° ~60° /s
Preset Speed	Pan: 0.1° ~160° /s ;Tilt: 0.1° ~60° /s
Preset	300
PTZ Mode	5 Auto Scan, 8 Tour, 5 Pattern, Auto Pan
Speed Setup	Human-oriented focal length / speed adaptation
Power Up Action	Auto restore to previous PTZ and lens status
	after power failure
Idle Motion	Activate Preset / Scan / Tour / Pattern if there is no command in the specified period
Protocol	DH-SD, Pelco-P/D (Auto recognition)
Video
Compression	H.264 / MJPEG
Frame Rate	Main Stream:
	Thermal: 1280x1024(default) / 720P @1~25/30fps
	Visible: 1080P(default) /720P @1~25/30fps
	Sub Stream:
	Thermal: 640x512(default) / 320x256 @1~25/30fps
	Visible: CIF(default) / D1 @1~25/30fps
Bit Rate Control	CBR / VBR
Bit Rate	H.264: 640 ~8192Kbps
Day/Night	Auto(ICR) / Color / B/W
BLC Mode	BLC / HLC / WDR
White Balance	Auto / ATW / Indoor / Outdoor / Manual
Noise Reduction	3D DNR
Motion Detetion	Off / On (4 zone, Rectangle)
Region of Interest	Off / On (4 zone)
Electronic Image Stabilization (EIS)	NA
Defog	Off / On
Digital Zoom	4x(19 levels)
Flip	180°
Mirror	Off / On
Privacy Masking	Off / On (4 area, Rectangle)
Temperature Measurement
Measurement Range	Low Temperature: -20°C ~+150°C
	High Temperature: 0°C ~+550°C
Measurement Accuracy	Max (±2°C, ±2%)/Operating Temperature(-10°C~50°C)
Measurement Mode	Spot / Line / Area
Measurement Preset	Spot: 12
	Line: 12
	Area: 12
	Support 12 rules per preset simultaneously
Audio
Compression	G.711A / G.711Mu / AAC
Intelligence
IVS	Tripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent Functions	Fire detection & alarm
Tracking Trigger Mode	NA
Tracking Trigger Event	NA
Network
Ethernet	RJ-45 (10/100Base-T)
Protocol	IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, ONVIF
Interoperability	ONVIF Profile S&G, PSIA, CGI
Streaming Method	Unicast / Multicast
Max. User Access	10 Users / 20 Users
Edge Storage	Micro SD (256GB)
	Memory status display (Normal / Error / Active / Formatting / Lock),
	NAS (Network Attached Storage), Local PC for instant recording
Web Viewer
Management Software	Smart PSS, DSS
Smart Phone	Android, Ios
Certifications
Certification	CE (EN 60950:2000) FCC (FCC Part 15 SubpartB )
Interface
Video Interface	1.0Vp-p/75Ω, PAL / NTSC (HDCVI Optional)
Audio Interface	Input/Output 1 Input / 1 Output
RS485	Support
Alarm	7/2 In/Out
Electrical
Power Supply	AC 24V/5A±15%
Power Consumption	30W, Max. 70W (Heater, LEDs on)
Environmental
Operating Condition	-40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
	* Start up should be done at above -40°C (-40°F)
Strorage Conditions	-40°C ~ +70°C (-40°F ~ +158°F) / Less than 95% RH
Ingress Protection	IP67
Construction
Casing	Metal
Dimensions	345mm x 252mm x 470mm (13.58" x 9.92" x 18.50")
Net Weight	13Kg (28.66lb)
Gross Weight	35Kg (77.16lb)
