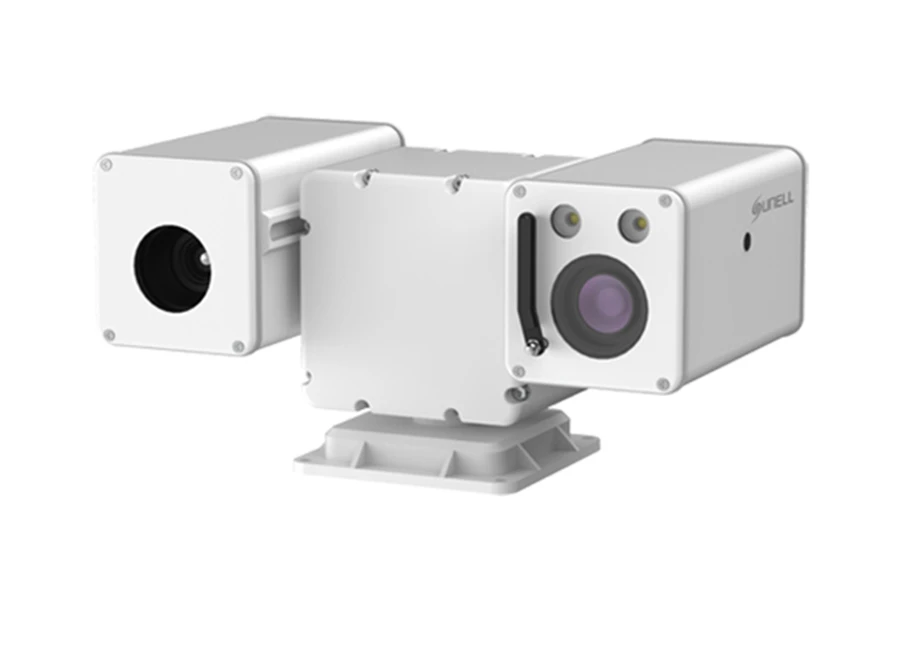

Sunell SN TPT4231QF/M(III) IP PTZ Termal Kamera
Özellikler
Teknik Özellikler
| Thermal Camera | ||
| Detector Type | Uncooled IRFPA Microbolometer | |
| Effective Pixels | 400(H) ×300(V) | |
| Pixel Size | 17um | |
| Thermal Sensitivity (NETD) | 40mK @F1.0, 300K | |
| Spectral Range | 8~14um | |
| Image Setting | Polarity LUT/ DVE/ Mirror/ FCC/ /3D DNR Brightness/Contrast/ ROI | |
| Color Palettes | Black-Heat /White-Heat/Rainbow/Iron-Red up to 17 modes | |
| Thermal Lens | ||
| Lens Type | Fixed | |
| Focus Control | Motorized Focus | |
| Focal Length | 8mm | 25mm |
| F No. | F1.0 | F1.0 |
| Angle of View | H: 46° | H:15.4° |
| V:35.3° | V:11.6° | |
| Detection Distance Fire(1m*1m) | 235m | 735m |
| Detection Distance Man(1.8m*0.5m) | 235m | 735m |
| Detection Distance Vehicle(4m*1.5m) | 722m | 2255m |
| Recognition Distance Fire(1m*1m) | 78m | 245m |
| Recognition Distance Man(1.8m*0.5m) | 59m | 184m |
| Recognition Distance Vehicle(4m*1.5m) | 180m | 564m |
| Visible Camera | ||
| Image Sensor | 1/2.8" Sony CMOS | |
| Effective Resolution | 2048 (H)×1536(V) | |
| Shutter Speed | 1/5 ~ 1/20,000s | |
| Min. Illumination | Color: 0.01Lux @(F1.2, AGC ON), | |
| B/W: 0.1Lux | ||
| S/N Ratio | More than 55dB | |
| Visible Lens | ||
| Focal Length | 4.5 ~ 135mm | |
| Max Aperture | F1.6~F4.4 | |
| Angle of View | H:59.8°~2.3° | |
| Optical Zoom | 30x | |
| Focus Control | Auto / Manual | |
| Close Focus Distance | 100mm~ 1500mm (0.33ft~3.28ft) | |
| PTZ | ||
| Pan/Tilt Range | Pan: ° ~ 360° endless; Tilt: +90° ~ -90° | |
| Pan/Tilt Speed | Pan: 0.01° ~30° /s; Tilt: 0.01° ~10° /s | |
| Preset Speed | Pan: 0.01° ~30° /s; Tilt: 0.01° ~10° /s | |
| Presets | 400 | |
| PTZ Mode | 8 Auto Scan, 12 Tour, 6 Track | |
| Speed Setup | Auto/Manual (0-8), | |
| Power Off Memory | Support | |
| Idle Motion | Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period | |
| Protocol | SN-SD, Pelco-D | |
| Video and Audio | ||
| Compression | H.265, H.264, MJPEG | |
| Frame Rate | Main Stream: | |
| Thermal: D1 @25/30fps | ||
| Visible: 2048×1536 @25/30fps | ||
| Sub Stream: | ||
| Thermal: CIF @25/30fps | ||
| Visible: D1/VGA/640×360/CIF/QCIF/QVGA @25/30fps | ||
| Bit Rate Control | CBR/VBR | |
| Bit Rate | Thermal: 100Kbps~6Mbps | |
| Visible: | ||
| main stream: 500Kbps~12Mbps; | ||
| sub stream: 100Kbps~6Kbps | ||
| Region of Interest | Off / On (8 Zone, Rectangle) | |
| Electronic Image Stabilization(EIS) | N/A | |
| Digital Zoom | 16x | |
| Mirror | Support | |
| Defog | Support | |
| Motion Detection | Support | |
| Privacy Masking | Off / On (4 Area, Rectangle) | |
| DVE Image Enhance | Support | |
| Audio Compression | G.711, AMR, RAW_PCM (Optional) | |
| Intelligence | ||
| Intelligent Functions | Motion detection, Disk alarm, I/O alarm, Temperature alarm | |
| IVS | Perimeter, Single Virtual Fences, Double Virtual Fences, Object Left, Object Removed | |
| Temperature Detection | ||
| Detection Mode | Spot, Line, Area | |
| Detection Preset | Spot: 20, Line: 2, Area: 16 | |
| Temperature Alarm | Over temperature alarm, Temperature difference alarm | |
| Accuracy | ±2℃ / ±2% | |
| Response Time | ≤30ms | |
| Effective temperature working environment | -30°C~60°C(-22°F~140°F) | |
| Theory of temperature measurement range | -40°C~150°C(-40°F~302°F) | |
| Temperature display mode | Temperature target ＞5℃, Display absolute temperature value, | |
| Temperature target ≤5℃, Display relative temperature value (temperature difference DEV = highest value - average) | ||
| Network | ||
| Ethernet | RJ-45 (10/100Base-T) | |
| Protocols: | IPv4/IPv6 ,HTTP,RTSP/RTP/RTCP, TCP/UDP, DHCP, DNS, PPPOE, SMTP, SIP ,802.1x | |
| Interoperability | ONVIF, CGI | |
| Streaming Method | Unicast | |
| Max. User Access | 10 Users | |
| Edge Storage | NAS | |
| Local PC for instant recording | ||
| Micro SD card 128GB | ||
| Web Viewer | <IE11, Chrome, Firefox | |
| Web Language | English, Chinese, Polish, Italian, Portuguese, Spanish. Russian, French, Czech, Hungarian | |
| Interface | ||
| Ethernet | 1 Ethernet (10/100 Base-T) RJ-45 Connector | |
| Audio | N/A | |
| Alarm | 1ch Alarm Out | |
| RS485 | Support | |
| BNC Output | Support | |
| Reset Button | Support(Built-in) | |
| General | ||
| Power Supply | DC24V | |
| Power Consumption | Max 40W | |
| Operating Temperature | -30°C~60°C(-22°F~140°F) | |
| Storage Conditions | 0~ 90% RH | |
| Certifications | CE /FCC | |
| Ingress Protection | IP66 | |
| Casing | Metal | |
| Dimensions | 322×192×163mm | |
| Net Weight | 5Kg | |
| Ordering Information | ||
| Type Part | Number | Description |
| SN-TPT4231QF/M(III) | SN-TPT4231QF/M8/Z30(III) | Thermal:400×300 8mm motorized lens
|
| SN-TPT4231QF/M25/Z30(III) | Thermal:400×300 25mm motorized lens
| |
