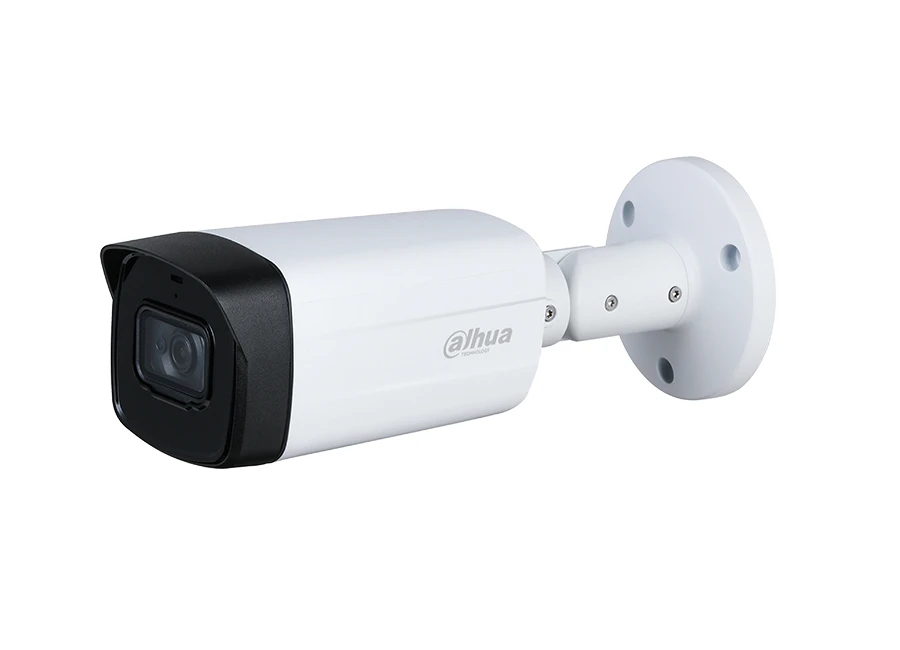

Dahua HAC HFW1400TH I8 HDCVI IR Bullet Kamera
Özellikler
Teknik Özellikler
| Camera | |||||
| Image Sensor | 1/2.7 inch CMOS | ||||
| Effective Pixels | 2560 (H) × 1440 (V), 4MP | ||||
| Electronic Shutter Speed | PAL:1/25s–1/100000s | ||||
| NTSC:1/30s–1/100000s | |||||
| Minimum Illumination | 0.03Lux/F1.9, 30IRE, 0Lux IR on | ||||
| IR Distance | Distance up to 80 m (262.46 ft) | ||||
| IR On/Off Control | Auto; manual | ||||
| IR LEDs Number | 2 | ||||
| Pan/Tilt/Rotation Range | Pan: 0°–360° | ||||
| Tilt: 0°–180° | |||||
| Rotation: 0°–360° | |||||
| Lens | |||||
| Lens Type | Fixed-focal | ||||
| Mount Type | M12 | ||||
| Focal Length | 3.6 mm; 6 mm; 8 mm | ||||
| Max. Aperture | F2.0/F2.0/F1.9 | ||||
| Angle of View | 3.6 mm: 89.5° × 76.4° × 41.6° | ||||
| (diagonal × horizontal × vertical) | |||||
| 6 mm: 55.5° × 48.6° × 27.9° | |||||
| (diagonal × horizontal × vertical) | |||||
| 8 mm: 41.9° × 36.3° × 20.3° | |||||
| (diagonal × horizontal × vertical) | |||||
| Iris Type | Fixed iris | ||||
| Min Photographic Distance | 1.4 m/2.5 m/4.5 m (4.59 ft/8.20 ft/14.76 ft) | ||||
| DORI Distance | Lens | Detect | Observe | Recognize | Identify |
| 3.6 mm | 80.0 m (262.46 ft) | 32.0 m (68.89 ft) | 16.0 m (52.49 ft) | 8.0 m(26.24 ft) | |
| 6 mm | 120.0 m (393.70 ft) | 48.0 m (104.98 ft) | 24.0 m (78.74 ft) | 12.0 m (39.37 ft) | |
| 8 mm | 160.0 m (590.55 ft) | 64.0 m (209.97 ft) | 32.0 m (68.89 ft) | 16.0 m(52.49 ft) | |
| Video | |||||
| Video Frame Rate | CVI: 4M@25fps/30fps; 1080P@25fps/30fps; | ||||
| AHD: 4M@25fps/30fps; | |||||
| TVI: 4M@25fps/30fps; | |||||
| CVBS: 960H | |||||
| Resolution | 4MP (2560 × 1440); 1080P (1920 × 1080); 960H (960 × 576/960 × 480) | ||||
| Day/Night | Auto switch by ICR | ||||
| BLC | BLC/HLC/DWDR | ||||
| WDR | DWDR | ||||
| White Balance | Auto; manual | ||||
| Gain Control | Auto; manual | ||||
| Noise Reduction | 2D NR | ||||
| Smart IR | Yes | ||||
| Electronic Defog | Yes | ||||
| Mirror | Off/On | ||||
| Privacy Masking | Off/On (8 area, rectangle) | ||||
| Certifications | |||||
| Certifications | CE (EN55032, EN55024, EN50130-4) | ||||
| FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) | |||||
| UL (UL60950-1+CAN/CSA C22.2 No.60950-1) | |||||
| Port | |||||
| Video Port | Video output choices of CVI/TVI/AHD/CVBS by one BNC port | ||||
| Power | |||||
| Power Supply | 12V±30% DC | ||||
| Power Consumption | Max 5.1W (12V DC, IR on) | ||||
| Environment | |||||
| Operating Temperature | -40°C to +60°C (-40°F to +140°F); | ||||
| <95% (non-condensation) | |||||
| Storage Temperature | -40°C to +60°C (-40°F to +140°F); | ||||
| <95% (non-condensation) | |||||
| Protection Grade | IP67 | ||||
| Structure | |||||
| Casing | Metal front face + plastic main body + metal bracket | ||||
| Dimensions | 240.7 mm × 90.7 mm × 90.4 mm (9.48" × 3.57" × 3.56") | ||||
| Net Weight | 410 g (0.90 lb) | ||||
| Gross Weight | 616 g (1.36 lb) | ||||
Dahua HAC HFW1400TH I8 HDCVI IR Bullet Kamera Pdf Dosyası743.5 KB
