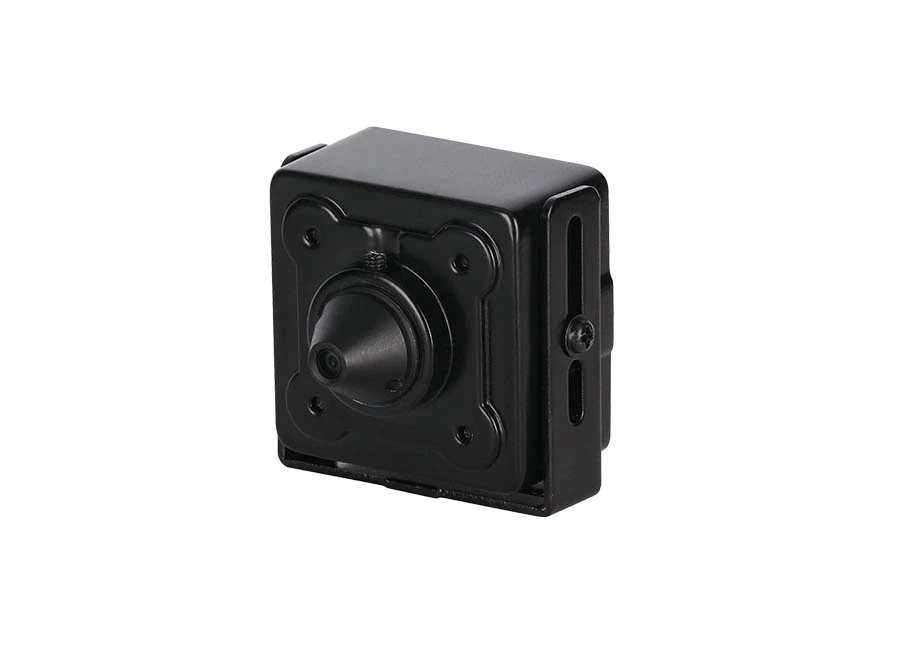

Dahua HAC HUM3201B P HDCVI Pinhole Kamera

Name: Dahua HAC HUM3201B P HDCVI Pinhole Kamera
Brand: Dahua
SKU: Dahua HAC HUM3201B P HDCVI Pinhole Kamera

Fiyat teklifi alın

Dahua HAC HUM3201B P, 2MP, Starlight, WDR, Audio, Sabit Lens, 3DNR, HDCVI Pinhole Kamera

TOPTAN ALIM VE PROJE İNDİRİMİ İÇİN LÜTFEN TEKLİF ALIN

Soru sorun

Açıklama
DESTEK

Dahua HAC HUM3201B P HDCVI Pinhole Kamera

Özellikler
Teknik Özellikler

Özellikler

Starlight, 120dB true WDR, 3DNR
Max 30fp@1080P
HD and SD output switchable
2.8mm fixed lens
Audio in interface
DC12V

Teknik Özellikler

Camera
Image Sensor	1/2.8 inch CMOS
Effective Pixels	1920 (H) × 1080 (V), 2MP
Scanning System	Progressive
Electronic Shutter Speed	PAL: 1/3s–1/100000s
Electronic Shutter Speed	NTSC: 1/4s–1/100000s
S/N Ratio	>65 dB
Minimum Illumination	Color: 0.004LuxLux/F2.4
Minimum Illumination	Black & White: 0.0004LuxLux/F2.4
Lens
Lens Type	Fixed-focal
Mount Type	M12
Focal Length	2.8 mm
Max. Aperture	F2.4
Angle of View	117.9° × 103° × 59° (diagonal x horizontal x vertical)
Iris Type	Fixed iris
Close Focus Distance	0.5 m (1.6 ft)
DORI Distance	D: 42.1 m (138.1ft); O: 16.8 m (55.1 ft); R: 8.4 m (27.6 ft); I: 4.2 m (13.8 ft)
Video
Frame Rate	CVI:
	PAL: 1080P@25fps, 720P@25/50fps
	NTSC: 1080P@30fps, 720P@30/60fps
	AHD: PAL: 1080P@25fps, 720P@25fps
	NTSC: 1080P@30fps, 720P@30fps
	TVI: PAL: 1080P@25fps, 720P@25ps
	NTSC: 1080P@30fps, 720P@30ps
	CVBS: PAL: 960 × 576H
	NTSC: 960 × 480H
Resolution	1080P (1920 × 1080); 720P (1280 × 720); 960H (704 × 576/704 × 480)
Day/Night	Auto switch by ICR
BLC	BLC/HLC/WDR
WDR	120 dB
White Balance	Auto; manual
Gain Control	Auto; manual
Noise Reduction	3D NR
Smart IR	Yes
Electronic Defog	Yes
Digital Zoom	4 ×
Mirror	Off/On
Privacy Masking	Off/On
Certifications
Certifications	CE (EN55032, EN55024, EN50130-4,EN60950-1)
	FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
	UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Port
Video Output	Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio Input	One channel, RCA sound pick-up port
Power
Power Supply	12V ±30% DC
Power Consumption	Max 2.11W
Environmental
Operating Temperature	-30°C to +60°C (-22°F to 140°F);<95% (non-condensation)
Storage Temperature	-30°C to +60°C (-22°F to 140°F);<95% (non-condensation)
Protection Grade	NA
Construction
Casing	Metal throughout the whole casing
Camera Dimensions	43.5 mm × 36.2 mm × 29.5 mm (1.71" × 1.43" × 1.16")
Net Weight	0.04 kg (0.09 lb)
Gross Weight	0.14 kg (0.31 lb)

Dahua HAC HUM3201B P HDCVI Pinhole Kamera Pdf Dosyası417.5 KB

Ürünlere ait yazılım ve dokümanlar için Destek sayfamıza göz atabilirsiniz.

İlgili marka dizini altında dosyalara ulaşabilirsiniz.

Destek İndir
