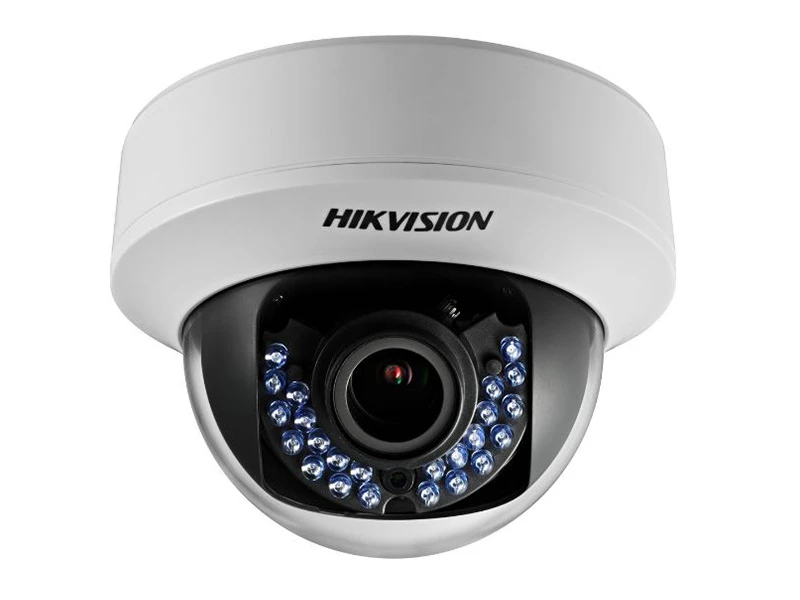

Hikvision DS 2CE56D0T VFIRE AHD Dome Kamera
Özellikler
- 2 MP high performance CMOS
- 1920 × 1080 resolution
- 2.8 mm to 12 mm vari-focal lens
- Ture Day/Night
- Up to 30 m IR distance
- PoC.af
- Up the coax (HIKVISION-C)
Teknik Özellikler
| Camera | |
| Image Sensor | 2.0 megapixel progressive scan CMOS |
| Signal System | PAL/NTSC |
| Effective Pixels | 1920 (H) × 1080 (V) |
| Min. Illumination | 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | 1/25(1/30) s to 1/50,000 s |
| Lens | 2.8 mm to 12 mm |
| Lens Mount | φ14 |
| Adjustment Range | Pan: 0° to 340°, Tilt: 0° to 75°, Rotation: 0° to 355° |
| Day& Night | IR cut filter |
| Video Frame Rate | 1080p@25fps/1080p@30fps |
| HD Video Output | 1 Analog HD output |
| Synchronization | Internal Synchronization |
| S/N Ratio | More than 62 dB |
| Up the Coax | Support |
| Lens | |
| Horizontal Field of View | 105.2 ° to 32.8 ° |
| General | |
| Operating Conditions | -40 °C - 60 °C (-40 °F - 140 °F) |
| Humidity 90% or less (non-condensing) | |
| Power Supply | 12 VDC±15%, POC |
| Power Consumption | Max. 4 W |
| IR Range | Up to 30m |
| Dimension | Ø 136 mm × 102 mm (Ø 5.35" × 4.02") |
| Weight | 600g |
Hikvision DS 2CE56D0T VFIRE AHD Dome Kamera Pdf Dosyası795.18 KB
Hikvision DS 2CE56D0T VFIRE AHD Dome Kamera Kullanıcı Kılavuzu (ing) Pdf Dosyası2.19 MB
Teknik Kısa
Çözünürlük : 2MP (1080P)
