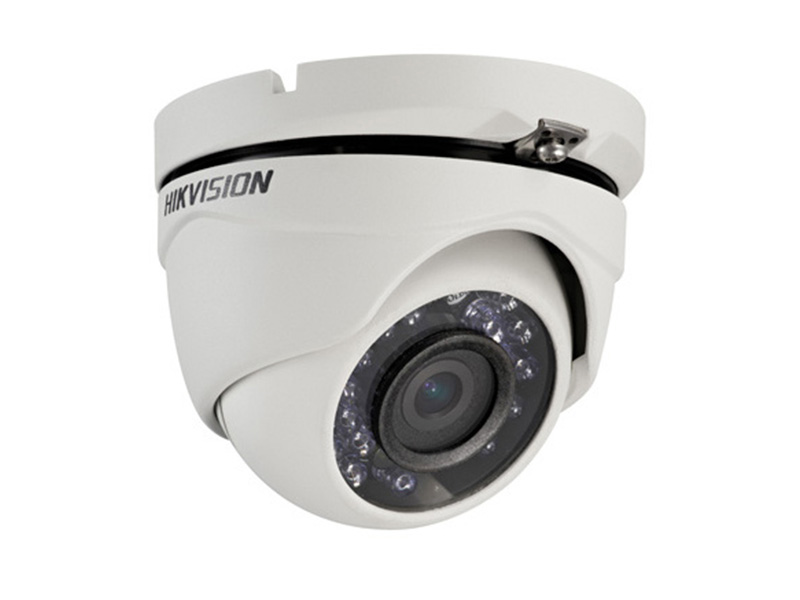

Hikvision DS 2CE56D1T IRM AHD Dome Kamera
Özellikler
- 2 Megapixel high-performance CMOS
- Analog HD output, up to 1080P resolution
- True Day/Night, Smart IR
- Up to 20m IR distance
- IP66 weatherproof
- OSD menu
- Up the Coax(HIKVISION-C Protocol)
Teknik Özellikler
| Camera | |
| Image Sensor | 2MP CMOS Image Sensor |
| Signal System | PAL/NTSC |
| Effective Pixels | 1930(H) × 1088(V) |
| Min. Illumination | 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR |
| Shutter Time | 1/25(1/30) s to 1/50,000 s |
| Lens | 3.6mm, 6mm optional, Angle of View: 91.3°(3.6mm), 59.9°(6mm) |
| Lens Mount | M12 |
| Adjustment Range | Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360° |
| Day& Night | IR cut filter with auto switch |
| Video Frame Rate | 1080p@25fps/1080p@30fps |
| HD Video Output | 1 Analog HD output |
| Synchronization | Internal Synchronization |
| S/N Ratio | More than 62 dB |
| Up the Coax | Support |
| Menu | |
| Camera ID | On/Off (0-255) |
| D/N Mode | Color/ BW/ Auto/ EXT |
| Auto White Balance | Auto/User/Push/8000K/6000K/4200K/3000K |
| Private Mask | On/Off, maximum 8 zones |
| Motion Detection | On/Off, maximum 4 zones |
| BLC | On/Off |
| AGC | Support |
| Anti-flicker | On/ Off |
| Language | English/Chinese |
| Function | Digital noise reduction, Mirror |
| General | |
| Operating Conditions | -40 °C - 60 °C (-40 °F - 140 °F) |
| Humidity 90% or less (non-condensing) | |
| Power Supply | 12 VDC±15% |
| Power Consumption | Max. 4W |
| Weather Proof | IP66 |
| IR Range | Up to 20m |
| Communication | Up the coax |
| Protocol: HIKVISION-C(Coaxitron) | |
| Dimension | 89.6 × 59.1 mm (3.53” × 2.33”) |
| Weight | 340 g |
Hikvision DS 2CE56D1T IRM AHD Dome Kamera Pdf Dosyası662.48 KB
Teknik Kısa
Çözünürlük : 2MP (1080P)
