Açıklama

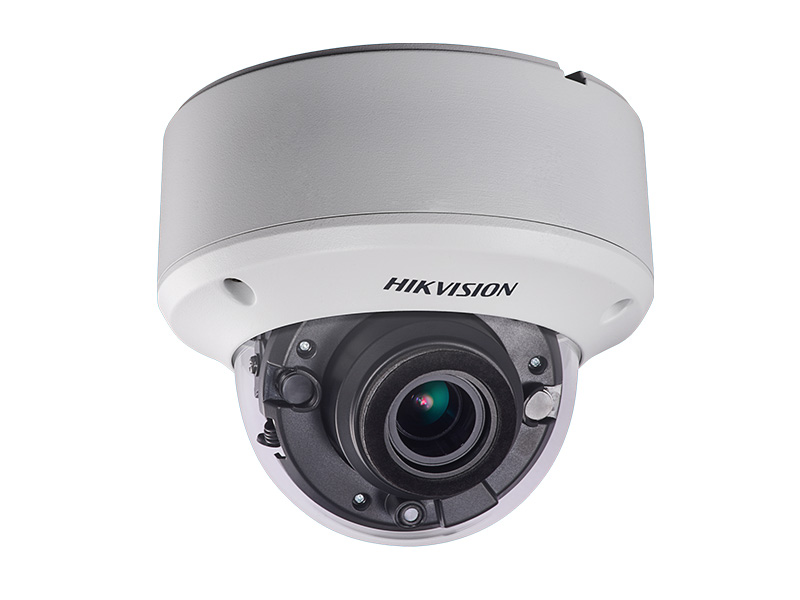

Hikvision DS 2CE56D7T AVPIT3Z AHD Dome Kamera
Özellikler
- 2 Megapixel high-performance CMOS
- Analog HD output, up to 1080P resolution
- 2.8-12mm motorized varifocal lens
- True Day/Night
- OSD menu, DNR, Smart IR
- True WDR, up to 120dB
- EXIR technology, up to 40m IR distance
- IP66 weatherproof & vandal proof
- Up the Coax(HIKVISION-C)
Teknik Özellikler
| Camera | |
| Image Sensor | 2MP CMOS Image Sensor |
| Signal System | PAL/NTSC |
| Effective Pixels | 1928(H)*1088(V) |
| Min. Illumination | 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR |
| Shutter Time | 1/25(1/30) s to 1/50,000 s |
| Lens | Motorized VF lens; 2.8 - 12 mm |
| Angel of view: 35.1°-114.5° | |
| Lens Mount | φ14 |
| Adjustment Range | Pan: 0 - 355°, Tilt: 0 - 75°, Rotation: 0 - 355° |
| Day& Night | IR cut filter with auto switch |
| Wide Dynamic Range | 120dB |
| Video Frame Rate | 1080p@25fps/1080p@30fps |
| HD Video Output | 1 Analog HD output |
| Synchronization | Internal Synchronization |
| S/N Ratio | More than 62 dB |
| Up the Coax | Support |
| Menu | |
| Auto White Balance | Auto/MWB |
| BLC | Support |
| AGC | Support |
| Language | English/Chinese |
| Function | Wide Dynamic Range; Digital Noise reduction; Mirror; SMART IR |
| General | |
| Operating Conditions | -40 °C - 60 °C (-40 °F - 140 °F) |
| Humidity 90% or less (non-condensing) | |
| Power Supply | 12 VDC±15% |
| -A: 12 VDC±15%, 24 VAC±15% | |
| Power Consumption | Max. 4.5W |
| -A: Max. 6.5W | |
| Impact Protection | IK10. |
| Weather Proof | IP66 |
| IR Range | Up to 40m |
| Communication | Up the coax |
| Protocol: HIKVISION-C(Coaxitron) | |
| Dimension | φ145.2mm×124.1mm (φ5.72”×4.89”) |
| Weight | 1600g ( 3.53lb) |
Hikvision DS 2CE56D7T AVPIT3Z AHD Dome Kamera Pdf Dosyası807.61 KB
Teknik Kısa
Çözünürlük :
2MP (1080P)
