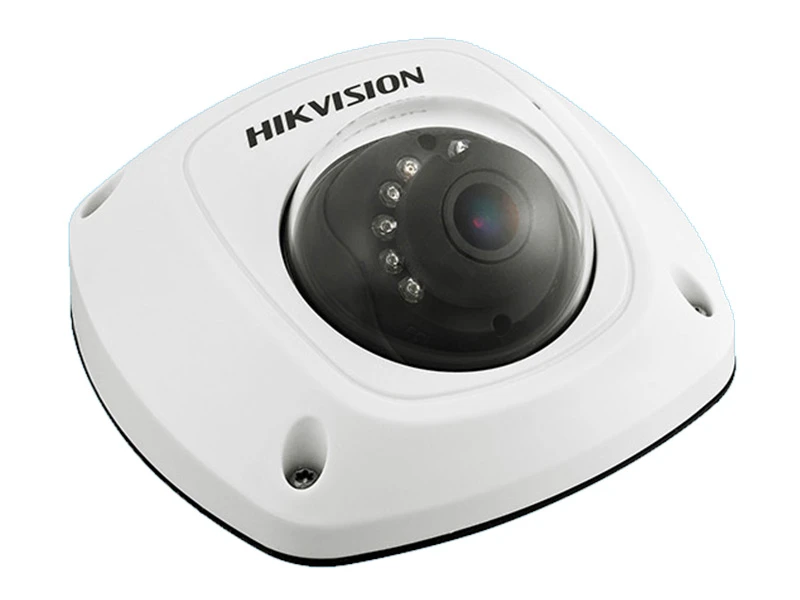

Hikvision DS 2CE56D8T IRS AHD Dome Kamera
Özellikler
Teknik Özellikler
| Camera | |
| Image Sensor | 2MP CMOS Image Sensor |
| Signal System | PAL/NTSC |
| Effective Pixels | 1920(H)*1080(V) |
| Shutter Time | 1/25(1/30) s to 1/50,000 s |
| Lens Mount | M12 |
| Adjustment Range | Pan: -30° to 30°, Tilt: 0° to 80°, Rotate: -180° to 180° |
| Day& Night | IR cut filter with auto switch |
| Wide Dynamic Range | 120dB |
| Video Frame Rate | PAL: 1080p@25fps |
| NTSC: 1080p@30fps | |
| HD Video Output | 1 Analog HD output |
| Synchronization | Internal Synchronization |
| Up the Coax | Support |
| Menu | |
| D/N Mode | Auto / Color / B/W |
| Auto White Balance | Auto / Manual |
| Motion Detection | 4 programmable motion areas |
| AGC | Support |
| Language | English/Chinese |
| General | |
| Operating Conditions | -40 °C - 60 °C (-40 °F - 140 °F) |
| Humidity 90% or less (non-condensing) | |
| Power Supply | 12 VDC±30% |
| IR Range | Up to 20m |
| Communication | Up the coax |
| Protocol: HIKVISION-C(Coaxitron) | |
| Dimension | 97 mm × 99.5 mm × 46.6 mm (3.82" × 3.92" × 1.83") |
| Weight | Approx. 300 g (0.66 lb.) |
Hikvision DS 2CE56D8T IRS AHD Dome Kamera Pdf Dosyası791.75 KB
Hikvision DS 2CE56D8T IRS AHD Dome Kamera Kullanıcı Kılavuzu (ing) Pdf Dosyası729.17 KB
Teknik Kısa
Çözünürlük : 2MP (1080P)
