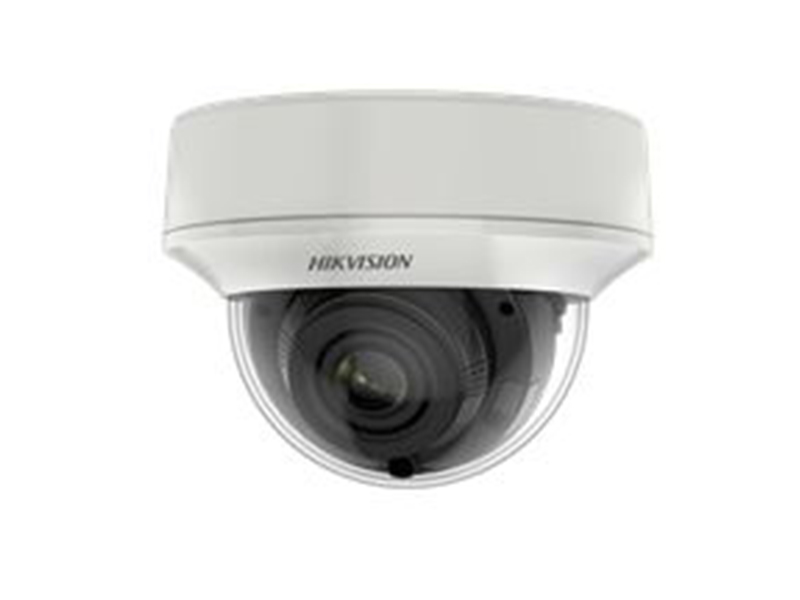

Hikvision DS 2CE5AU7T (A)VPIT3ZF AHD Dome Kamera
Özellikler
Teknik Özellikler
| Camera | |
| Image Sensor | 8.29 MP high performance CMOS |
| Signal System | PAL/NTSC |
| Effective Pixels | 3840 (H) × 2160 (V) |
| Min. Illumination | Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/12.5 s to 1/50,000 s NTSC: 1/15 s to 1/50,000 s |
| Lens | 2.7 mm to 13.5 mm motorized vari-focal lens |
| Lens Mount | φ14 |
| Adjustment Range | Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355° |
| Day& Night | IR cut filter |
| Video Frame Rate | TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps,2MP@30fps;CVI: 8MP@12.5fps, 8MP@15fps;AHD: 5MP@20fps;CVBS: 960H P/N |
| Synchronization | Internal Synchronization |
| Lens | |
| Horizontal Field of View | 108.1° to 45.6° |
| Menu | |
| D/N Mode | Auto/Color/BW (Black and White) |
| BLC | Support |
| AGC | Support |
| Function | Brightness, Sharpness, 3D DNR, Mirror, Smart IR |
| Interface | |
| Video Out | 1 HD analog output |
| General | |
| Material | Metal |
| Operating Conditions | -40 °C - 60 °C (-40 °F - 140 °F) |
| Humidity 90% or less (non-condensing) | |
| Power Supply | 9 VDC to 15 VDC ( -A: 9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC) |
| Impact Protection | IK10. |
| Weather Proof | IP67 |
| IR Range | Up to 60m |
| Communication | Up the coax |
| Protocol: Pelco-C(CVBS output), HIKVISION-C(TVI output) | |
| Dimension | Ø 145 mm × 111.3 mm (Ø 5.69" × 4.37") |
| Weight | Approx. 860 g (1.90lb.) |
Hikvision DS 2CE5AU7T (A)VPIT3ZF AHD Dome Kamera Pdf Dosyası993.53 KB
