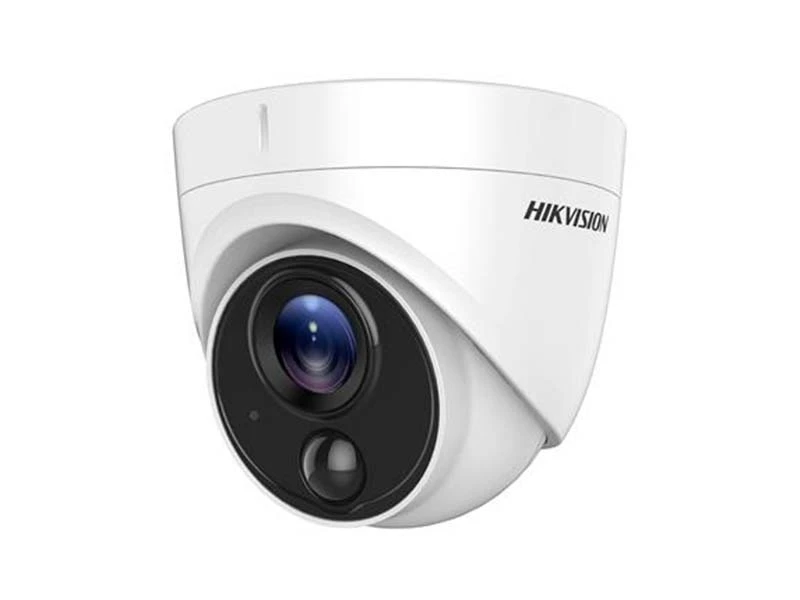

Hikvision DS 2CE71D8T PIRL HD TVI Dome Kamera
Özellikler
Teknik Özellikler
| Camera | |
| Slow Shutter | Max. 16 times |
| WDR (Wide Dynamic Range) | > 120 dB |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| Image Sensor | 2.0 megapixel progressive scan CMOS |
| Signal System | PAL/NTSC |
| Min. Illumination | Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50, 000 s |
| NTSC: 1/30 s to 1/50, 000 s | |
| Lens | 2.8 mm, 3.6 mm fixed focal lens |
| Day& Night | IR cut filter |
| Horizontal Resolution | 1920 (H) × 1080 (V) |
| Synchronization | Internal Synchronization |
| Lens | |
| Horizontal Field of View | 103.5°(2.8 mm), 82.6°(3.6 mm) |
| Menu | |
| 3D DNR (Digital Noise Reduction) | Level 1 to 10 |
| Backlight Compensation | WDR/BLC/OFF |
| White Light | Alarm/Off |
| D/N Mode | Auto/Color/BW (Black and White) |
| Auto White Balance | ATW/MANUAL |
| Private Mask | ON/OFF, 4 programmable privacy masks |
| Motion Detection: | 4 programmable motion areas |
| AGC | Yes |
| Language | English/Chinese |
| Interface | |
| Video Out | 1 HD analog output |
| General | |
| Visual Alarm | Yes |
| PIR Range | Angle: 110°, Range:11 m |
| Material | Enclosure: Plastic |
| Main body: Metal | |
| Mounting base: Plastic | |
| Ingress Protection | IP67 |
| Power Supply | 12 VDC±25% |
| IR Range | Up to 20m |
| Communication | Up the coax, Protocol: HIKVISION-C (TVI output) |
| Dimension | 109.8 mm × 89.75 mm (? 4.32" × 3.53" ) |
| Weight | Approx. 310 g (0.68 lb.) |
Hikvision DS 2CE71D8T PIRL HD TVI Dome Kamera Pdf Dosyası852.32 KB
