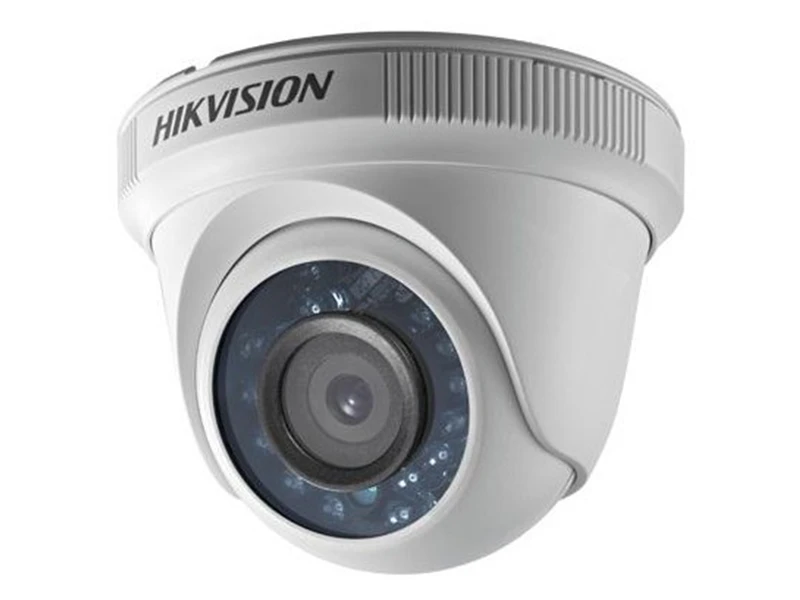

Haikon DS 2CE56D0T IRPF HD TVI Dome Kamera
Özellikler
- 2 Megapixel high-performance CMOS
- Analog HD output, up to 1080P resolution
- True Day/Night, Smart IR
- Up to 20m IR distance
- OSD menu
- Up the Coax(HIKVISION-C Protocol)
- Switchable TVI/AHD/CVI/CVBS
Teknik Özellikler
| Camera | |
| Image Sensor: | 2MP CMOS Image Sensor |
| Signal System: | PAL/NTSC |
| Effective Pixels: | 1930(H) × 1088(V) |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s |
| Lens Mount: | M12 |
| Adjustment Range: | Pan: - 360°, Tilt: - 75°, Rotation: - 360° |
| Day& Night: | IR cut filter with auto switch |
| Video Frame Rate: | 1080p@25fps/1080p@30fps |
| HD Video Output: | 1 Analog HD output |
| Synchronization: | Internal Synchronization |
| S/N Ratio: | More than 62 dB |
| Up the Coax: | Support |
| Menu | |
| Anti-flicker: | On/ Off |
| General | |
| Operating Conditions: | -40 °C - 60 °C (-40 °F - 140 °F) |
| Humidity 90% or less (non-condensing) | |
| Power Supply: | 12 VDC±15% |
| IR Range: | Up to 20m |
| Communication : | Up the coax |
| Protocol: HIKVISION-C(Coaxitron) | |
| Dimension: | Φ89.5 × 69.8 mm(Φ3.52” × 2.75”) |
| Weight: | 250 g |
Haikon DS 2CE56D0T IRPF HD TVI Dome Kamera Pdf Dosyası677.98 KB
